D-Link DES-3326S Layer 3 Switch
DES-332GS 1-port GBIC-Based Gigabit Ethernet Switch and stacking Module

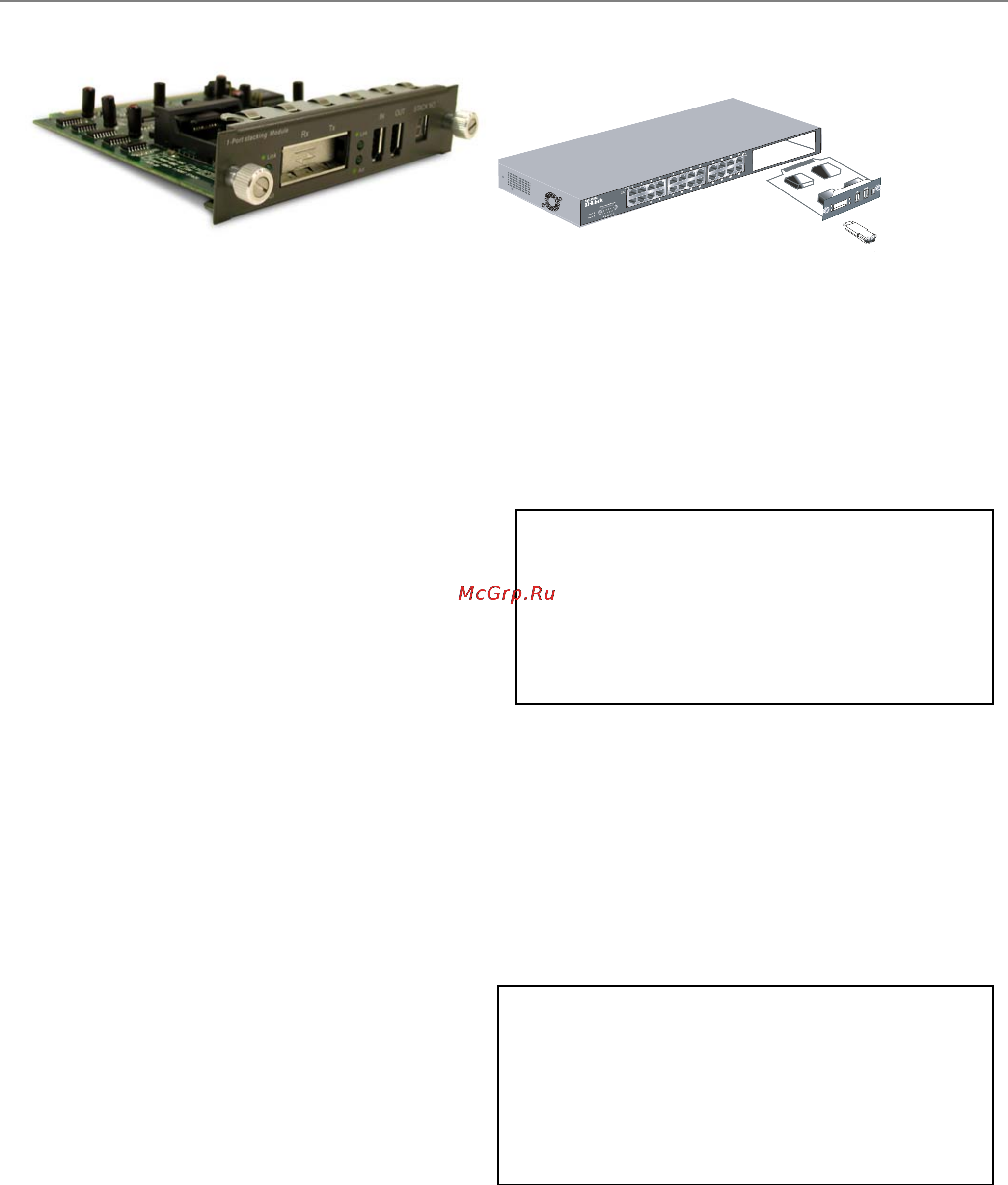

Figure 1 - 12. Stacking Module with one GBIC port
Port Functions
• 1 GBIC-Based Gigabit Ethernet port
• Allows multi-mode fiber optic connections of up to 550 m (SX and LX) and single-mode fiber optic
connections of up to 5 km (LX only). GBIC modules are available in –SX and –LX fiber optic media.
• IEEE 802.3z 1000BASE-SX compliance
• Supports Full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
Stacking Port Function
• 1 transmitting port and 1 receiving port
• IEEE1394.b compliance
• Forwarding rate up to 965Mbps
DEM-320GS 1-port GBIC-Based Gigabit Ethernet Switch and stacking Module
Port Functions
• 1 GBIC-Based Gigabit Ethernet port
• Allows multi-mode fiber optic connections of up to 550 m (SX and LX) and single-mode fiber optic
connections of up to 5 km (LX only). GBIC modules are available in –SX and –LX fiber optic media.
• IEEE 802.3z 1000BASE-SX compliance
• Supports Full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
The optional Stacking Module allows up to eight DES-3326S
Switches to be interconnected via their individual stacking
modules. This forms an eight-Switch stack that can then be
managed and configured as thought the entire stack were a single
Switch. The Switch stack is then accessed through a single IP
address or alternatively, through the master Switch’s serial por
t
(via the management station’s console and the Switch’s
Command Line Interface).
The stacking ports are marked IN and OUT. The IEEE 1394
compliant cable must be connected from an IN
p
ort on one
Switch to an OUT
p
ort on the next Switch in the stack. The
last two Switches (at the top and bottom of the stack) mus
t
also be connected from the IN port on one Switch to the OUT
port on the other Switch. In this way, a loop is made such tha
t
all of the Switches in the Switch stack have the IN stacking
port connected to another Switch’s OUT stacking port.
Stacking Port Function
• 1 transmitting port and 1 receiving port
• IEEE1394.b compliance
• Forwarding rate up to 965Mbps
LED Indicators*
Link
Off – No Link
Solid Green – Link
Active
Off – No Activity
Blinking Green – Activity
*See Stacking LED Indicators on for details on the stacking port display.
13
