TL-WA500G 54M Wireless Access Point User Guide

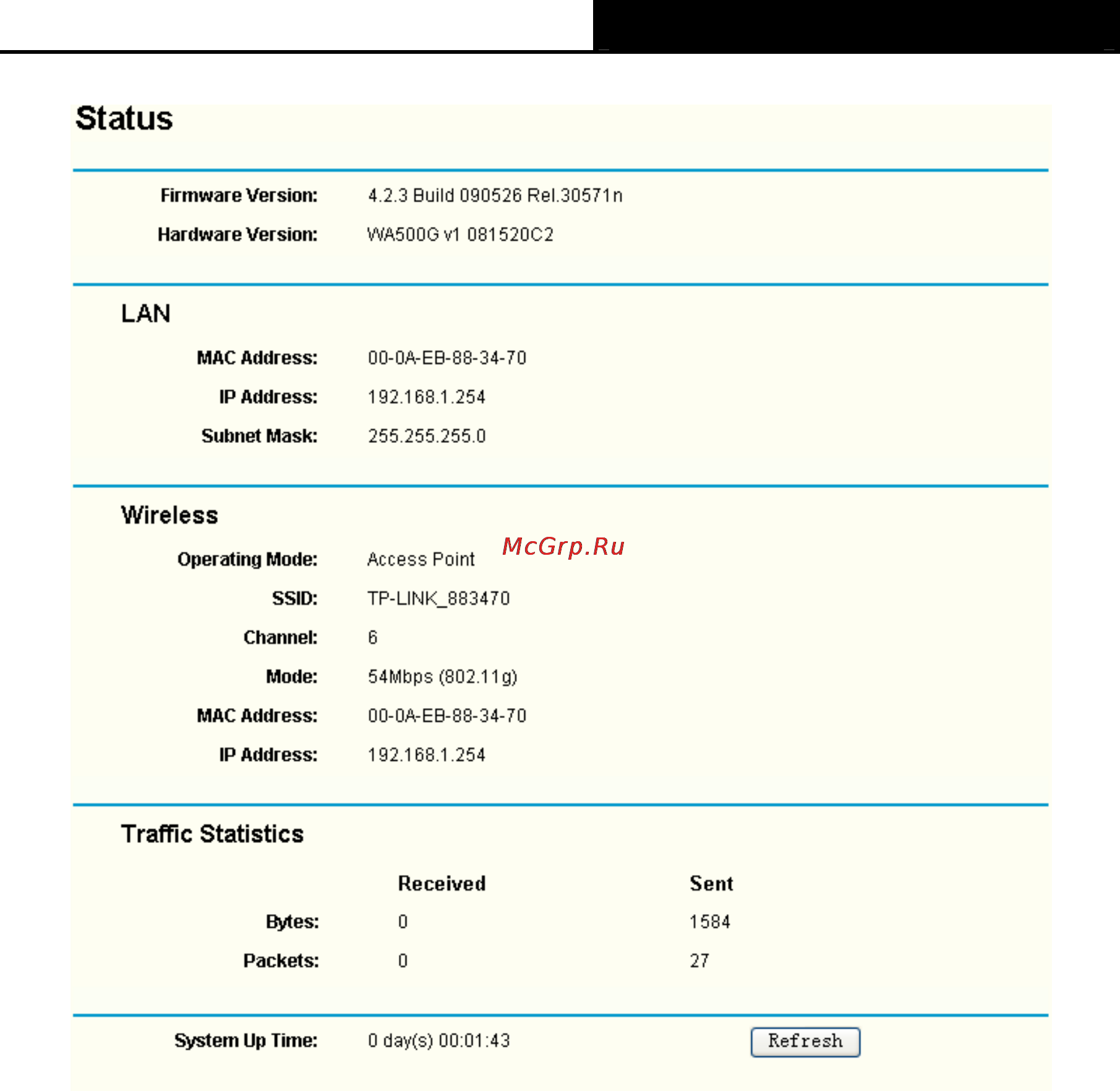

Figure 4-3 AP Status
¾ Firmware Version - This field displays the current firmware version of the AP.
¾ Hardware Version - This field displays the current hardware version of the AP
¾ LAN - This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
¾ Wireless - This field displays basic information or status for wireless function, including
Operating Mode, SSID, Channel, Mode, MAC Address and IP Address.
¾ Traffic Statistics - This field displays the AP's traffic statistics.
¾ System Up Time - This field displays the run time of the AP since it's powered on or reset.
) Note:
If you select client mode in Figure 4-7 the wireless status in Figure 4-3 will change, as it showed
below:
14
