Appendix (Continued)

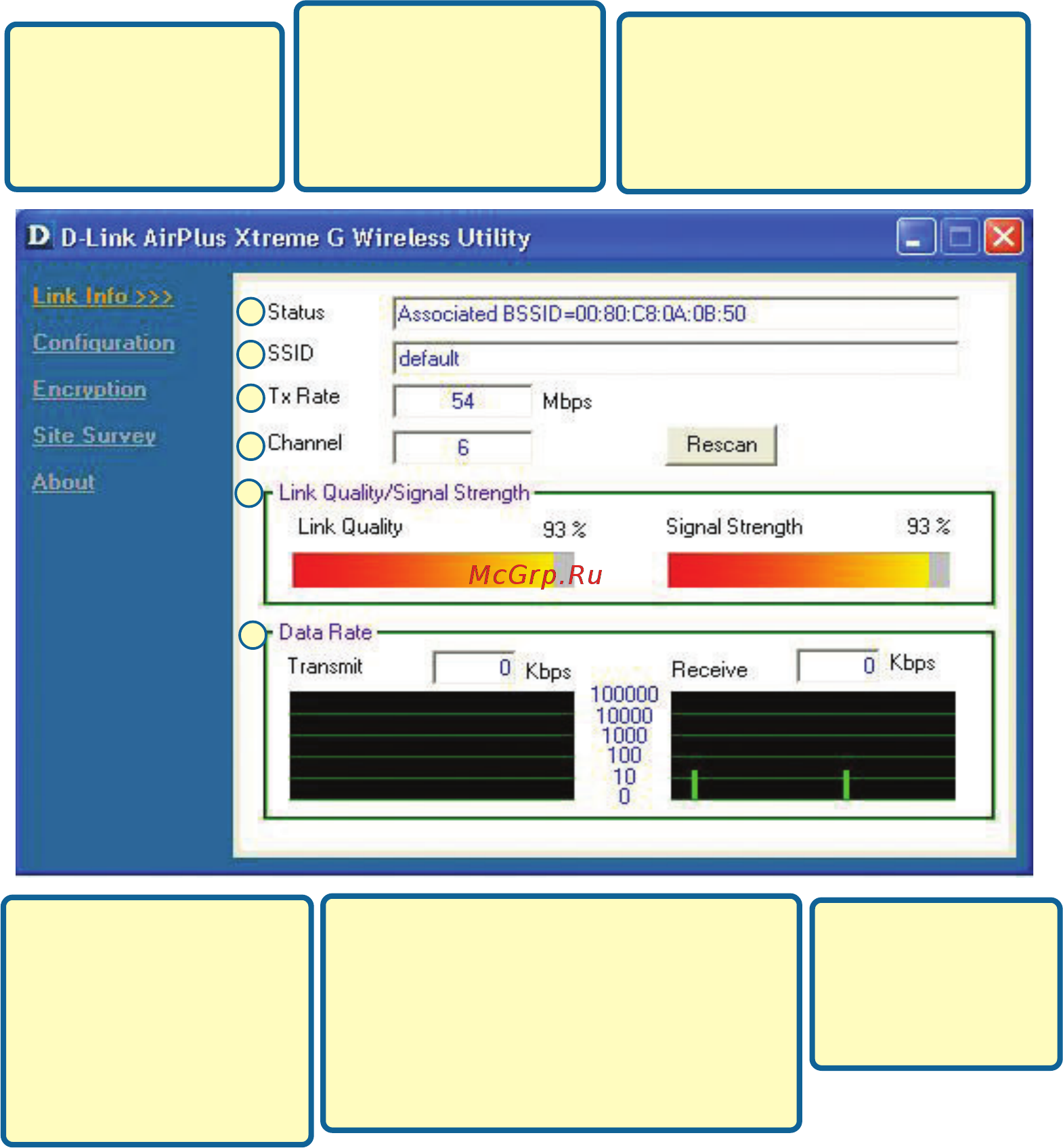

Using the Configuration Utility
A. Status: Displays the
MAC Address of the
Access Point that is
associated with the
DWL-G520.
B. SSID
: The Service Set
Identifier is the name
assigned to the wireless
network. The factory
SSID setting is set to
default.
C. TxRate: The default setting is
Auto; meaning, TxRate settings
are automatically determined by
the DWL-G520 depending on the
distance from the access point.
E. Link Quality / Signal Strength:
Displays the Link Quality for the DWL-
G520 wireless connection to the access
point. The Signal Strength represents
the wireless signal between the access
point and the DWL-G520. The percent-
age coincides with the graphical bar.
D. Channel: Displays the
channel information. By
default, the channel is set
to 6. Please note that the
DWL-G520 will automati-
cally adjust channel
depending on the Access
Point.
F. Data Rate:
Graphically displays
the statistics of data
transmitted and
received.
E
C
D
F
B
A
