Dell Optiplex 5250-8398 Черный [36/78] Intrusion switch

3 Connect the system fan cable to the connector on the system board.

4 Install the:

a VESA mount bracket

b power supply unit

c system board shield

d speaker cover

e cable cover

f back cover

g stand

5 Follow the procedure in After working inside your computer.

Intrusion switch

Removing the intrusion switch

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a stand

b back cover

c cable cover

d speaker cover

e system board shield

f power supply unit

g VESA mount bracket

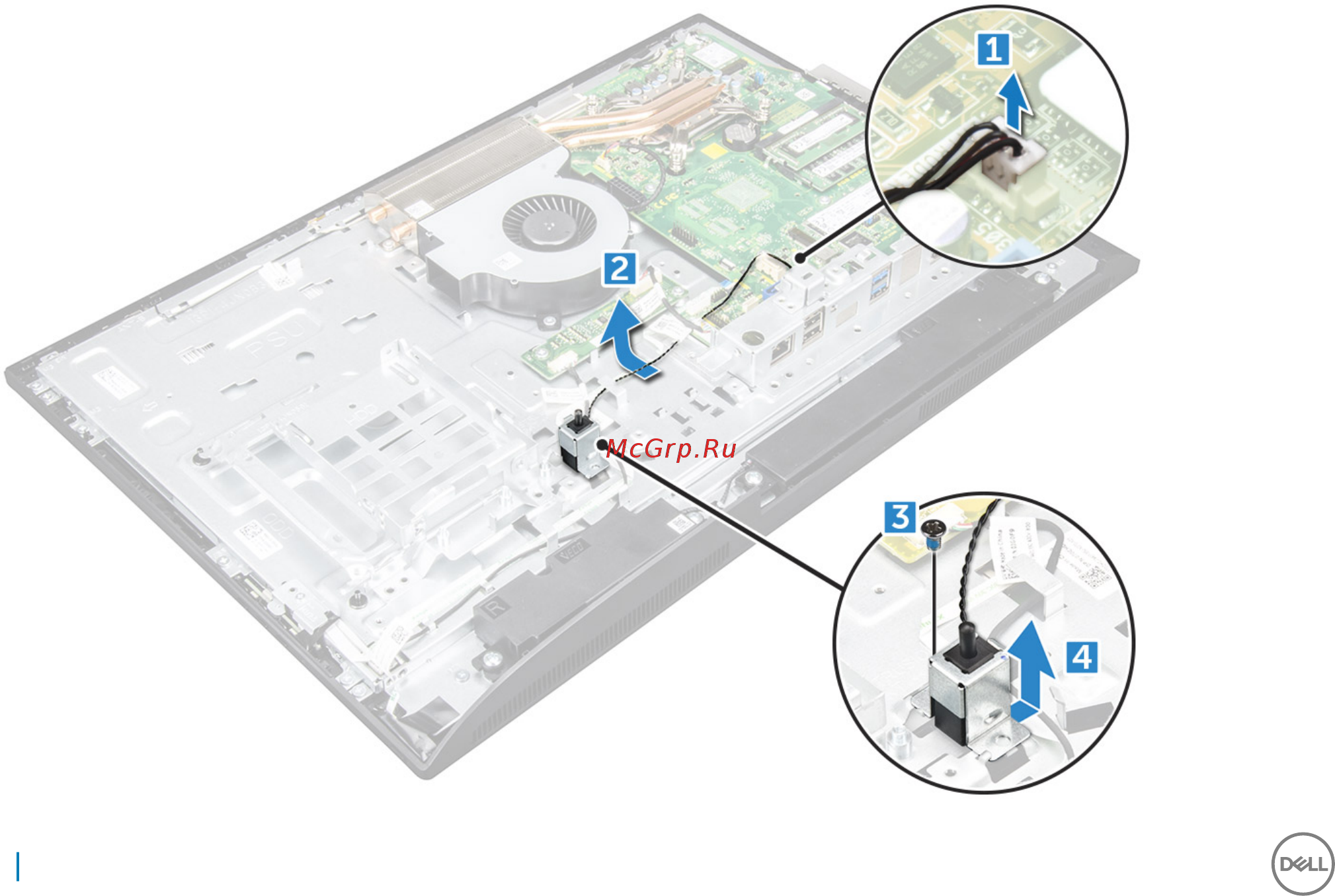

3 To remove the intrusion switch:

a Disconnect the intrusion switch cable from the connector on the system board [1].

b Unthread the intrusion switch cable from the retention clips on the computer [2].

c Remove the screw that secures the intrusion switch to the computer [3].

d Slide and lift the intrusion switch away from the computer [4].

36 Извлечение и установка компонентов
