2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory

radio mounting brackets.

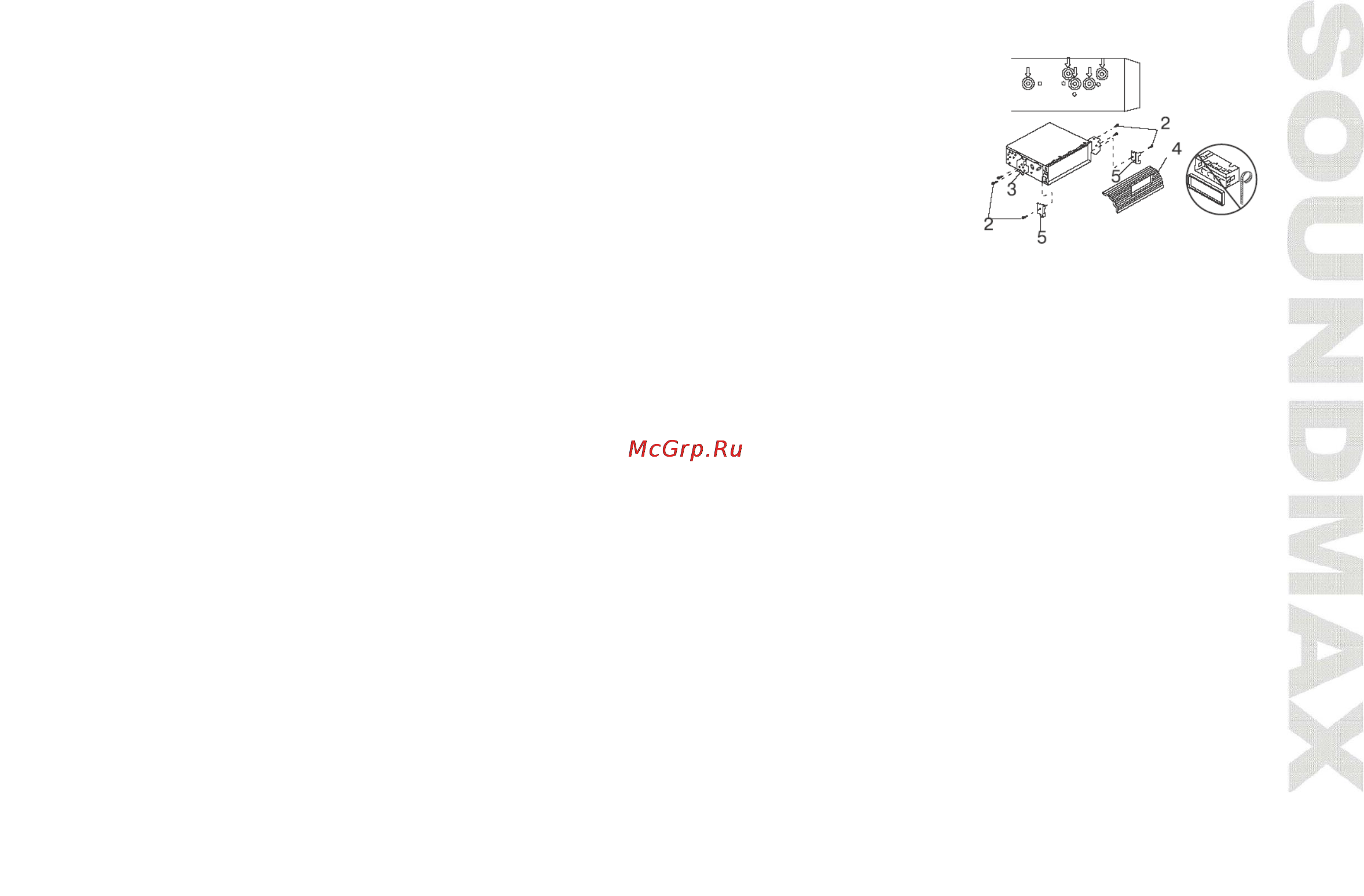

1. Select a position in which the screw holes of the brackets (3) are aligned with

the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of

installation.

Installing the front panel

Insert the left side of the panel into the grooves in the left part of the body. Then press on the right part of

the panel until a click. Ensure the panel is fixed properly, otherwise error symbols may be displayed or some

buttons will not function.

To detach the front panel, press OPEN button. The right side of the panel will be released from the fixing

mechanism. Then carefully detach the left part of the panel off the body grooves.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away

when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with

you.

Cautions: The control panel can easily be damaged by shocks. After removing it, place it in a protective case

and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be

careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in

isopropyl alcohol to clean the socket on the back of the control panel.
