Kospel Primus EPJ 5,5 [16/32] Installation assembly

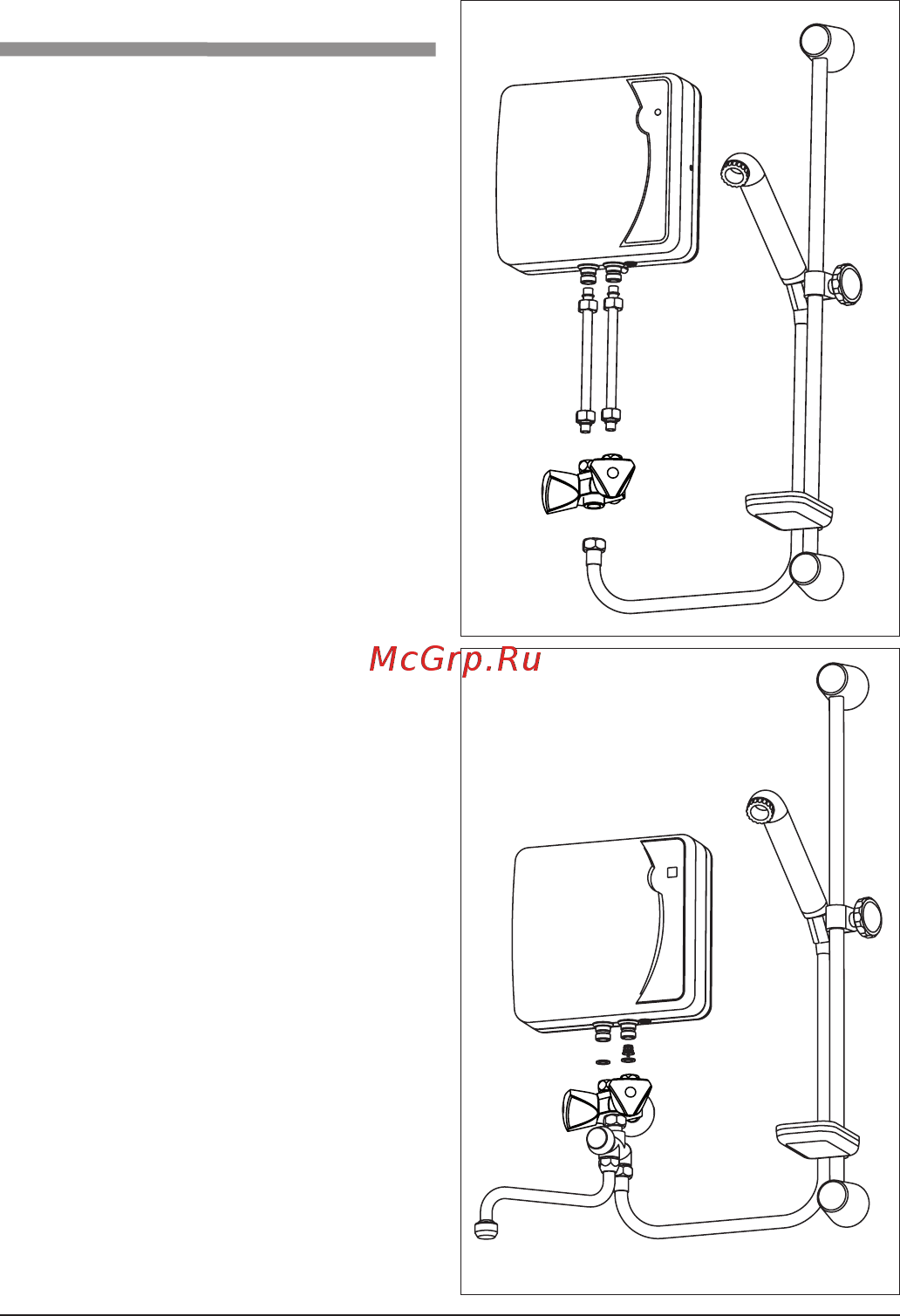

Installation - Assembly

1. Fixthemixeronwatersupplypipe.

2. Undothetwoscrewsandtakethe

frontcaseoff.

3. Connectthemixerbytheuseofmetal

pipeswiththeheaterinordertomark

thexingpointsforthescrews.

4. Drill holes at the marked places,

insertthescrewsinthere.

5. Insertelectricwiresintotheheater

throughthestufngbox.

6. Installtheheaterontothewall.

7. Connectthemixerandtheshower

setwiththeheater.

8. Connectelectricsupplies.

9. Fixthefrontcaseandscrewitup.

10. Installtheshowerholder.

11. Letthemainswaterpressuretoget

tothemixer.

12. Checkconnectionsforleaks.

13. Venttheinstallation.

14. Switchelectricsupplieson(fuses).

Electric installation should be

equipped with residual current protec-

tive devices and other solutions which

will ensure disconnecting the heater

from the source of power (intervals

between all their poles should not be

less than 3 mm).

EPJ.P

EPJ.P...u
