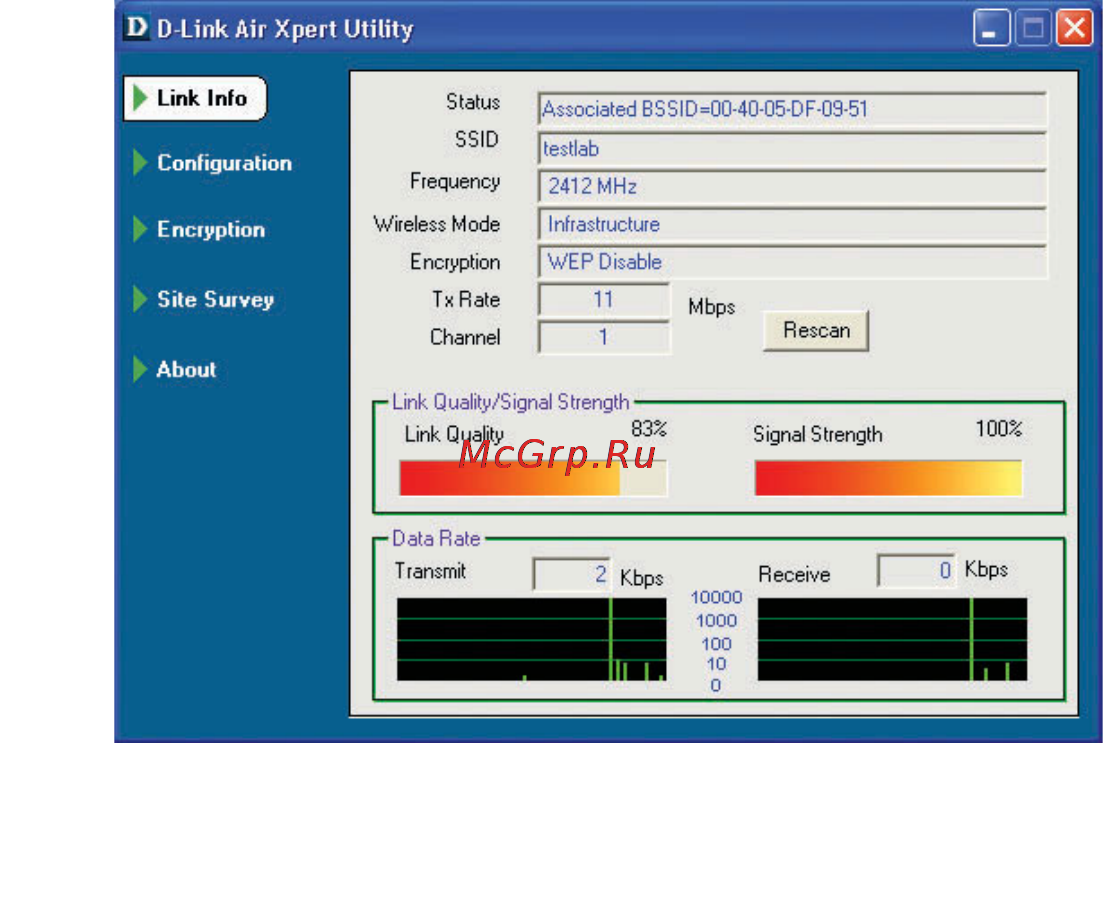

D-Link DWL-AG650 [14/43] Configuration utility link info

Status: Displays the

MAC Address of the

Access Point that is

associated with the

DWL-AG650.

SSID: The Service Set

Identifier is the name

assigned to the

wireless network. The

factory SSID setting is

set to default.

Frequency: The DWL-

AG650 is a dual-band

wireless cardbus adapter. In this instance the 2412 MHz indicates that the

DWL-AG650 is communicating in the 2.4GHz band.

Wireless Mode: Either Infrastructure or Ad-Hoc will be displayed here.

Encryption: You can see if WEP is enabled or disabled here

TxRate: The default setting is Auto; TxRate settings are automatically

determined by the DWL-AG650 depending on the distance from the access

point at this default setting.

Channel: Displays the channel information. By default, the channel is set to

Auto and selection is automatically determined by the DWL-AG650.

Link Quality / Signal Strength: Displays the Link Quality for the

DWL-AG650 wireless connection to the access point. The Signal Strength

represents the wireless signal between the access point and the

DWL-AG650. The percentage coincides with the graphical bar.

Data Rate: Displays the statistics of data transmitted and received.

Configuration Utility

Link Info
