D-Link DWL-AG650 [15/43] Configuration utility

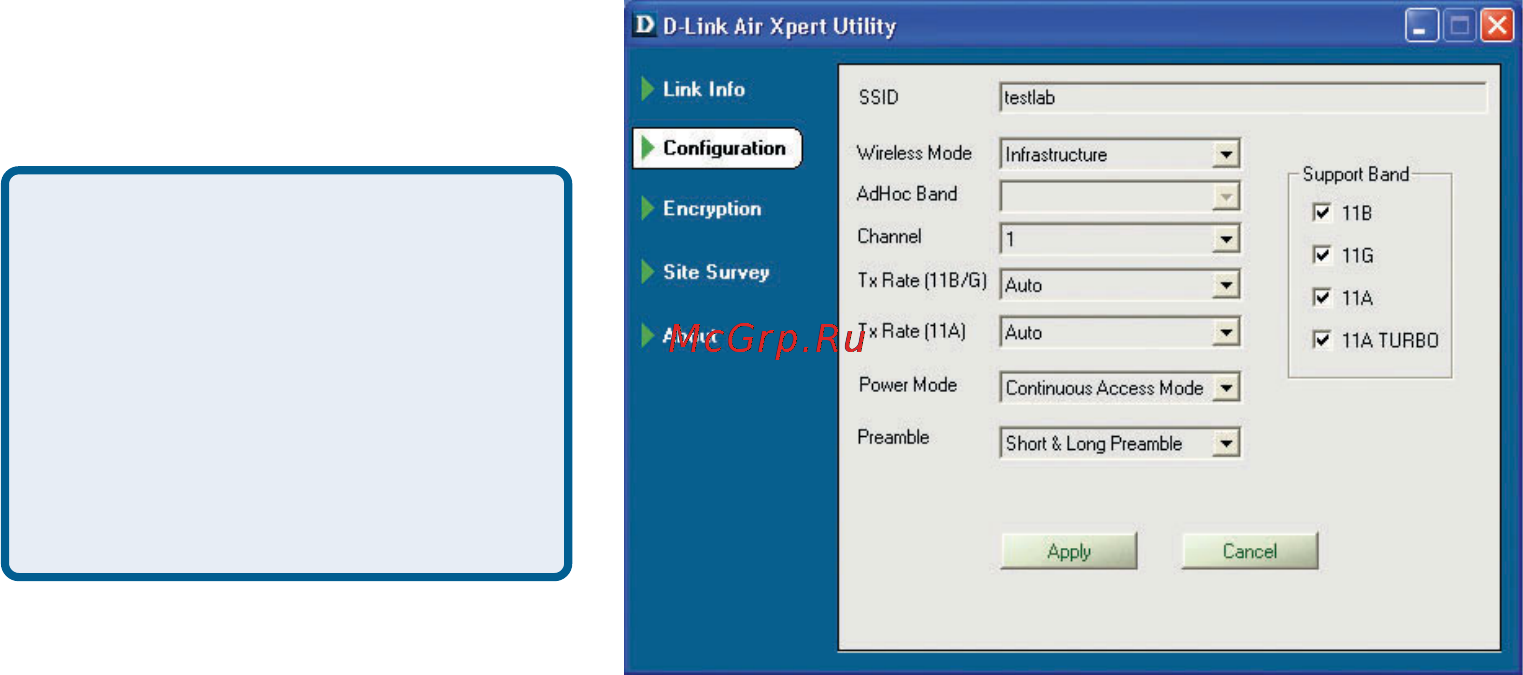

SSID - (Service Set Identifier) is a name that identifies a wireless network. Access

Points and wireless clients attempting to connect to a specific WLAN (Wireless Local

Area Network) must use the same SSID. The default setting is default.

Wireless Mode - Click on the pull-down menu; select from the following options:

Infrastructure - connecting the WLAN using an Access Point. (The default

setting).

Ad-Hoc – wireless mode used when connecting directly to a computer equipped

with a wireless adapter in a peer-to-peer environment.

Ad-Hoc Band - If you have selected Ad-Hoc Wireless mode, select the standard for

your Ad-Hoc communication: 11,11A,11B, or 11G

Channel – The default channel setting is channel Auto. The DWL-AG650 will

automatically select the channel to match the channel setting for the selected Access

Point. In Ad-Hoc mode, the channel must be manually set to the same channel for

each wireless adapter.

TX Rate (11B/G) - Select the transmission rate on the 802.11B/G network. Auto is

the default setting. TX rates are automatically determined by the DWL-AG650

depending on the distance from the access point.

TX Rate (11A) - Select the transmission rate on the 802.11A network. Auto is the

default setting.

Power Mode – Select from three modes:

Continuous Access Mode-this default setting consumes the most power

Maximum Power Save-this setting consumes the least power

Power Save- this setting consumes a moderate amount of power

If any changes are made to the configuration of the wireless adapter, click Apply

to save the changes.

Configuration Utility

D-Link AirPlus DWL-650+ 2.4GHz Wireless Cardbus Adapter

Configuration

Support Band

Preamble - Auto is the default setting. The Preamble defines the length of the CRC

block (Cyclic Redundancy Check is a common technique for detecting data

transmission errors) for communication between the Access Point and the wireless

Network adapters. Note: High network traffic areas should use the shorter preamble

type.

By default, all boxes are

checked. Make sure that the

boxes are checked that corre-

spond to the networks to which

you wish to view and/or connect.

You may keep all the boxes se-

lected as shown if you wish.
