12
5. Using the Configuration Menu
Whenever you want to configure your network or the DI-614+, you can
access the Configuration Utility by opening the web-browser and typing in
the IP Address of the DI-614+. The DI-614+ default IP Address is shown
below:
(The IP Address shown in the example above is the default setting. If you have changed the
IP Address of the DI-614+ to conform to a network, then input that IP Address in the web
browser, instead of the default IP Address shown.)
Setup Wizard
The Setup Wizard page is the first page that appears when logging into the
web-based management interface. The Setup Wizard is a utility used to
quickly configure the DI-614+. It will guide you through four quick and basic
steps to help you connect to your ISP. You will be connected to your ISP
(Internet Service Provider) and have Internet access within minutes.

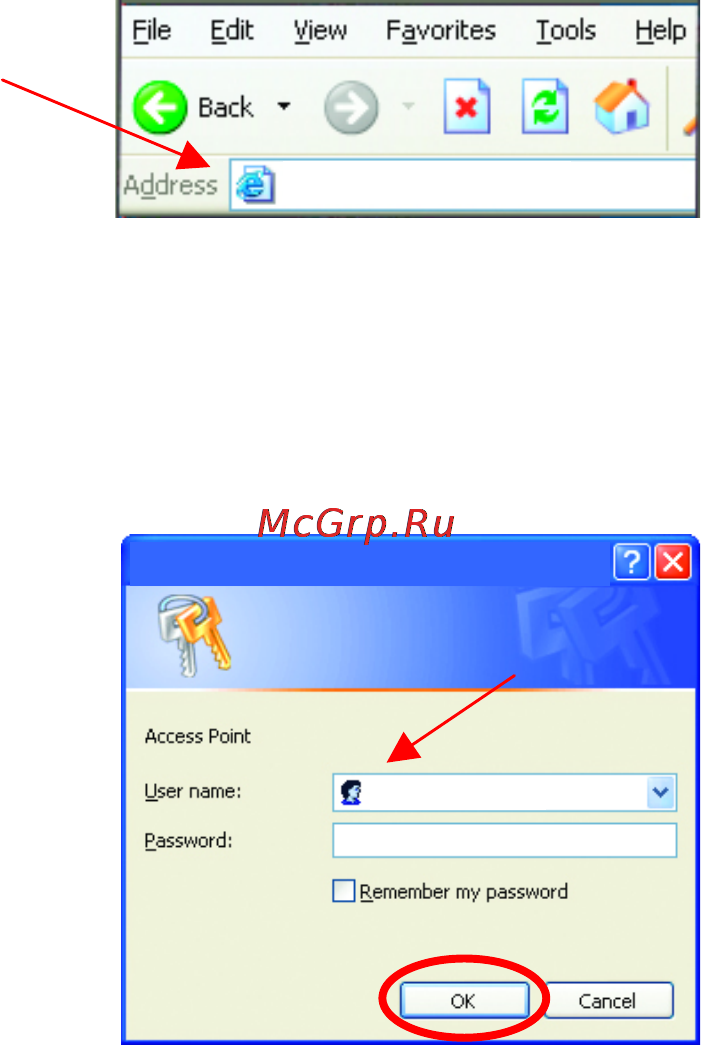

• Open the web browser
• Type in the IP Address of
the Access Point
• Type admin in the
User Name field
(lower case)
• Leave the
Password blank
• Click OK
http://192.168.0.1
admin
Connect to 192.168.0.1
