The DI-614+ is also capable of port-redirection meaning incoming traffic to a
particular port may be redirected to a different port on the server computer.

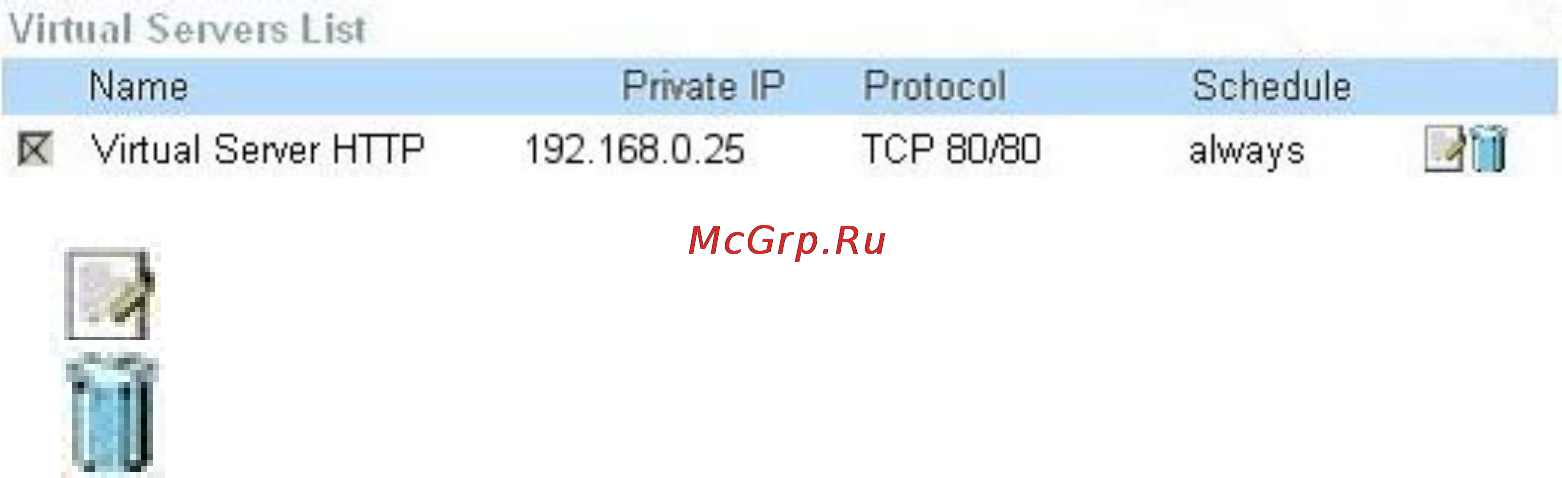

Each virtual services that are created will be listed at the bottom of the
screen in the Virtual Servers List. There are already pre-defined virtual
services already in the table. You may use them by enabling them and
assigning the server IP to use that particular virtual service.
Name: The name referencing the virtual service.
Private IP: The server computer in the LAN (Local Area Network) that will be
providing the virtual services.
Private Port: The port number of the service used by the Private IP
computer.
Protocol Type: The protocol used for the virtual service.
Public Port: The port number on the WAN side that will be used to access
the virtual service.
Schedule: The schedule of time when the virtual service will be enabled.
The schedule may be set to Always, which will allow the particular service to
always be enabled. If it is set to Time, select the time frame for the service to
be enabled. If the system time is outside of the scheduled time, the service
will be disabled.
Example #1:
If you have a Web server that you wanted Internet users to access at all times, you
would need to enable it. Web (HTTP) server is on LAN (Local Area Network)
computer 192.168.0.25. HTTP uses port 80, TCP.
Name: Web Server
Private IP: 192.168.0.25
Protocol Type: TCP
Private Port: 80
Public Port: 80
Schedule: always
Click on this icon to edit the virtual service.
Click on this icon to delete the virtual service.
