Gigabyte GA-MA790FXT-UD5P [23/112] 9 onboard switches

Hardware Installation- 23 -

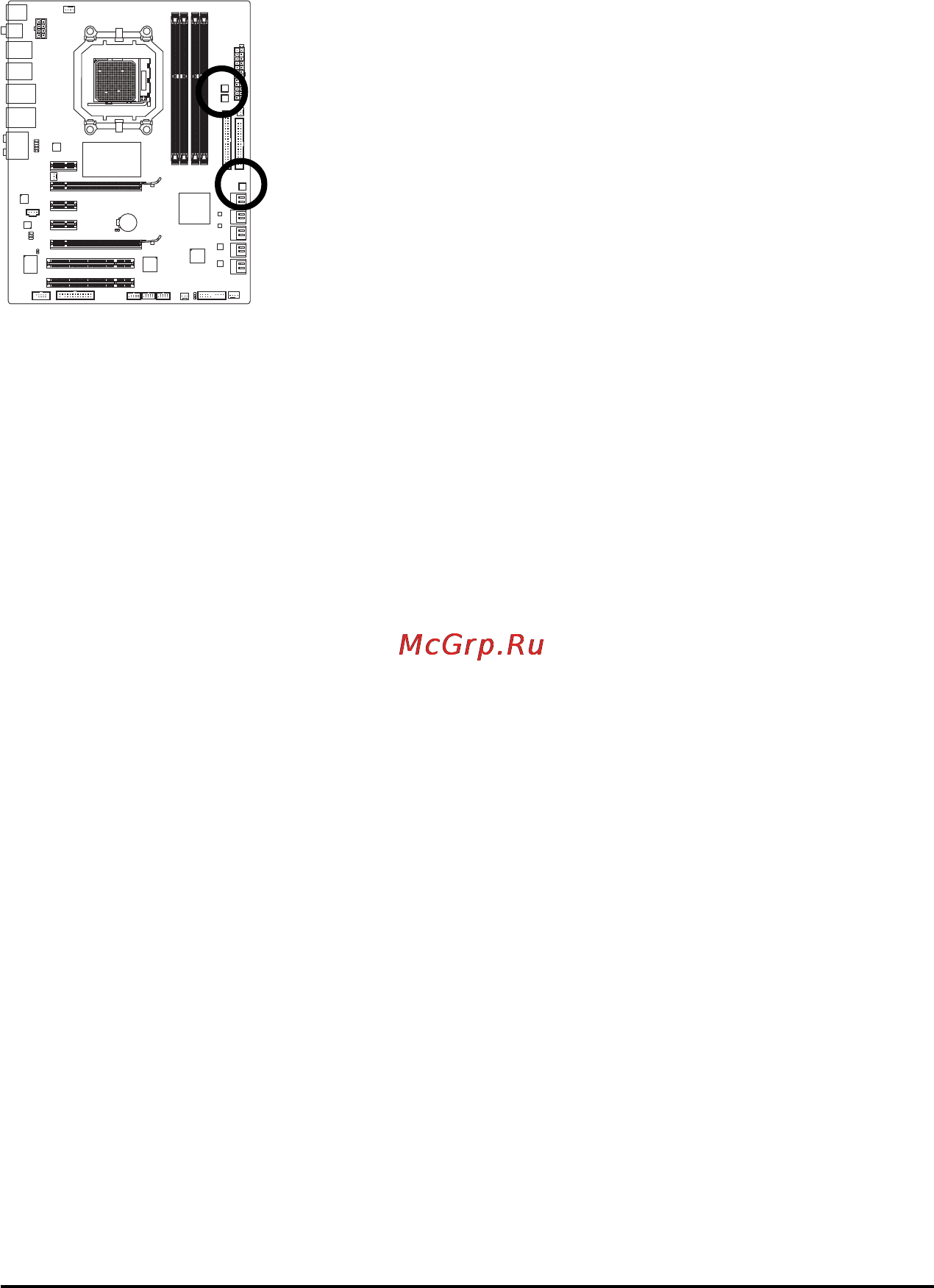

1-9 Onboard Switches

Quick Switches

This motherboard has 3 quick switches: power switch, reset switch and clearing CMOS switch,

allowing users to quickly turn on/off or reset the system or clear the CMOS values.

PW_SW: Power switch

RST_SW: Reset switch

CMOS_SW: Clearing CMOS switch

Содержание

Ga ma790fxt ud5p 1
User s manual 1
Copyright 3
Disclaimer 3
Documentation classifications 3
Identifying your motherboard revision 3
Block diagram 8 chapter 1 hardware installation 9 4
Box contents 6 4
Chapter 2 bios setup 37 4
Optional items 6 ga ma790fxt ud5p motherboard layout 7 4
Table of contents 4
Chapter 3 drivers installation 63 5
Chapter 4 unique features 67 5
Chapter 5 appendix 81 5
Box contents 6
Optional items 6
Ga ma790fxt ud5p 7
Ga ma790fxt ud5p motherboard layout 7
Block diagram 8
1 installation precautions 9
Chapter 1 hardware installation 9
2 product specifications 10
3 1 installing the cpu 13
3 installing the cpu and cpu cooler 13
3 2 installing the cpu cooler 15
4 1 dual channel memory configuration 16
4 installing the memory 16
4 2 installing a memory 17
5 installing an expansion card 18
6 configuring an ati crossfire 19
System 19
7 installing the sata bracket 20
8 back panel connectors 21
Coaxial s pdif out connector 21
Ieee 1394a port 21
Optical s pdif out connector 21
Ps 2 keyboard and ps 2 mouse port 21
Rj 45 lan port 21
Usb port 21
Center subwoofer speaker out jack orange 22
Line in jack blue 22
Line out jack green 22
Mic in jack pink 22
Rear speaker out jack black 22
Side speaker out jack gray 22
9 onboard switches 23
Quick switches 23
10 internal connectors 24
2 atx_12v_2x4 atx 2x4 12v power connector and 2x12 main power connector 25
Hardware installation 25 25
To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system the power connectors are compatible with power supplies with 2x2 12v and 2x10 power connectors when using a power supply providing a 2x4 12v and a 2x12 power connector remove the protective covers from the 12v power connector and the main power connector on the motherboard do not insert the power supply cables into pins under the protective covers when using a power supply providing a 2x2 12v and a 2x10 power connector 25
With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 25
4 5 cpu_fan sys_fan1 sys_fan2 pwr_fan fan headers 26
Be sure to connect fan cables to the fan headers to prevent your cpu north bridge and system from overheating overheating may result in damage to the cpu north bridge or the system may hang these fan headers are not configuration jumper blocks do not place a jumper cap on the headers 26
Connect the north bridge fan cable to this header the fan header has a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation most fans are designed with color coded power connector wires a red power connector wire indicates a positive connec tion and requires a 12v voltage the black connector wire is the ground wire 26
Ga ma790fxt ud5p motherboard 26 26
Nb_fan north bridge fan header 26
The motherboard has a 4 pin cpu fan header cpu_fan a 3 pin sys_fan2 and a 4 pin sys_fan1 system fan headers and a 3 pin power fan header pwr_fan most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the motherboard supports cpu fan speed control which requires the use of a cpu fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 26
Fdd floppy disk drive connector 27
Ide ide connector 27
Sata2_0 1 2 3 4 5 sata 3gb s connectors controlled by amd sb750 blue 28
A raid 0 or raid 1 configuration requires two hard drives the two hard drives must be connected to either the gsata2_0 and gsata2_1 connectors as an array or to the gsata2_2 and gsata2_3 connectors 29
Gsata2_0 1 2 3 sata 3gb s connectors controlled by gigabyte sata2 jmb322 white 29
Hardware installation 29 29
Pwr_led system power led header 29
The sata connectors conform to sata 3gb s standard and are compatible with sata 1 gb s standard each sata connector supports a single sata device the gigabyte sata2 jmb322 controller supports raid 0 raid 1 and jbod refer to chapter 2 integrated peripherals and chapter 5 configuring sata hard drive s for instructions on configuring a raid array 29
This header can be used to connect a system power led on the chassis to indicate system power status the led is on when the system is operating the led keeps blinking when the system is in s1 sleep state the led is off when the system is in s3 s4 sleep state or powered off s5 29
Battery 30
F_panel front panel header 31
Cd_in cd in connector black 32
F_audio front panel audio header 32
Ga ma790fxt ud5p motherboard 32 32
The front panel audio header supports hd audio by default if your chassis provides an ac 97 front panel audio module refer to the instructions on how to activate ac 97 functioninality via the audio software in chapter 5 configuring 2 4 5 7 channel audio audio signals will be present on both of the front and back panel audio connections simultaneously if you want to mute the back panel audio only supported when using an hd front panel audio module refer to chapter 5 configuring 2 4 5 7 channel audio some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 32
The front panel audio header supports intel high definition audio hd and ac 97 audio you may connect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 32
You may connect the audio cable that came with your optical drive to the header 32
Do not plug the ieee 1394 bracket 2x5 pin cable into the usb header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb bracket 33
F_usb1 f_usb2 usb headers yellow 33
Hardware installation 33 33
Spdif_io s pdif in out header red 33
The headers conform to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer 33
This header supports digital s pdif in out via an optional s pdif in and out cable this header can connect to an audio device that supports digital audio out and an audio system that supports digital audio in for purchasing the optional s pdif in and out cable please contact the local dealer 33
Do not plug the usb bracket cable into the ieee 1394a header prior to installing the ieee 1394a bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the ieee 1394a bracket to connect an ieee 1394a device attach one end of the device cable to your computer and then attach the other end of the cable to the ieee 1394a device ensure that the cable is securely connected 34
F_1394 ieee 1394a header gray 34
Ga ma790fxt ud5p motherboard 34 34
Lpt parallel port header 34
The header conform to ieee 1394a specification each ieee 1394a header can provide one ieee 1394a port via an optional ieee 1394a bracket for purchasing the optional ieee 1394a bracket please contact the local dealer 34
The lpt header can provide one parallel port via an optional lpt port cable for purchasing the optional lpt port cable please contact the local dealer 34
Ci chassis intrusion header 35
Com serial port header white 35
Hardware installation 35 35
The com header can provide one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer 35
This motherboard provides a chassis detection feature that detects if the chassis cover has been removed this function requires a chassis with chassis intrusion detection design 35
Clr_cmos clearing cmos jumper 36
Chapter 2 bios setup 37
1 startup screen 38
A the logo screen default 38
B the post screen 38
2 the main menu 39
Bios setup program function keys 39
Sample bios version e15 39
Advanced bios features 40
Exit without saving 40
Integrated peripherals 40
Keys for the main menu only 40
Load fail safe defaults 40
Load optimized defaults 40
Mb intelligent tweaker m i t 40
Pc health status 40
Power management setup 40
Save exit setup 40
Set supervisor password 40
Set user password 40
Standard cmos features 40
3 mb intelligent tweaker m i t 41
41 bios setup 41
Allows you to alter the clock ratio for the installed cpu the adjustable range is dependent on the cpu being used 41
Allows you to alter the north bridge controller frequency for the installed cpu the adjustable range is dependent on the cpu being used 41
Allows you to manually set the cpu host frequency the adjustable range is from 200 mhz to 500 mhz important it is highly recommended that the cpu frequency be set in accordance with the cpu specifications 41
Cpu clock ratio 41
Cpu frequency mhz 41
Cpu host clock control 41
Cpu northbridge freq 41
Enables or disables the control of cpu host clock auto default allows bios to automatically adjust the cpu host frequency manual allows the cpu frequency mhz item below to be configurable note if your system fails to boot after overclocking please wait for 20 seconds to allow for automated system reboot or clear the cmos values to reset the board to default values 41
Note this item is present only if you install a cpu that supports this feature 41
Whether the system will work stably with the overclock overvoltage settings you made is dependent on your overall system configurations incorrectly doing overclock overvoltage may result in damage to cpu chipset or memory and reduce the useful life of these components this page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results inadequately alter ing the settings may result in system s failure to boot if this occurs clear the cmos values and reset the board to default values when the system voltage optimized item blinks in red it is recommended that you set the system voltage control item to auto to optimize the system voltage settings 41
Allows you to manually set the frequency for the ht link between the cpu and chipset 42
Allows you to manually set the pcie clock frequency the adjustable range is from 100 mhz to 200 mhz auto sets the pcie clock frequency to standard 100 mhz default auto 42
Auto bios will automatically adjust the ht link frequency default 42
Cas latency 42
Cpu host clock control cpu frequency mhz set memory clock memory clock 42
Ddr3 timing items 42
Determines whether to manually set the memory clock auto lets bios automatically set the memory clock as required manual allows the memory clock control item below to be configurable default auto 42
Dram configuration 42
Ga ma790fxt ud5p motherboard 42 42
Ht link frequency 42
Manual allows all ddr3 timing items below to be configurable options are auto default manual 42
Memory clock 42
Mhz 2 ghz sets ht link frequency to 200 mhz 2 ghz 42
Options are auto default 3t 7t 42
Pcie clock mhz 42
Set memory clock 42
The settings under the four items above are synchronous to those under the same items in the mb intelligent tweaker m i t 42
This option is configurable only when set memory clock is set to manual 42
X4 0 sets memory clock to x4 0 42
X5 3 sets memory clock to x5 3 42
X6 6 sets memory clock to x6 6 42
X8 0 sets memory clock to x8 0 42
Ddr3 voltage control 43
Minimum ras active time 43
Nb voltage control 43
Precharge time 43
Ras to cas r w delay 43
Ras to ras delay 43
Row cycle time 43
Row precharge time 43
System voltage control 43
T 2t command timing 43
Trfc0 for dimm1 43
Trfc1 for dimm3 43
Trfc2 for dimm2 43
Trfc3 for dimm4 43
Twtr command delay 43
Write recovery time 43
Cpu nb vid control 44
Cpu voltage control 44
Nb pcie pll voltage control 44
Normal cpu vcore 44
Sb ht voltage control 44
4 standard cmos features 45
45 bios setup 45
Access mode sets the hard drive access mode options are auto default chs lba large 45
Access mode sets the hard drive access mode options are auto default large 45
Extended ide drive configure your ide sata devices by using one of the two methods below auto lets bios automatically detect ide sata devices during the post default none if no ide sata devices are used set this item to none so the system will skip the detection of the device during the post for faster system startup 45
Ide channel 0 1 master slave 45
Ide channel 0 1 master slave configure your ide sata devices by using one of the two methods below auto lets bios automatically detect ide sata devices during the post default none if no ide sata devices are used set this item to none so the system will skip the detection of the device during the post for faster system startup 45
Ide channel 2 3 4 master slave 45
Ide hdd auto detection 45
Sets the system date the date format is week read only month date and year select the desired field and use the up arrow or down arrow key to set the date 45
Sets the system time for example 1 p m is 13 0 0 select the desired field and use the up arrow or down arrow key to set the time 45
To autodetect the parameters of the ide sata device on this channel 45
Drive a 46
Floppy 3 mode support 46
Halt on 46
Memory 46
47 bios setup 47
5 advanced bios features 47
Amd k8 cool quiet control 47
Auto lets the amd cool n quiet driver dynamically adjust the cpu clock and vid to reduce heat output from your computer and its power consumption default 47
Disabled disables this function 47
First second third boot device 47
Hard disk boot priority 47
Password check 47
Setup a password is only required for entering the bios setup program default 47
Specifies whether a password is required every time the system boots or only when you enter bios setup after configuring this item set the password s under the set supervisor user password item in the bios main menu 47
System a password is required for booting the system and for entering the bios setup program 47
To accept options are floppy ls120 hard disk cdrom zip usb fdd usb zip usb cdrom usb hdd legacy lan disabled 47
To exit this menu when finished 47
Virtualization 47
Virtualization allows a platform to run multiple operating systems and applications in independent partitions with virtualization one computer system can function as multiple virtual systems default disabled 47
Away mode 48
Full screen logo show 48
Hdd s m a r t capability 48
Init display first 48
49 bios setup 49
6 integrated peripherals 49
Ahci configures the sata controller to ahci mode 49
Ahci configures the sata controller to ahci mode advanced host controller interface ahci is an interface specification that allows the storage driver to enable advanced serial ata features such as native command queuing and hot plug 49
Allows you to decide whether to configure the sata controller to ahci mode 49
As sata type the mode depends on the onchip sata type settings 49
Configures the operating mode of the integrated sata2_0 sata2_3 controller 49
Enables or disables the integrated ide controller default enabled 49
Enables or disables the sata controller integrated in the gigabyte sata 2 chip default enabled 49
Ide configures the sata controller to pata mode default 49
Ide disables raid for the sata controller and configures the sata controller to pata mode default 49
Native ide allows the sata controller to operate in native ide mode default enable native ide mode if you wish to install operating systems that support native mode 49
Onboard sata ide ctrl mode gigabyte sata2 chip gsata2_0 3 connectors 49
Onboard sata ide device gigabyte sata2 chip gsata2_0 3 connectors 49
Onchip ide channel 49
Onchip sata port4 5 type sata2_4 sata2_5 connectors 49
Onchip sata type amd sb750 south bridge sata2_0 sata2_3 connectors 49
Raid enables raid for the sata controller 49
This option is configurable only when onchip sata type is set to raid or ahci configures the operating mode of the integrated sata2_4 sata2_5 connectors 49
Controller 0 gsata2 0 1 controller 1 gsata2 2 3 50
Ga ma790fxt ud5p motherboard 50 50
Note in case you need to set this item to ahci mode and want to install windows xp onto the ahci hard drive you have to install the sata controller driver during the os installation refer to chapter 5 configuring sata hard drive s for how to make a driver diskette and install the driver 50
Smart backup 50
The controller 0 gsata2 0 1 controller 1 gsata2 2 3 submenu allows you to check the information of the hard drive s connected to the gsata2_0 3 connectors or to configure a raid array the controller 0 gsata2 0 1 supports the gsata2_0 and gsata2_1 connectors and the control ler 1 gsata2 2 3 supports the gsata2_2 and gsata2_3 connectors after the configuration ensure the sata controller driver has been installed in the operating system you can install the smart backup utility refer to chapter 5 configuring sata hard drive s to view the device status in the operating system 50
51 bios setup 51
Allows you to configure your sata hard drives or to build a raid array options are performance raid 0 safe raid 1 big jbod and normal port multiplier 51
Apply raid config 51
Disk raid status 51
Note when the hard drive s is set to normal multiplier mode make sure to install the sata controller driver in the operating system for the hard drive s to be properly detected and to support hot plug 51
Smart backup config 51
This menu allows you to configure a raid array 51
This menu provides information on the connected hard drive s and raid array 51
To confirm note if you want to erase an existing raid array and set up a new array make sure to set smart backup config to normal first and then select the raid mode you want 51
Allows you to decide whether to activate the boot rom integrated with the onboard lan chip default disabled 52
Enables or disables the onboard audio function default enabled if you wish to install a 3rd party add in audio card instead of using the onboard audio set this item to disabled 52
Enables or disables the onboard lan function default enabled if you wish to install a 3rd party add in network card instead of using the onboard lan set this item to disabled 52
Ga ma790fxt ud5p motherboard 52 52
Onboard audio function 52
Onboard lan device 52
Onboard lan1 2 boot rom lan1 2 port 52
Onboard lan1 2 function lan1 2 port 52
Smart lan1 2 lan cable diagnostic function 52
This motherboard incorporates cable diagnostic feature designed to detect the status of the attached lan cable this feature will detect cabling issue and report the approximate distance to the fault or short refer to the following information for diagnosing your lan cable 52
When no lan cable is attached if no lan cable is attached to the motherboard the status fields of all four pairs of wires will show open and the length fields show 0m as shown in the figure above 52
Legacy usb storage detect 53
Onboard 1394 function 53
Onboard parallel port 53
Onboard serial port 1 53
Onchip usb controller 53
Usb ehci controller 53
Usb keyboard support 53
Usb mouse support 53
Ecp mode use dma 54
Parallel port mode 54
55 bios setup 55
7 power management setup 55
Acpi suspend type 55
Allows the system to be awakened from acpi s3 sleep state by a wake up signal from the installed usb device default enabled 55
Allows the system to be awakened from an acpi sleep state by a wake up signal from a modem that supports wake up function default disabled 55
Configures the way to turn off the computer in ms dos mode using the power button 55
Delay 4 sec press and hold the power button for 4 seconds to turn off the system if the power button is pressed for less than 4 seconds the system will enter suspend mode 55
Instant off press the power button and then the system will be turned off instantly default 55
Modem ring resume 55
Note supported on window 55
Operating system only 55
S1 pos enables the system to enter the acpi s1 power on suspend sleep state in s1 sleep state the system appears suspended and stays in a low power mode the system can be resumed at any time 55
S3 str enables the system to enter the acpi s3 suspend to ram sleep state default in s3 sleep state the system appears to be off and consumes less power than in the s1 state when signaled by a wake up device or event the system resumes to its working state exactly where it was left off 55
Soft off by power button 55
Specifies the acpi sleep state when the system enters suspend 55
Usb wake up from s3 55
Ac back function 56
Hpet support 56
Kb power on password 56
Pme event wake up 56
Power on by alarm 56
Power on by keyboard 56
Power on by mouse 56
57 bios setup 57
8 pc health status 57
Case opened 57
Displays the detection status of the chassis intrusion detection device attached to the motherboard ci header if the system chassis cover is removed this field will show yes otherwise it will show no to clear the chassis intrusion status record set reset case open status to enabled save the settings to cmos and then restart your system 57
Keeps or clears the record of previous chassis intrusion status enabled clears the record of previous chassis intrusion status and the case opened field will show no at next boot default disabled 57
Reset case open status 57
Cpu smart fan control 58
Cpu smart fan mode 58
Cpu system power fan fail warning 58
Cpu warning temperature 58
Current cpu system power fan speed rpm 58
Current system cpu temperature 58
Current voltage v vcore ddr3 1 v 3 v 12v 58
System smart fan control 58
10 load optimized defaults 59
59 bios setup 59
9 load fail safe defaults 59
Key to load the optimal bios default settings the bios defaults settings helps the system to operate in optimum state always load the optimized defaults after updating the bios or after clearing the cmos values 59
Key to load the safest bios default settings in case system instability occurs you may try to load fail safe defaults which are the safest and most stable bios settings for the motherboard 59
11 set supervisor user password 60
12 save exit setup 61
13 exit without saving 61
61 bios setup 61
To return to the bios setup main menu 61
1 installing chipset drivers 63
Chapter 3 drivers installation 63
2 application software 64
3 technical manuals 64
4 contact 65
5 system 65
6 download center 66
1 xpress recovery2 67
A installing windows vista and partitioning the hard drive 67
Before you begin 67
Chapter 4 unique features 67
Installation and configuration 67
System requirements 67
B accessing xpress recovery2 68
C using the backup function in xpress recovery2 68
D using the restore function in xpress recovery2 69
E removing the backup 69
F exiting xpress recovery2 69
2 1 updating the bios with the q flash utility 70
2 bios update utilities 70
A before you begin 70
B updating the bios 71
Ga ma790fxt ud5p motherboard 72 72
To exit q flash and reboot the system as the system boots you should see the new bios version is present on the post screen 72
To load bios defaults 72
To load bios defaults system will re detect all peripherals devices after a bios update so we recommend that you reload bios defaults 72
To save settings to cmos and exit bios setup the procedure is complete after the system restarts 72
2 2 updating the bios with the bios utility 73
A before you begin 73
B using bios 73
C after updating the bios 73
3 easytune 6 74
Tabs information 74
The easytune 6 interface 74
4 easy energy saver 75
A meter mode 75
Meter mode button information table 75
The easy energy saver interface 75
B total mode 76
C stealth mode 76
Total mode button information table 76
5 q share 77
Directions for using q share 77
Options descriptions 77
6 time repair 78
Preference screen 78
System restore 78
7 teaming 79
1 1 configuring amd sb750 sata controller 81
1 configuring sata hard drive s 81
A installing sata hard drive s in your computer 81
Before you begin 81
Chapter 5 appendix 81
To configure sata hard drive s follow the steps below 81
B configuring sata controller mode in bios setup 82
Figure 1 82
Ga ma790fxt ud5p motherboard 82 82
Make sure to configure the sata controller mode correctly in system bios setup 82
Step 2 save changes and exit bios setup 82
The bios setup menus described in this section may differ from the exact settings for your motherboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 82
To enter bios setup during the post power on self test ensure onchip sata controller is enabled under integrated peripherals to enable raid for the sata2_0 1 2 3 connectors set onchip sata type to raid to enable raid for the sata2_4 5 connectors set onchip sata type to raid and set onchip sata port4 5 type to as sata type figure 1 82
C configuring raid set in raid bios 83
Figure 4 84
Figure 5 84
Ga ma790fxt ud5p motherboard 84 84
To enter the define ld window figure 4 the define ld selection from the main menu allows users to begin the process of manually defining the drive elements and raid levels for one or multiple disk arrays 84
To enter the raid configuration menu figure 5 84
Delete an array the delete array menu option allows for deletion of disk array assignments 86
Deleting an existing disk array could result in loss of data record all array information including the array type the disk members and stripe block size in case you wish to undo a deletion 86
Figure 9 86
Ga ma790fxt ud5p motherboard 86 86
To return to main menu 86
1 2 configuring gigabyte sata2 jmb322 sata controller 87
A installing sata hard drive s in your computer 87
Appendix 87 87
Attach one end of the sata signal cable to the rear of the sata hard drive and the other end to available sata port on the motherboard on this motherboard the gsata2_0 3 ports are supported by the gigabyte sata2 jmb322 sata controller then connect the power connector from your power supply to the hard drive 87
B enabling the sata controllers and configuring hard drive mode in bios setup 87
Figure 1 87
Make sure to enable the sata controllers and configure hard drive mode in system bios setup 87
On smart backup and go to the controller 0 gsata2 0 1 or controller 1 gsata2 2 3 submenu depending on which ports you want to use controller 0 gsata2 0 1 controls the gsata2_0 1 ports and controller 1 gsata2 2 3 controls the gsata2_2 3 ports then enter the smart backup config submenu figure 2 87
Step 3 select a raid mode for your hard drives on the smart backup config item options include perfor mance raid 0 safe raid 1 big jbod and normal port multiplier and use apply raid config for the settings to take effect 87
The bios setup menus described in this section may differ from the exact settings for your motherboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 87
To enter bios setup during the post in bios setup go to integrated peripherals ensure that onboard sata ide device is enabled we recommend that you leave onboard sata ide ctrl mode to the default ide mode 87
Figure 2 88
Ga ma790fxt ud5p motherboard 88 88
Step 4 after configuring the sata ports you are ready to proceed with the installation of the operating system you do not have to load the sata controller driver during the installation process of the operating system make sure to install the driver after the operating system is installed using xpress install to install all drivers required for your motherboard is recommended for the sata hard drives to work and be detected properly 88
Step 5 then install the smart backup utility from the application software menu on the driver autorun screen for monitoring the device raid status in the operating system for more information refer to section 5 1 5 smart backup utility 88
1 3 making a sata raid ahci driver diskette for windows xp 89
Required for ahci and raid mode 89
1 4 installing the sata raid ahci driver and operating system 90
A installing windows xp 90
B installing windows vista 91
1 5 smart backup utility 94
2 1 configuring 2 4 5 7 channel audio 95
2 configuring audio input and output 95
A configuring speakers 95
B configuring sound effect 96
C activating an ac 97 front panel audio module 96
D muting the back panel audio for hd audio only 96
2 2 configuring s pdif in out 97
A installing the s pdif in and out cable 97
B configuring s pdif in 97
C configuring s pdif out 98
2 3 enabling the dolby home theater function 99
2 4 configuring microphone recording 100
Enabling stereo mix 101
2 5 using the sound recorder 102
A recording sound 102
B playing the recorded sound 102
3 1 frequently asked questions 103
3 troubleshooting 103
3 2 troubleshooting procedure 104
Ga ma790fxt ud5p motherboard 104 104
If you encounter any troubles during system startup follow the troubleshooting procedure below to solve the problem 104
Appendix 105 105
If the procedure above is unable to solve your problem contact the place of purchase or local dealer for help or go to the support technical service zone page to submit your question our customer service staff will reply you as soon as possible 105
4 regulatory statements 106
Our commitment to preserving the environment 106
Regulatory notices 106
Restriction of hazardous substances rohs directive statement 106
Waste electrical electronic equipment weee directive statement 106
Weee symbol statement 106
China restriction of hazardous substances table 107
Appendix 111 111
Contact us 111
Ga ma790fxt ud5p motherboard 112 112
Gigabyte global service system 112
To submit a technical or non technical sales marketing question please link to http ggts gigabyte com tw then select your language to enter the system 112
