Инструкция по эксплуатации Страница: 59

Gigabyte GA-MA770T-US3 (rev.1.3) [59/100] 4 contact

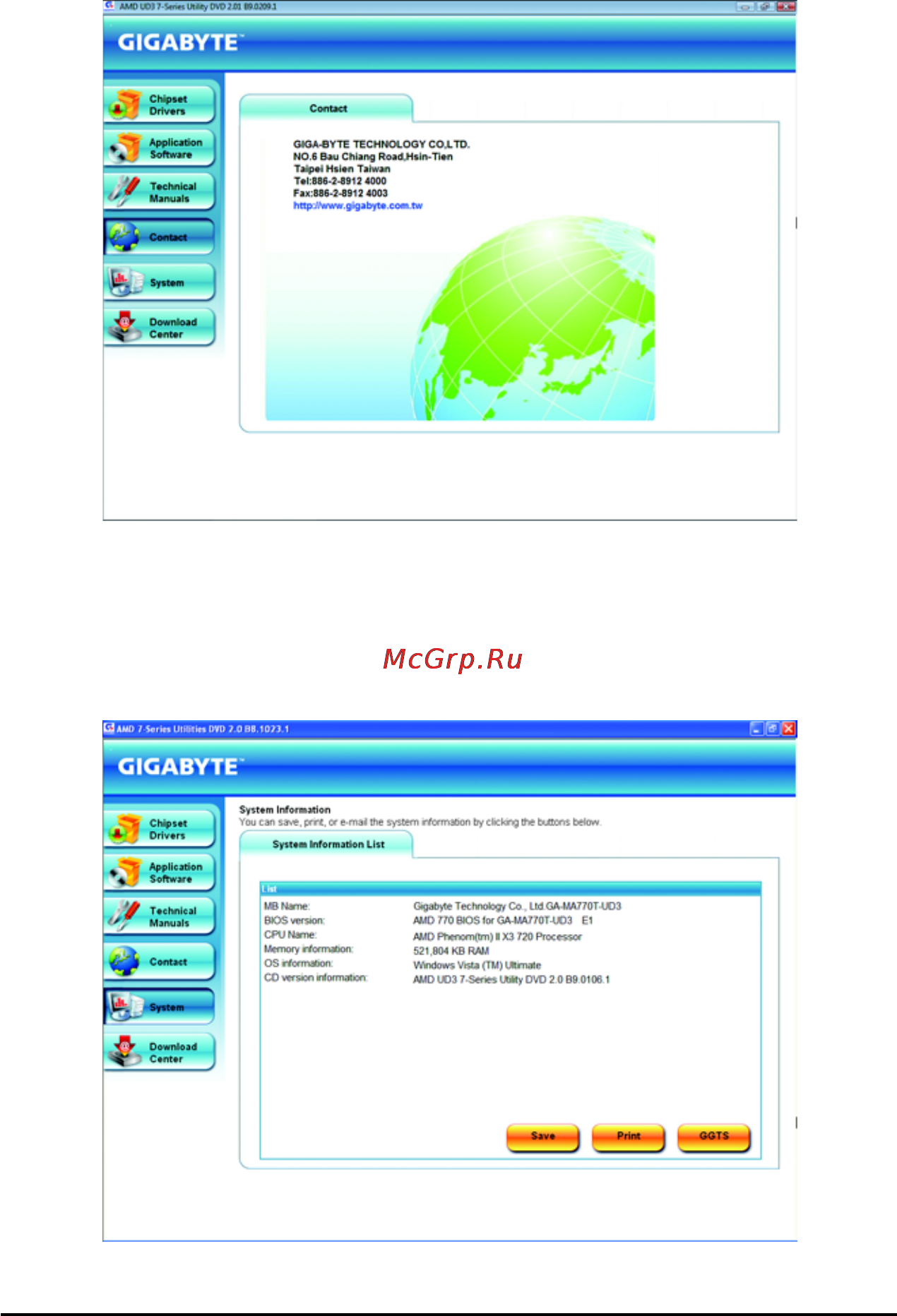

Drivers Installation- 59 -

3-4 Contact

For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch offices,

click the URL on this page to link to the GIGABYTE Website.

3-5 System

This page provides the basic system information.
