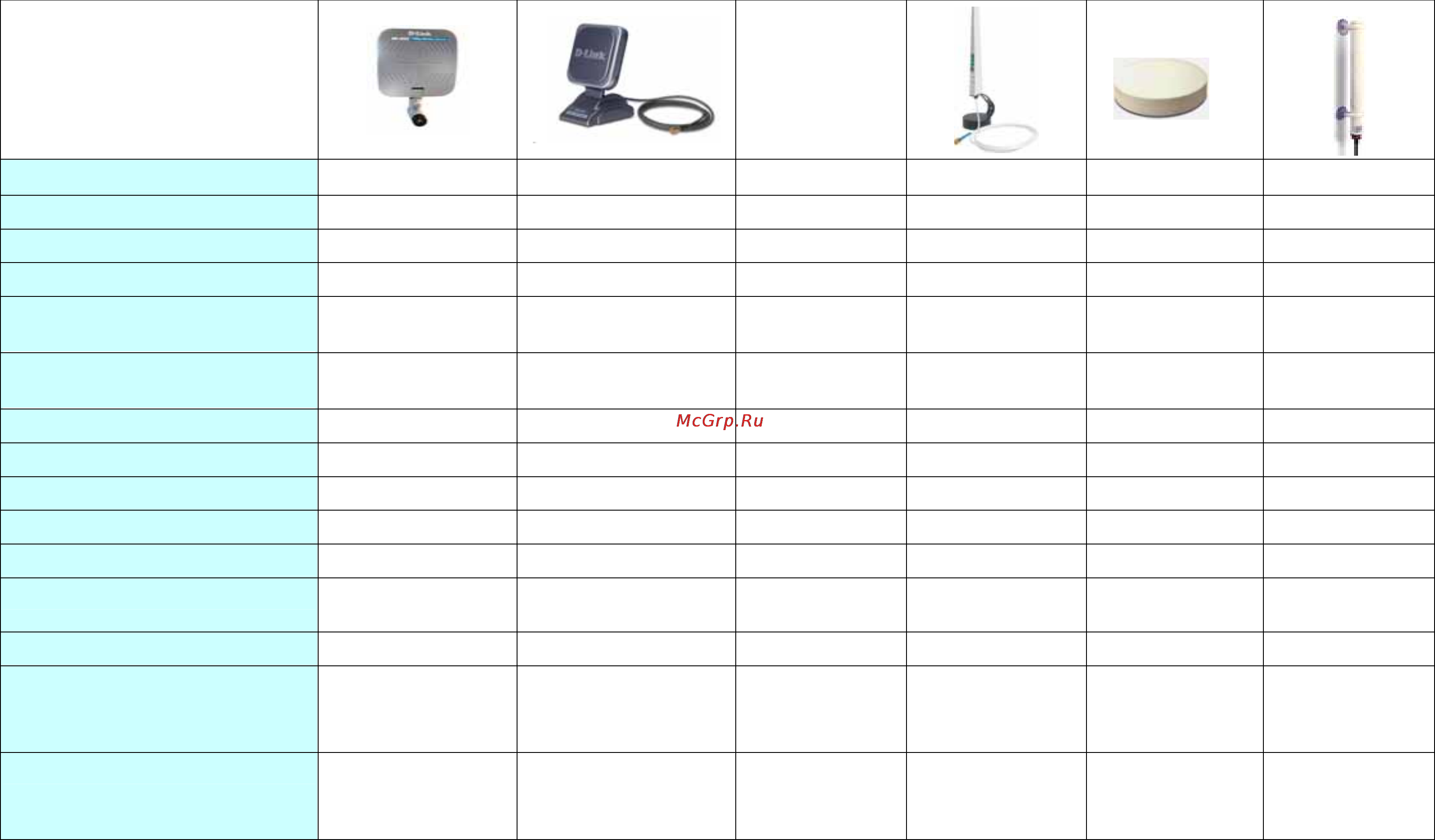

Model Name
DWL-R60AT ANT24-0600 ANT24-0501 ANT24-0400 ANT24-0401 ANT24-0500
Signal directivity
Directional Antenna Directional Antenna Omni-directional Omni-directional Omni-directional Omni-directional
Application range
Indoor only Indoor only Indoor only Indoor only Indoor ceiling only Indoor/ Outdoor
Gain (Without cable loss)
6dBi 6dBi 5dBi 4dBi 3.5dBi 5dBi
Approximate Range at 1 Mbps / 11Mbps *
( Work with Indoor AP )
400m / 60 m 400m / 60m
400m/ 50m
250m / 40 m 250m / 40m 300m / 50m
Approximate Range at 1Mbps/ 11 Mbps *
(Work with Outdoor AP)
--- ---
---
--- --- 500 / 200m
Half power beam width **
H60 V90 H68 V80 H360 V36 H360 V40 H360 V120 H360 V30
Pigtail cable length
NA 150cm 150cm 150cm NA 30cm
Antenna fixed connector
RP-SMA plug RP-SMA plug RP-SMA plug RP-SMA plug SMA jack N-jack
Surge protector for outdoors
--- --- --- --- --- Optional
Default extension cable length
NA NA NA NA 2M 3M
Default mounting configuration
NA
Wall/ desktop/magnetic
Wall/
desktop/magnetic
Wall/ desktop Ceiling Pole
Antenna-kit weight (Kg)
300g 410g 412g 320g 310g 540g
Optional accessories
ANT24-JC
For DWL-660 Links
ANT24-JC
For DWL-660 Links
ANT24-JC
For DWL-660 Links
ANT24-JC
For DWL-660 Links
ANT24-JC
For DWL-660 Links
ANT24-JC
ANT24-SP
ANT24-CB series
Optional antenna cable kits
--- --- --- --- --- ANT24-IDU series
ANT24-ODU series
ANT24-DLK series
*1.Extended range reference based on RF-Output Power 15dbm( Indoor AP), 19 ( outdoor AP) with default cable loss,
*2.The transmission distance range might depend on the two same spec antennas with default cable loss
*3. Effective range based on EIRP( Effected Isotropic Radiation Power. = device output power + antenna gain – cable lost )
**HPBW: Half Power Beam Width. H : horizontal plane pattern, V : vertical plane pattern
