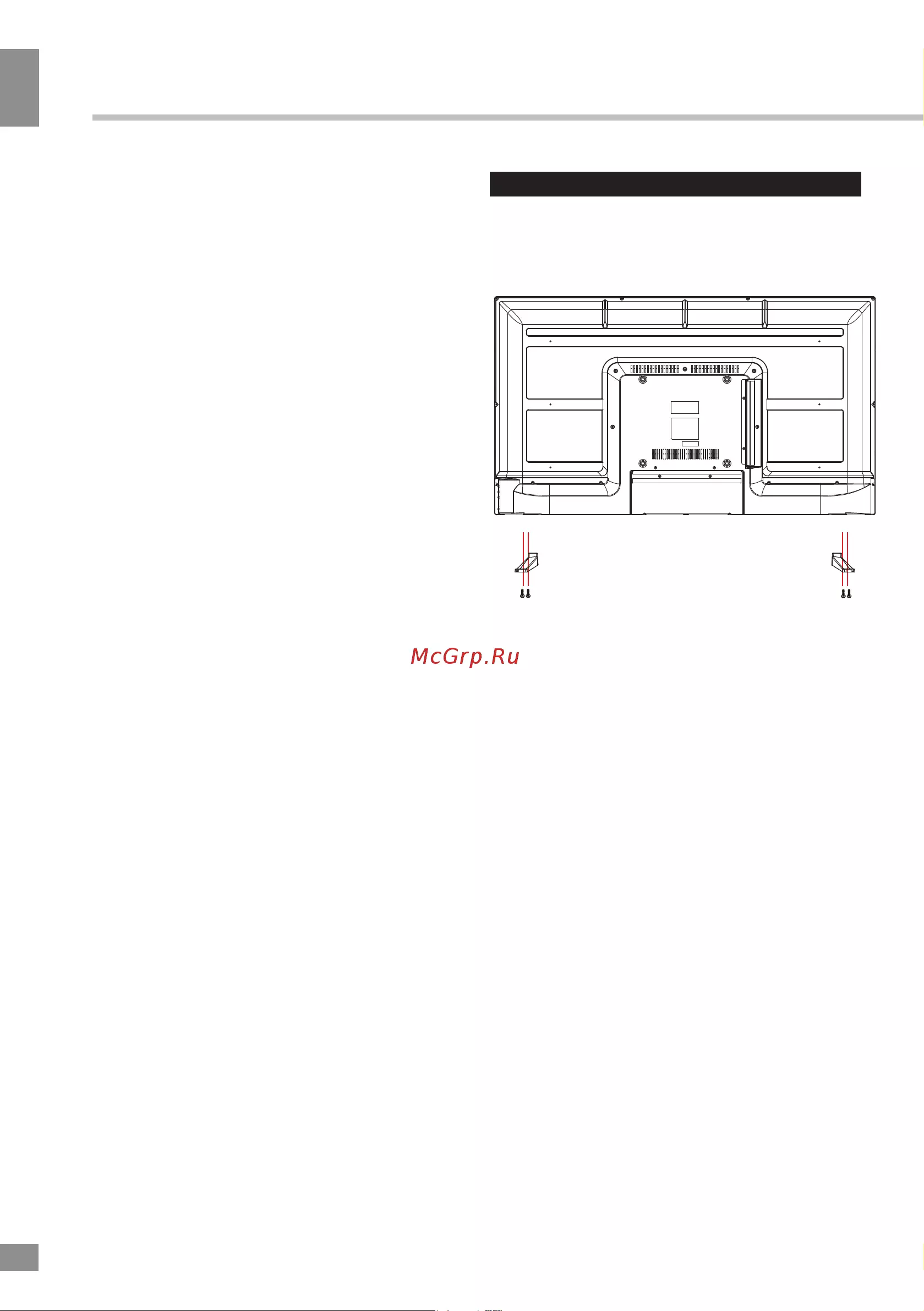

Before you start

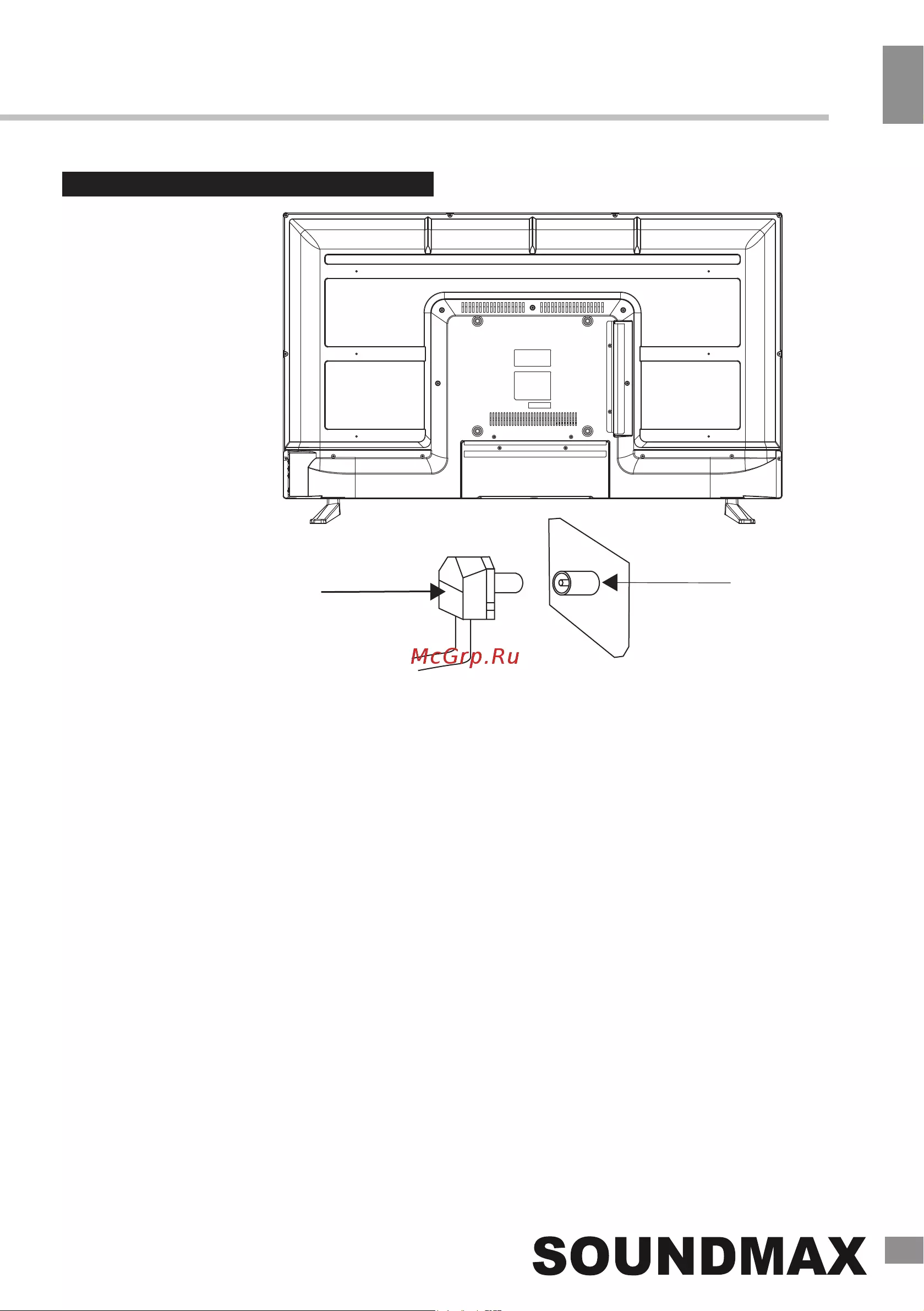

Connection

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω

impedance converter to plug in antenna input

terminal on the rear of the cabinet.

Other connections

• Connect the video source to the

miniAV input using the special cable.

•

Component input YPbPr is

intended to receive component video signal

from the external device. Connection is made

with the help of a special component cable.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• When using the LED as a computer

screen, connect the PC to the VGA jack from

the monitor by the relevant cable (not included).

• If the video source has a HDMI output jack,

you can connect the signal to the monitor by

the HDMI cable (not included).

• Coaxial output is intended for transmitting

multi-channel sound to an external decoder

(e.g. in 5.1-CH format). Coaxial cable should

be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

• Connect your headphones or earphones

(not included) to the headphone socket of

this unit. When earphones are connected, the

sound output through the built-in speakers of

this unit is mute.
