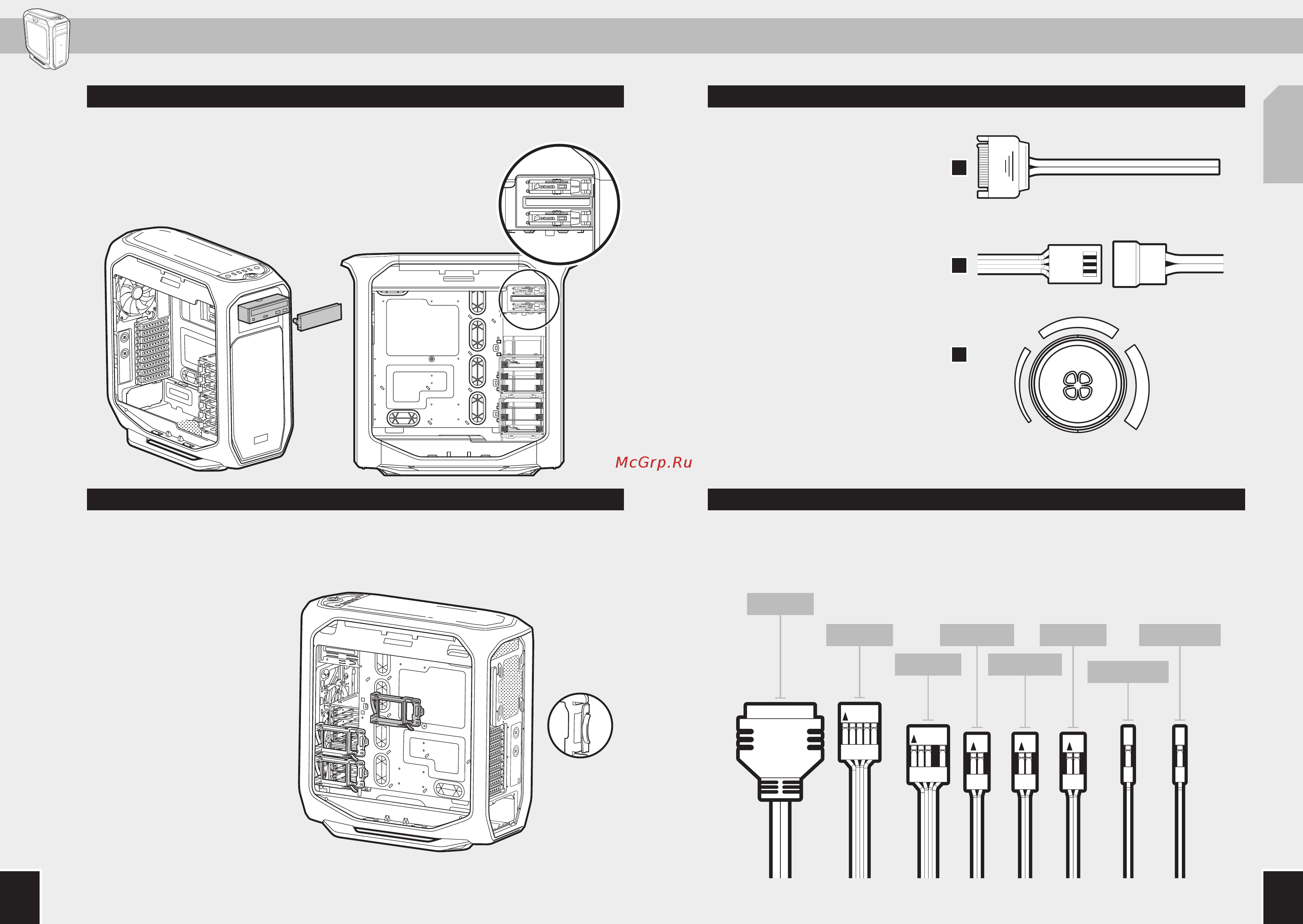

5. Install 5.25" drive/device (ODD)

6. Install 2.5" SSD

First, remove the front panel 5.25" drive bay cover then

slide the ODD into the drive bay until the tool-free latch

clicks, securing the drive.

Note: To release an optical drive, push in the tool-free tab then

pull the drive outward.

Pull down the tab and place

the SSD into the tool-free

expandable SSD cage until

you feel it secure.

Note: To remove the SSD from the

cage, simply pull the tab down to

release.

7. Power the Case Fans

8. Connect the Front I/O Connectors

See your motherboard’s

manual for front panel header

locations and pin-outs.

USB 3.0

USB 2.0

HD AUDIO

POWER SW

RESET SW

HDD LED

POWER LED +

POWER LED -

1. Connect the SATA power

connector to the PSU SATA

power cable.

2. Connect the 3 or 4-Pin fan

connecter to the case fan

header.

3. Push the fan speed selector

button on your case to

toggle fan speed.
