9
Setting up the Player
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. If this occurs,
position the player away from the TV, VCR, or radio,
or turn off the unit after removing the disc.
DVD Player Connections
Depending on your TV and other equipment there are
various ways you can connect the player. Please refer
to the manuals of your TV, stereo system or other
devices as necessary for additional connection
information.

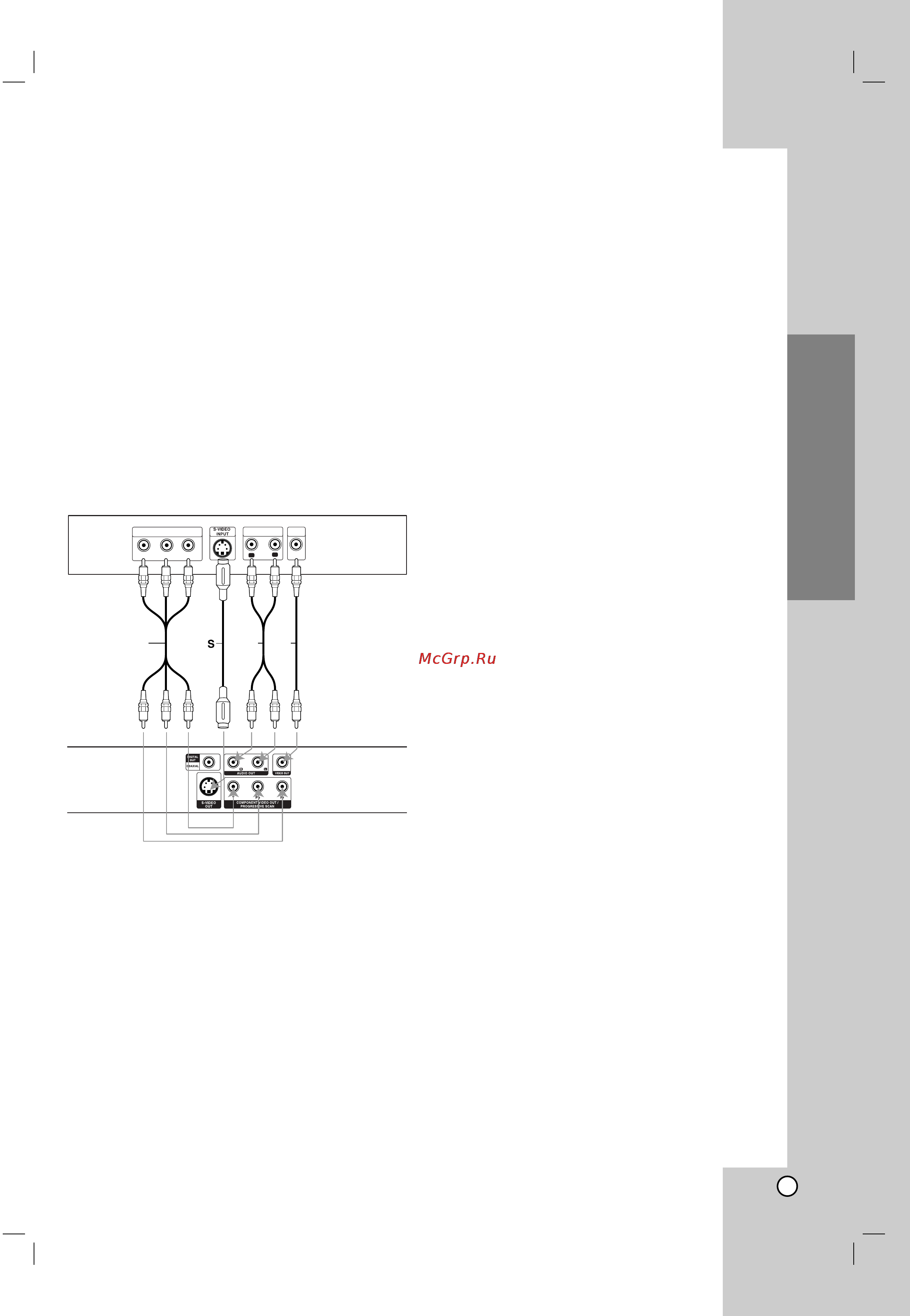

Video and Audio Connections to Your TV
Make sure the DVD player is connected directly to the
TV and not to a VCR, otherwise the DVD image could
be distorted by the copy protection system.
Video: Connect the VIDEO OUT jack on the DVD
player to the video in jack on the TV using the
video cable (V).
S-Video: Connect the S-VIDEO jack on the DVD
Player to the S- Video in jack on the TV using the
S-Video cable (S)
Component Video (Color Stream
®
): Connect the
COMPONENT VIDEO OUT/PROGRESSIVE
SCAN jacks on the DVD Player to the
corresponding in jacks on the TV using an Y Pb Pr
cable (C).
Progressive Scan (ColorStream
®
pro):
• If your television is a high-definition or “digital
ready” television, you may take advantage of the
DVD Player’s progressive scan output for the
highest video resolution possible.
• If your TV does not accept the Progressive Scan
format, the picture will appear scrambled if you
try Progressive Scan on the DVD Player.
Notes:
Set the Progressive to “On” on the setup menu for
progressive signal, see page 13.
Set the progressive to “Off” by removeing any disc
from the unit and close the disc tray. see that “no
disc” is displayed on the display window. Then press
STOP and hold it for five seconds before releasing
it.
Progressive scan does not work with the analog
video connections (yellow VIDEO OUT jack).
Audio Connection to Your TV:
Connect the left and right AUDIO OUT jacks of the
DVD Player to the audio left and right IN jacks on the
TV (A) using the audio cables. Do not connect the
DVD Player’s AUDIO OUT jack to the phone in jack
(record deck) of your audio system.
R
L
AUDIO INPUT
VIDEO
INPUT
Y
Pb
Pr
COMPONENT VIDEO /
PROGRESSIVE SCAN INPUT
Rear of TV
Rear of DVD player
A VC
