- 73 - Appendix
Step 3:

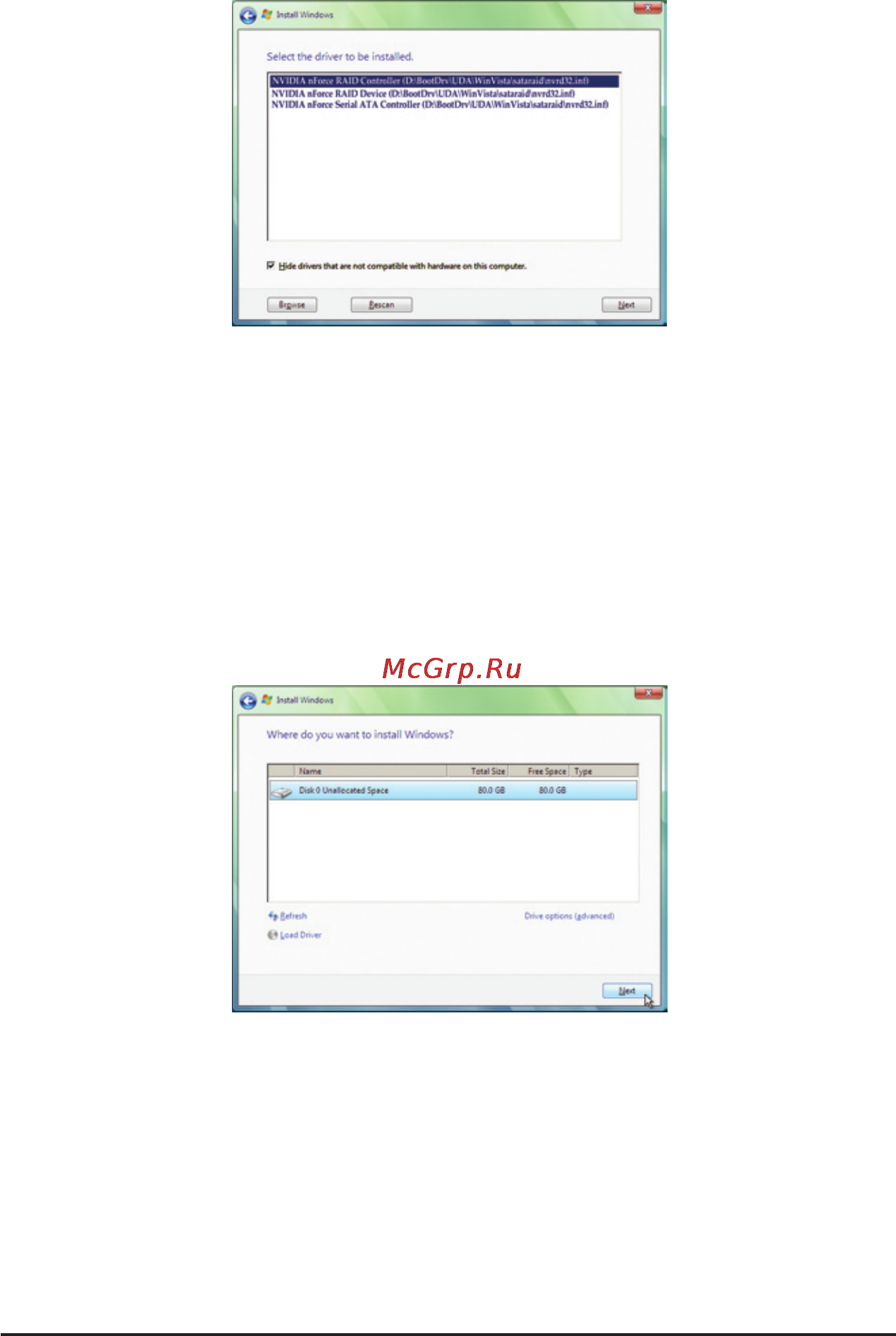

When a screen as shown in Figure 5 appears, select NVIDIA nForce RAID Controller and click Next.
Step 4:
After the driver is loaded, the RAID drive will appear. Select the RAID drive and then click Next to continue
the OS installation (Figure 6).
Figure 5
Figure 6
