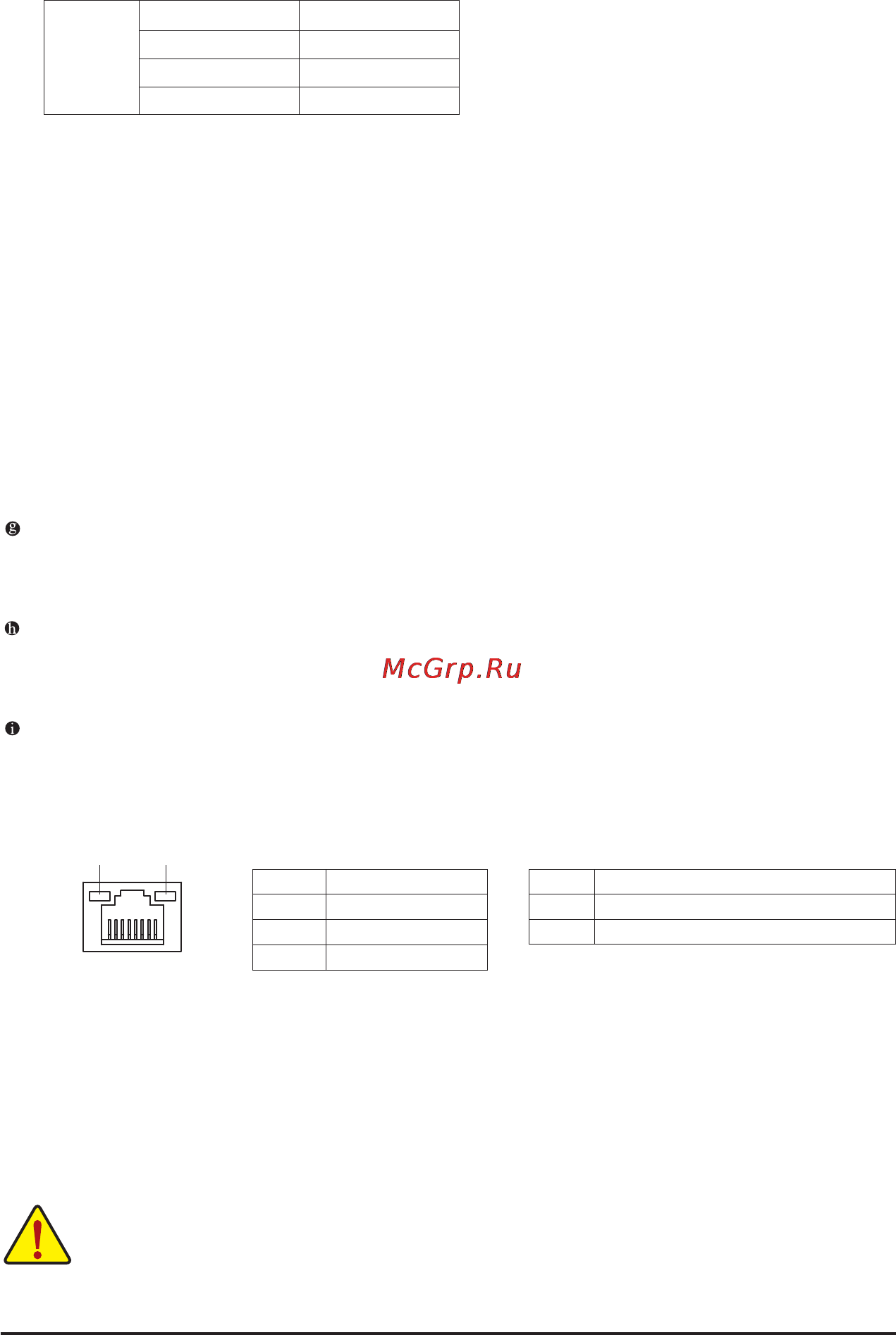

- 21 - Hardware Installation
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specication, featuring high speed, high bandwidth and
hotplug capabilities. Use this port for an IEEE 1394a device.
eSATA 3Gb/s Port
The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s standard.
Use the port to connect an external SATA device.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.
A. Dual Display Congurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below shows
the supported dual display congurations.
• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the recom-
mended system requirements (or better) below.
• Memory: Two 1 GB DDR3 1066 memory modules with dual channel mode enabled
• BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup," "Advanced
BIOS Features," for more information)
• Playback software: CyberLink PowerDVD 8.0 or later (Note: Please ensure Hardware Acceleration
is enabled.)
• HDCP compliant monitor(s)
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
HDMI + D-Sub Yes
Dual
Display
(Note 1) The DVI-D port does not support D-Sub connection by adapter.
(Note 2) Simultaneous output for DVI-D and HDMI is not supported.
