- 19 - Hardware Installation
1-6 Setup of the AMD Hybrid CrossFireX
™
Conguration
Combining the onboard GPU with a discrete graphics card, AMD Hybrid CrossFireX can provide signicantly
advanced display performance for AMD platform. Read the following instructions on conguring an AMD
Hybrid CrossFireX system.
A. System Requirements
- Windows 7/Vista operating system
- An AMD Hybrid CrossFireX-supported motherboard and correct driver
- An AMD Hybrid CrossFireX-supported graphics card
(Note 1)
B. Connecting the Graphics Cards
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install an AMD Hybrid CrossFireX-supported
graphics card on the PCIEX16 slot.
Step 2:
Plug the display cable into the onboard graphics port on the back panel.
C. BIOS Setup
Enter BIOS Setup to set the following items under the Advanced BIOS Features menu:
- Set Internal Graphics Mode to UMA.
(Note 2)
- Set UMA Frame Buffer Size to 256MB or 512MB.
(Note 2)
- Set Surround View to Disabled.
- Set Init Display First to OnChipVGA.

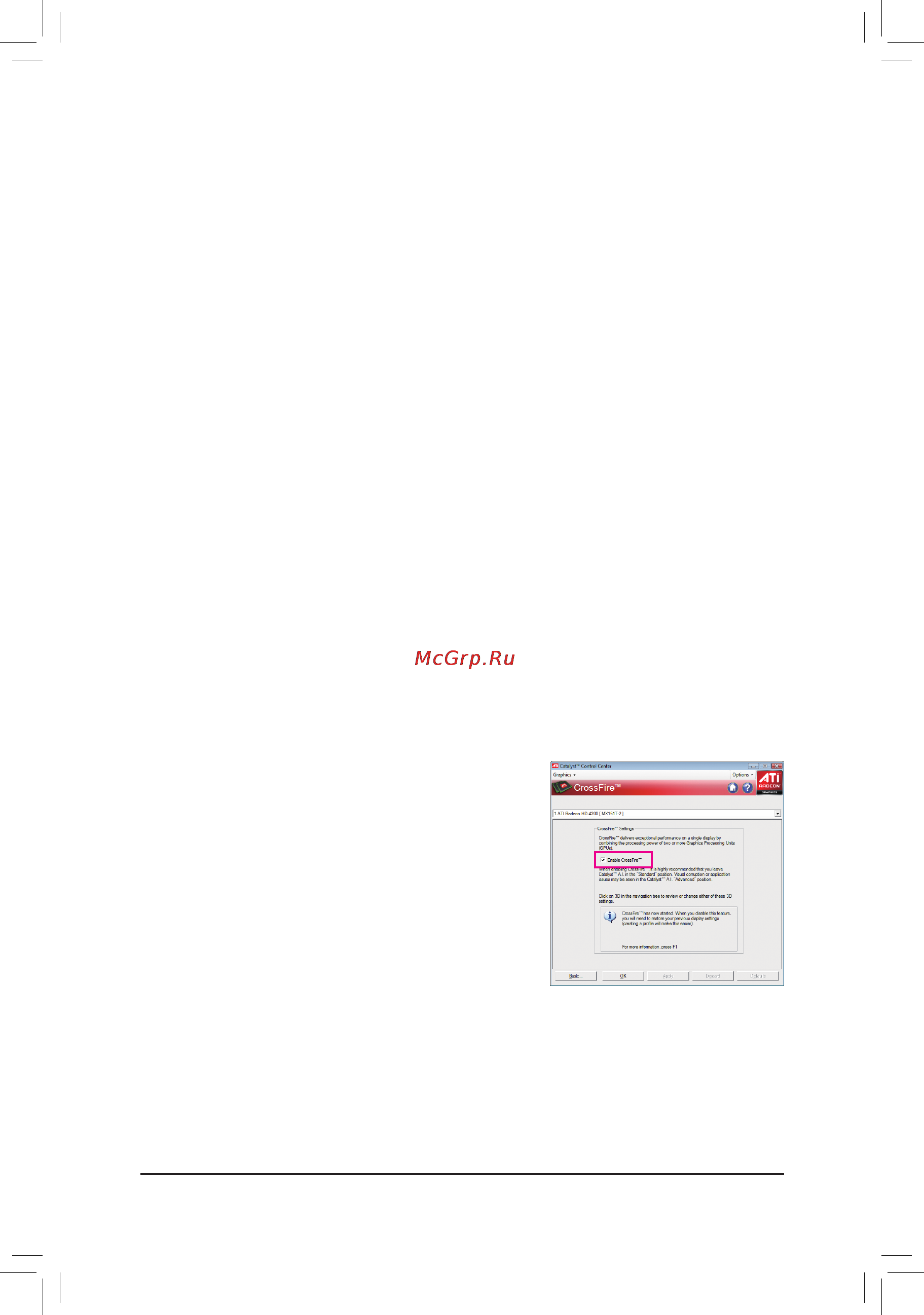

D.ConguringtheGraphicsDriver
After installing the motherboard driver in the operating system, go
to the ATI Catalyst
™
Control Center. Select CrossFire
™
on the
Graphics menu on the upper left corner and ensure the Enable
CrossFire
™
check box is selected.
(Note 1) You do not have to install the graphics card driver if the motherboard chipset driver has been
installed.
(Note 2) To change the Internal Graphics Mode or UMA Frame Buffer Size setting in BIOS Setup, be sure
to disable the CrossFire function in the operating system rst.
