- 23 - Hardware Installation

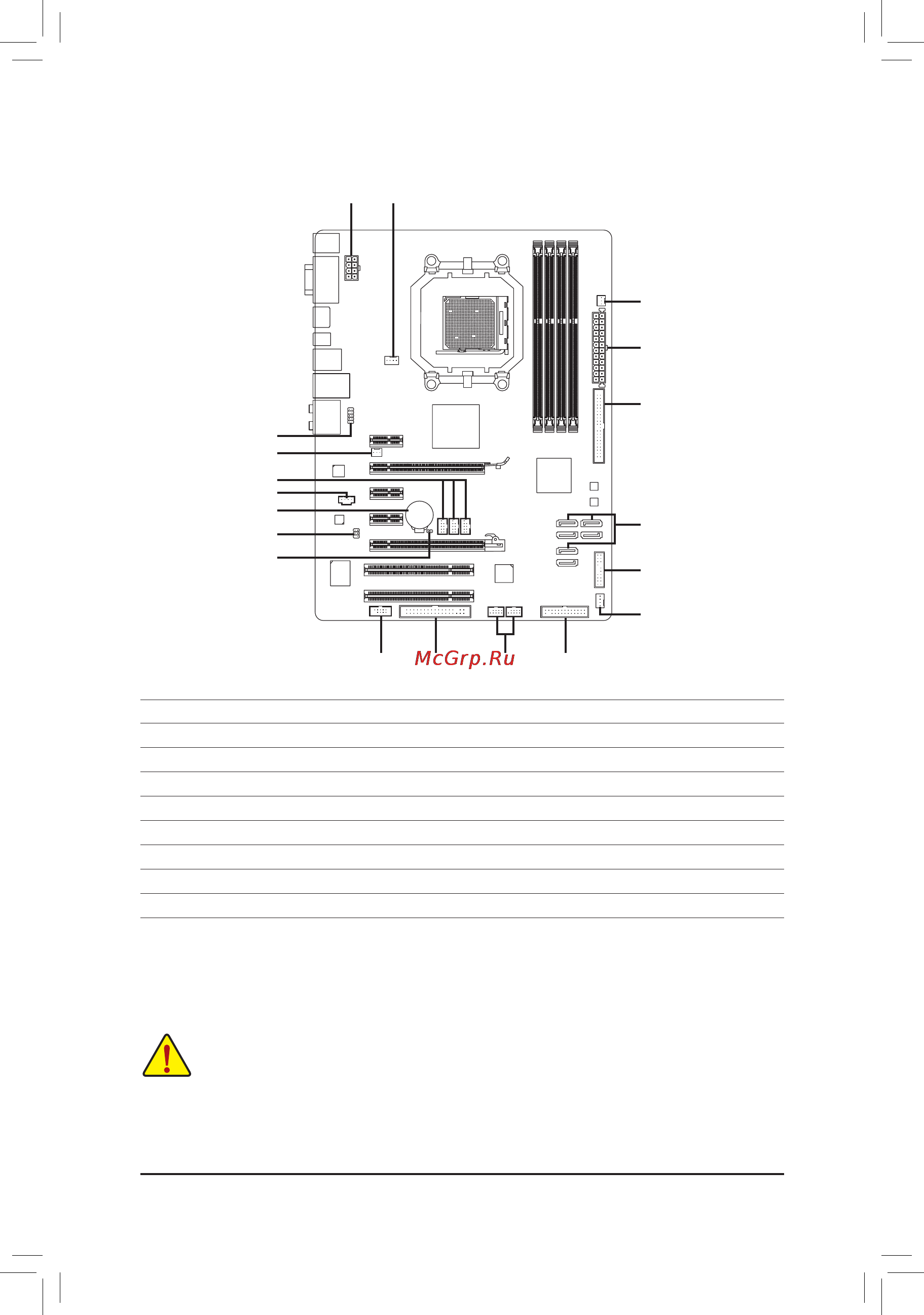

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1
5
3
2
8
7
9
4
16 6
10
12
18
4
14
11
13
15
17
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) F_PANEL
10) F_AUDIO
11) CD_IN
12) SPDIF_IO
13) F_USB1/F_USB2/F_USB3
14) F_1394_1/F_1394_2
15) LPT
16) COM
17) CLR_CMOS
18) BAT
