- 87 - Appendix

Step 3:

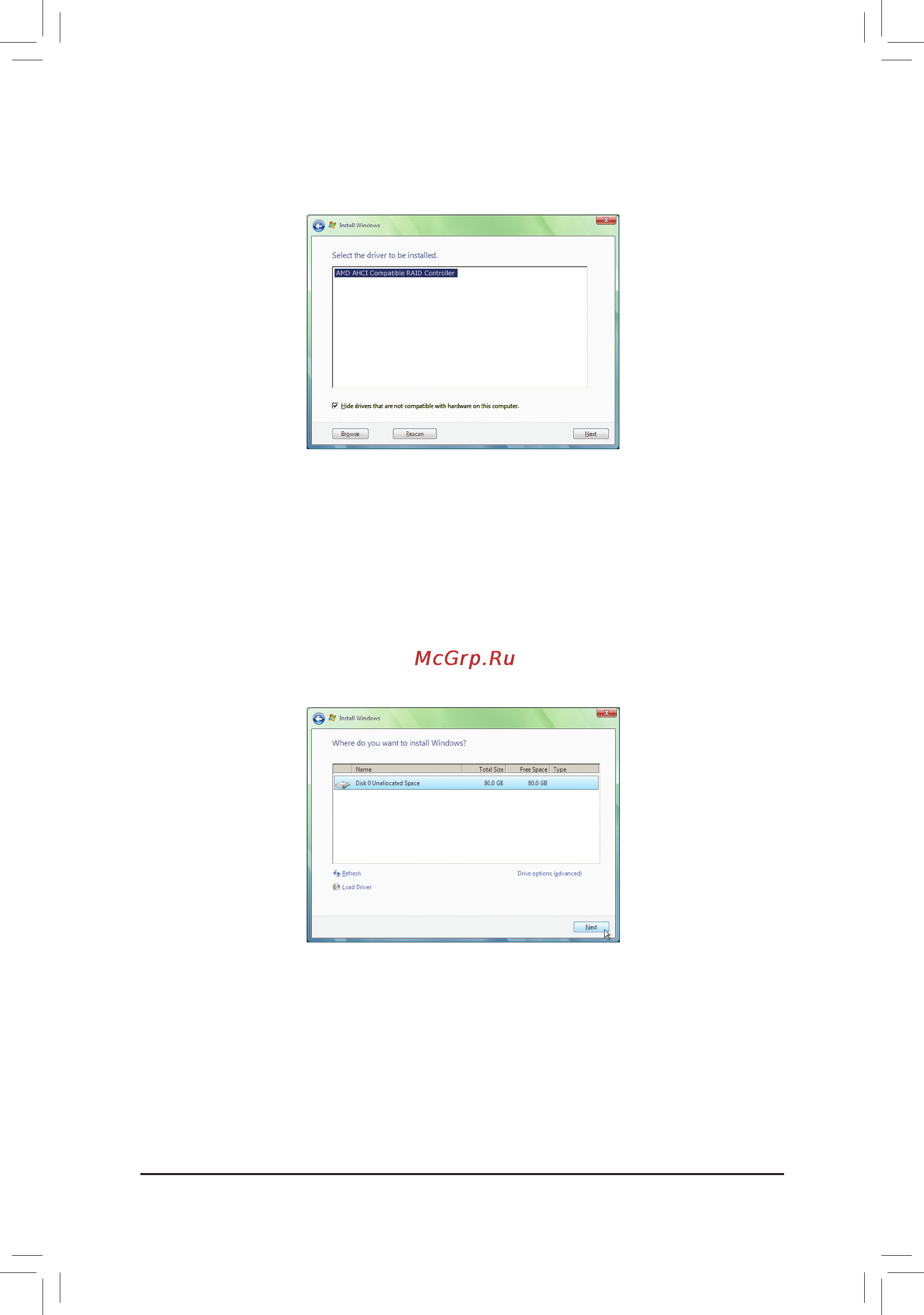

When a screen as shown in Figure 5 appears, select AMD AHCI Compatible RAID Controller and press

Next.

Step 4:

After the driver is loaded, the RAID drive will appear. Select the RAID drive and then press Next to continue

the OS installation (Figure 6).

Figure 5

Figure 6
