DFL-500 User Manual
1
2

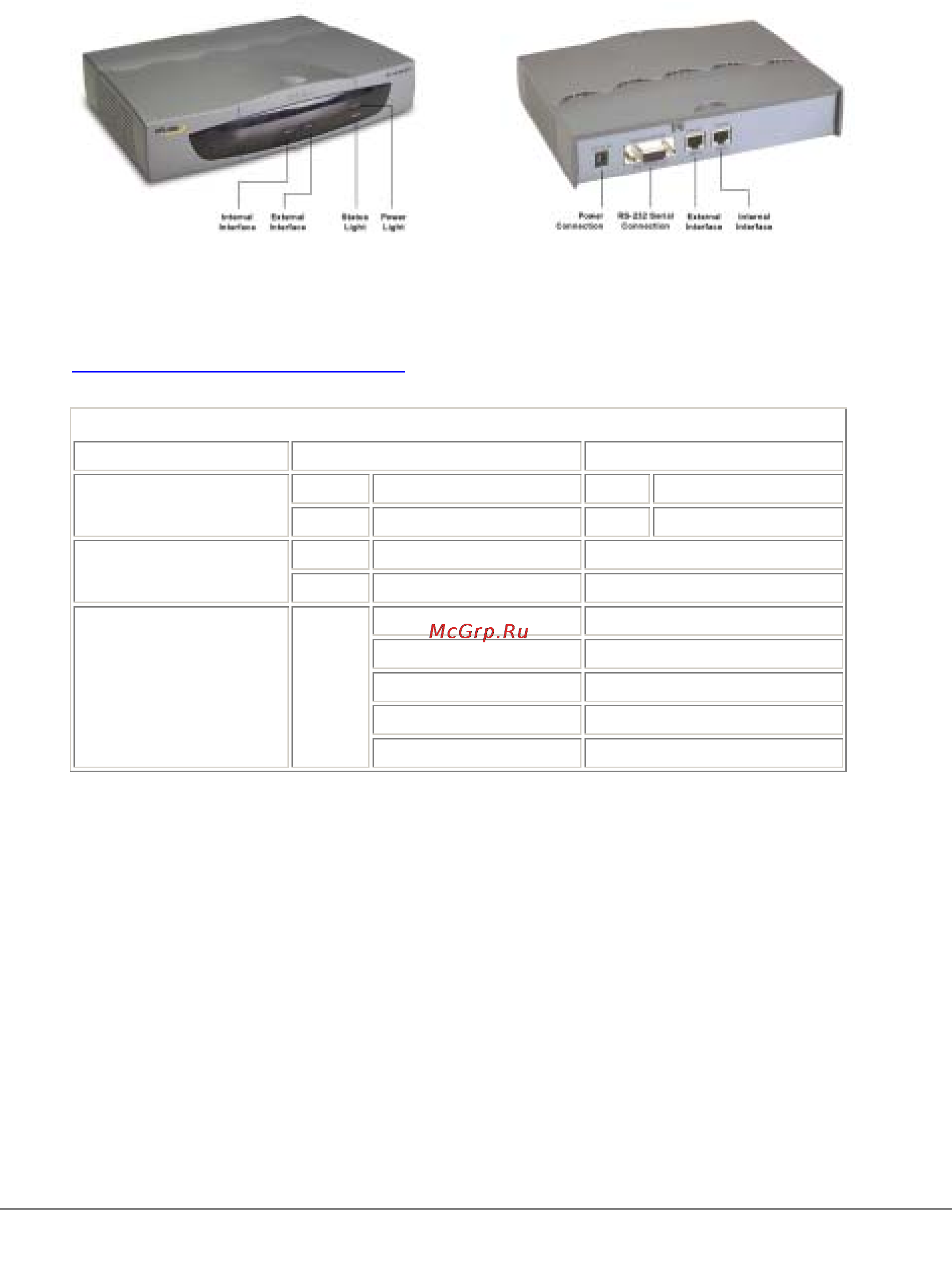

Front and back view of the DFL-500 NPG
Initial configuration
When the DFL-500 NPG is first powered on, it is running in NAT/Route mode and has the basic configuration
listed in DFL-500 NPG initial power on settings
.
DFL-500 NPG initial power on settings
Operating mode:
NAT/Route
User name: admin
Administrator account:
Password: (none)
IP: 192.168.1.99
Internal interface:
Netmask: 255.255.255.0
IP: 192.168.100.99
Netmask: 255.255.255.0
Default Gateway: 192.168.100.1
Primary DNS Server: 207.194.200.1
External interface:
Manual:
Secondary DNS Server: 207.194.200.129
Connecting to the web-based manager
The web-based manager is the primary tool for installing and configuring your DFL-500 NPG. Configuration
changes made with the web-based manager are effective immediately without the need to reset the firewall or
interrupt service.
To connect to the web-based manager you need:
•
a computer with an ethernet connection,
•
Internet Explorer version 4.0 or higher,
•
a crossover cable or an ethernet hub and two ethernet cables.
To connect to the web-based manager:
• Set the IP address of the computer with an ethernet connection to the static IP address 192.168.1.2
and a netmask of 255.255.255.0.
