DFL-500 User Manual

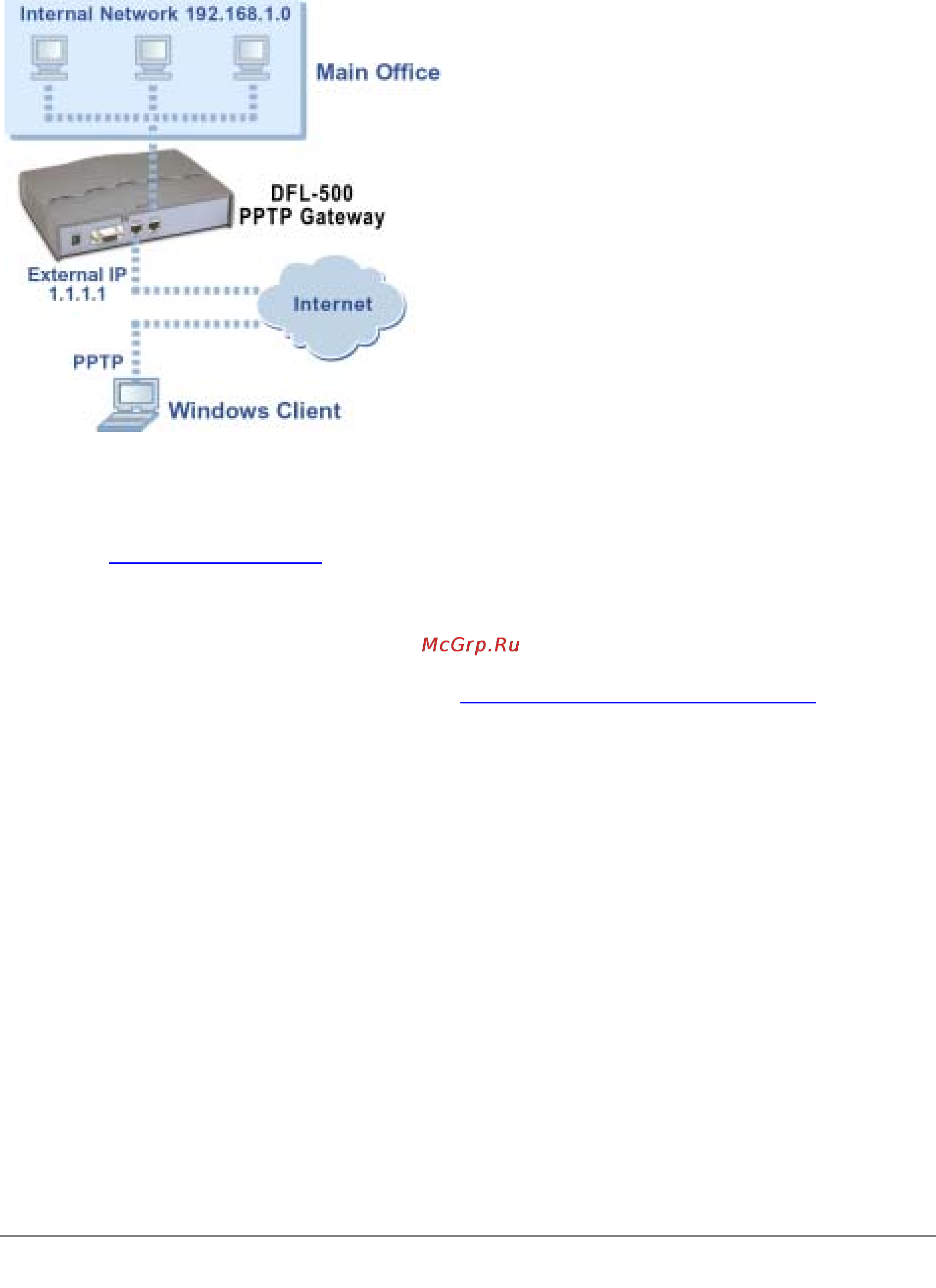

PPTP VPN between a Windows client and the DFL-500 NPG

Configuring the DFL-500 NPG as a PPTP gateway

• Create a user group for your PPTP users.

See Users and authentication

• Go to VPN > PPTP > PPTP Range .

• Select Enable PPTP.

•

Enter the Starting IP and the Ending IP for the PPTP address range.

• Select the User Group that you added in step Create a user group for your PPTP users.

• Select Apply to enable PPTP through the DFL-500 NPG.
