Connect the head unit (HU) to low-level inputs of the ampliﬁer using RCA cable.

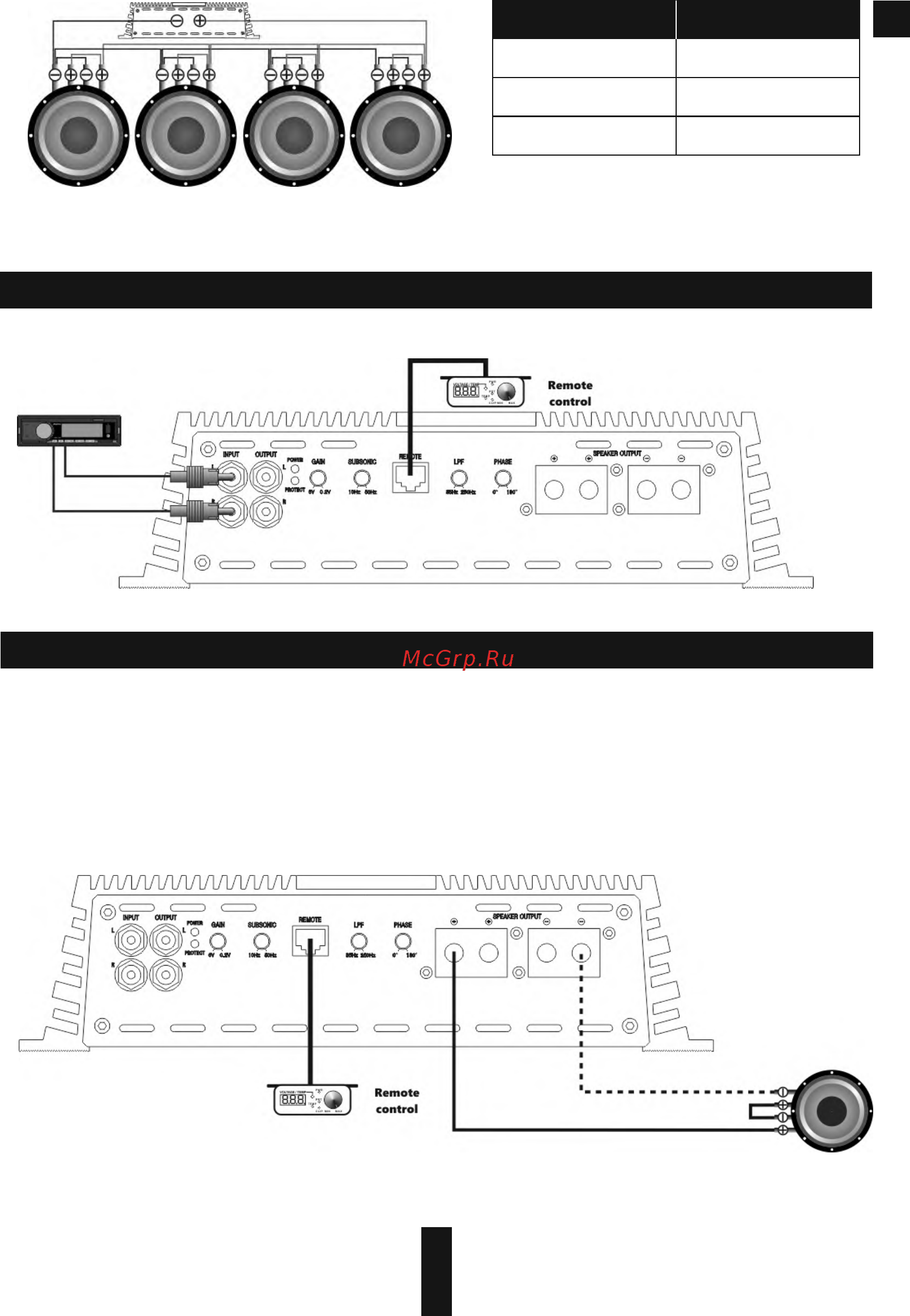

5. WIRING DIAGRAMS

2+2 Ohm

4+4 Ohm

0,5 Ohm

0, 5 Ohm2

1+1 Ohm

0,125 Ohm

Voice coils

Total impedance

Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the ampliﬁer

terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power

cables. The fuse is placed in the holder and ﬁxed in the cable cut. One end of the cable is connected to the positive terminal of the

battery, the second one – to the ampliﬁer terminals marked with + 12V. Be sure to use a fuse with the parameters suﬃcient for use

in the system. The length and diameter of the grounding cable must conform to the length and diameter of the cable + 12V.

Connect one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with

GND.

Stand a rd wir ing d iag ram

Speakers wiring

Step 1. Connect the speaker cable from (+) terminal of the ampliﬁer to (+) terminal of the subwoofer.

Step 2. Connect the speaker cable from (-) terminal of the ampliﬁer to (-) terminal of the subwoofer.

CAUTION!!! The minimum allowable impedance at the output of the ampliﬁer is 1 ohm.

For model AAK-20000.1D the operating voltage is 9-18 V.
