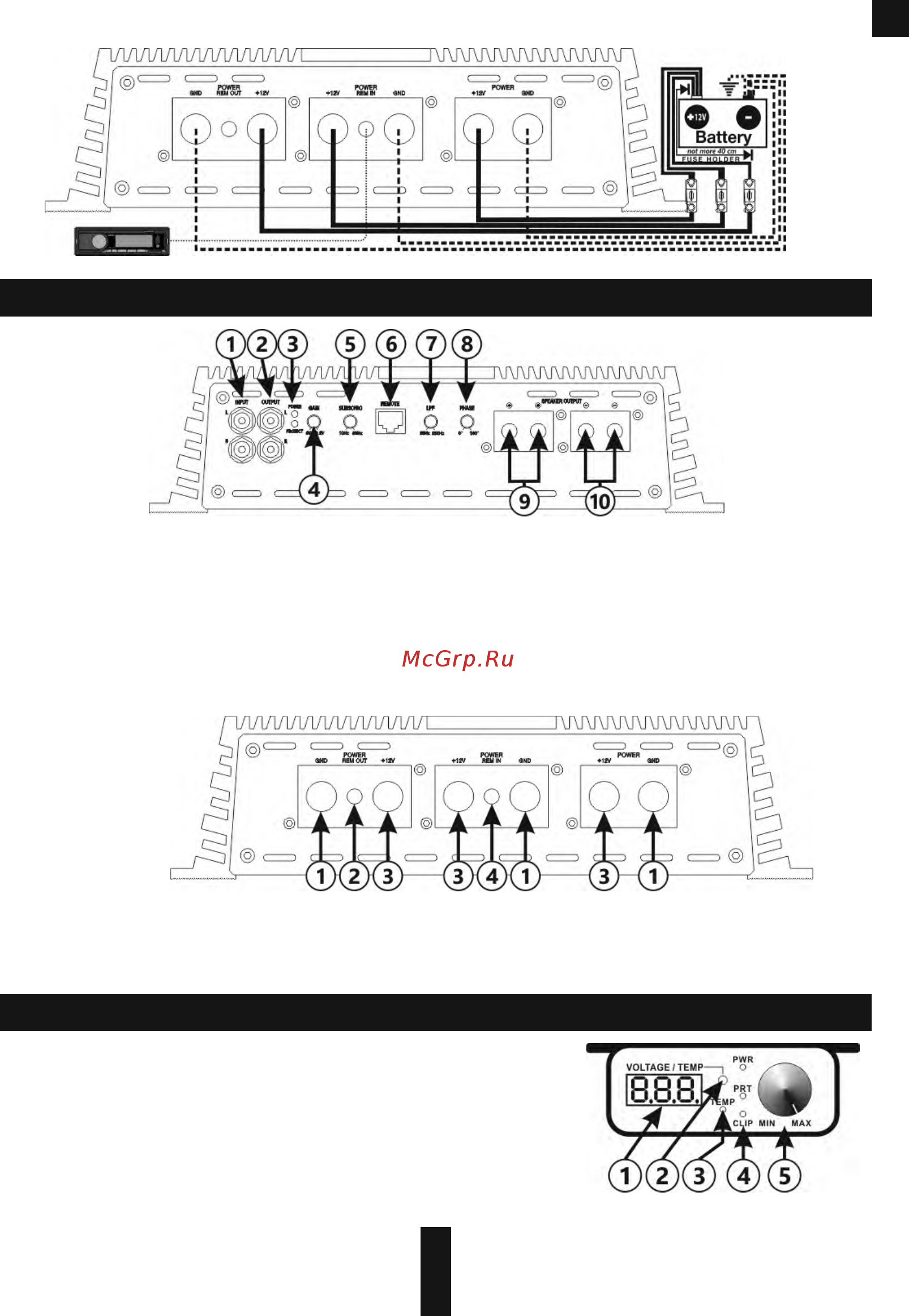

1. INPUT – signal input, RCA jacks

2. OUTPUT – signal output, RCA jacks

3. POWER / PROTECT – LED for operation (green) / LED for protection (red)

4. GAIN – input signal level adjustment 0.2 V - 6 V

5. SUBSONIC – subsonic frequency filter 10 Hz - 50 Hz (12 dB/Oct)

6. REMOTE – input for connection of the bass remote control

7. LPF – low pass filter 35 Hz - 250 Hz (12 dB/Oct)

8. PHASE - phase shifter 0° - 180°

9. SPEAKER OUTPUT “+” – speaker positive terminal connections

10. SPEAKER OUTPUT “-” – speaker negative terminal connections

1. GND - grounding supply terminal «-»

2. REM OUT – connector of remote activation of the next ampliﬁer

3. +12V – power supply terminal (+12V)

4. REM IN – connector of remote activation of the ampliﬁer

Application of connectors and controls

Remote control

1. LED-Display - displays voltage or temperature readings

2. VOLTAGE/TEMP - button to switch between voltage and temperature

readings display

3. TEMP - temperature protection LED

4. PWR - power LED, PRT - general protection LED, CLIP - clip LED

5. Input signal controller
