5. WIRING DIAGRAMS
Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the amplifier
terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power
cables. The fuse is placed in the holder and fixed in the cable cut. One end of the cable is connected to the positive terminal of the
battery, the second one – to the amplifier terminals marked with + 12V. Be sure to use a fuse with the parameters sufficient for use
in the system. The length and diameter of the grounding cable must conform to the length and diameter of the cable + 12V.
Connect one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with
GND. Connect the head unit (HU) to low-level inputs of the amplifier using RCA cable.
Use the table below to select the desired diameter based
on the length and the current consumption.
Use the table below to select the desired diameter based
on the length and the power consumption.
240-350
180-240
150-180
120-150
100-120
80-100
60-80
40-60
20-40
8-20
0-8
0-1 1-2 2-3 3-4 4-5 5-6 6-7 7-8
53,5
33,6
21,2
8,4
5,3
3,3
2,1
1,3
0,8
1/0
2
4
8
10
12
14
16
18
A.W.G
mm²
Diameter
Cable length (m)
Consumption current (А)
20 000
25 000
15 000
10 000
8000
6000
4000
2000
1000
500
250
100
0-1 1-2 2-3 3-4 4-5 5-6 6-7
Cable length (m)
Power consumption (W)
7-8
16,8
8,37
5,26
2,08
5
8
10
14
A.W.G
mm²
Size
4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES
Se l ec tio n of th e dia met er of t he po wer c abl es Se l ec tio n of th e dia met er of t he sp eak er ca ble s

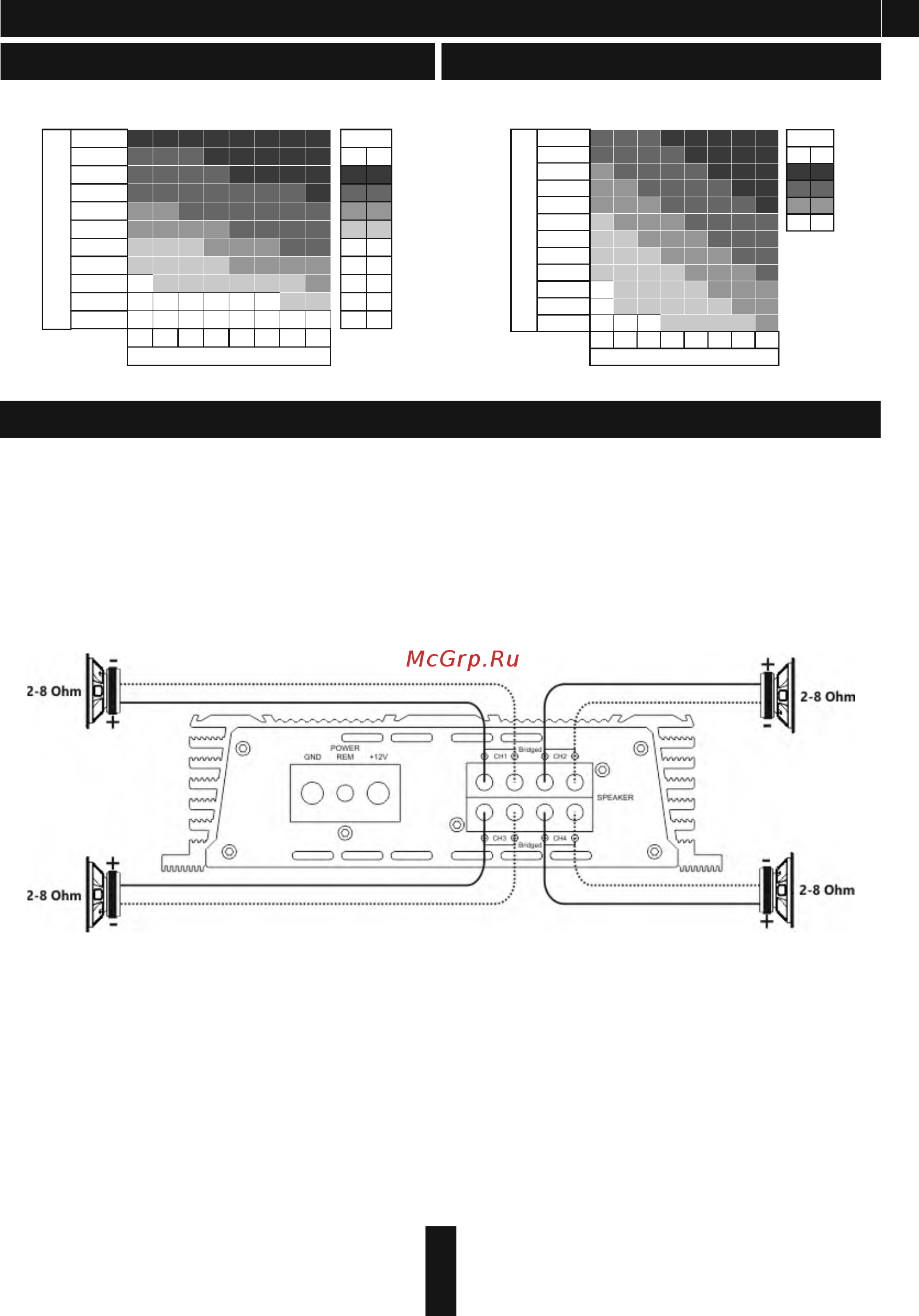

Standard wiring diagram of four-channel amplifier to four speakers.
Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.
Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.
Caution!!! The minimum permissible load impedance for single channel connection is 2 ohm.
For models AAK-201.4D the operating voltage is 10-15 V.
Standard wiring diagram of four-channel amplifier to two speakers and to one subwoofer.
Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.
Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.
Step 3. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the subwoofer.
Step 4. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the subwoofer.
