Caution!!! The minimum permissible load impedance for bridged connection is 4 Ohms
EN

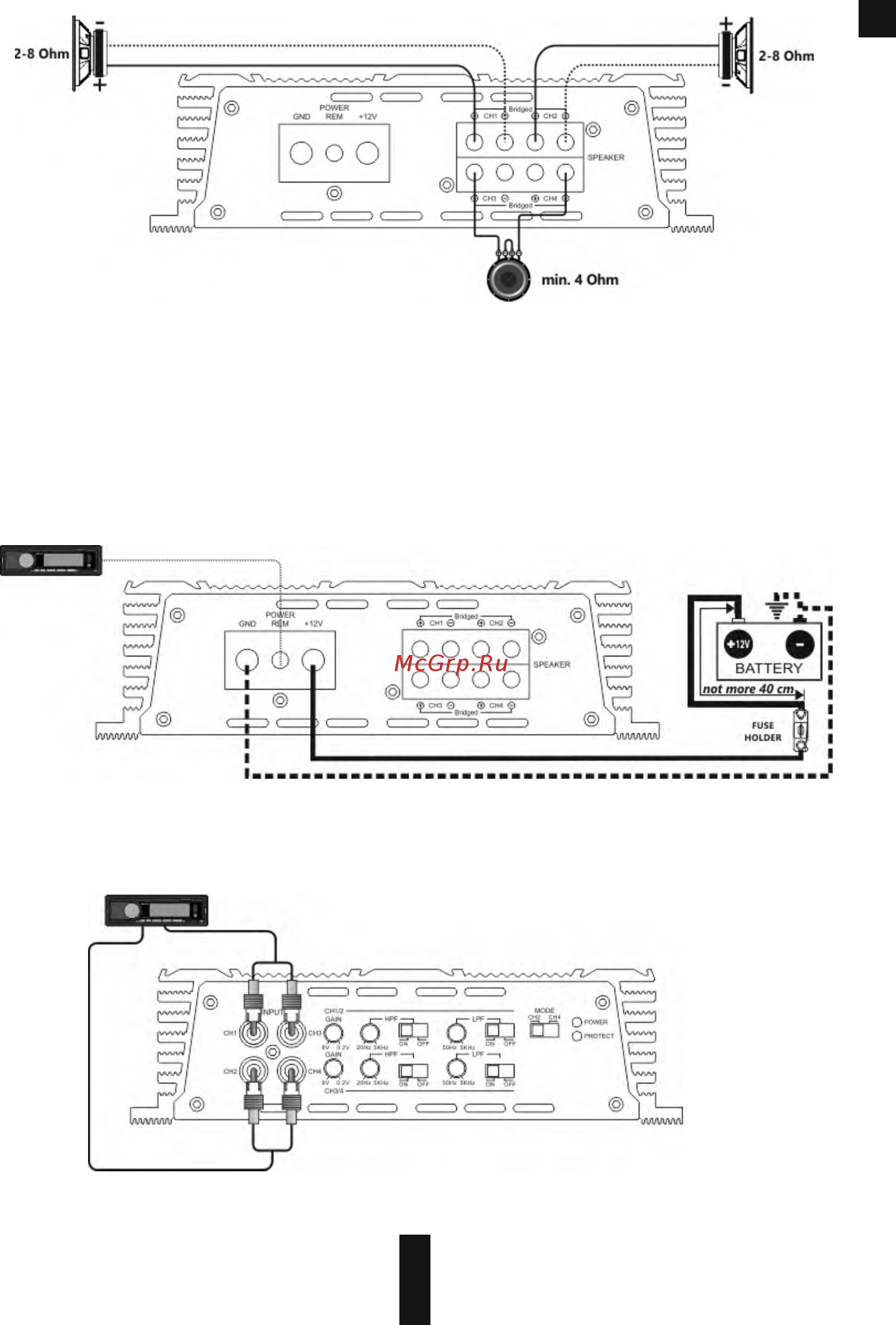

Standard wiring diagram of four-channel amplifier to battery.
Step 1. Connect one end of the power cable from (+) terminal of the battery and the second end to the amplifier terminal marked
with + 12V. Do not forget to protect positive power cable with appropriate fuse.
Step 2. Connect one end of the power cable from (-) terminal of the battery and the second end of the grounding cable to the
terminals marked with GND.
Step 3. Connect one end of the cable to the Remote output terminal at the HU and the second end to the amplifier terminal marked
with REM.
Standard wiring diagram of four-channel amplifier to Head Unit.
Step 1. Connect one end of the RCA cable to the RCA output terminals at the HU and the second end to the amplifier RCA inputs
terminals marked with INPUT.
