Introduction

This Quick Installation Guide gives instructions for setting up the D-Link DMS-1100-10TP / DMS-1100-10TS

switch. The model you have purchased may appear slightly different from those shown in the illustrations.

For more detailed information about the device, its components, making network connections and technical

specifications, please refer to the User Manual.

Package Contents

These are the items included with your DMS-1100-10TP / DMS-1100-10TS purchase:

• DMS-1100-10TP / DMS-1100-10TS switch

• CD ROM

If any of the above items are damaged or missing, please contact your local reseller for replacement.

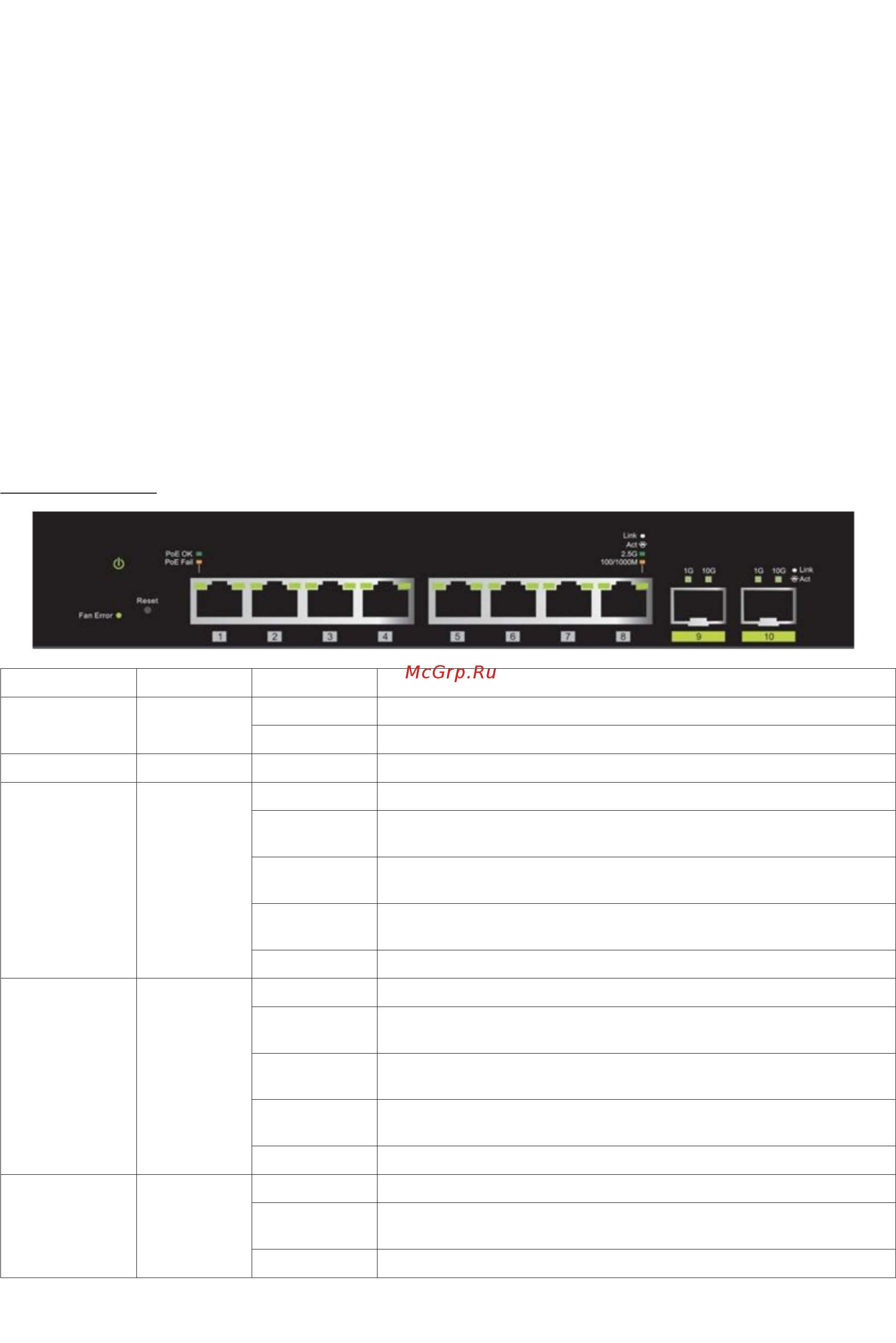

Hardware Overview

LED Indicators

LED Indicative Colour Status Description

Power Green Solid Light Power on

Light off Power off

Fan Error Red Solid light The fan has runtime failure and is brought offline

Link/Act/Speed

(2.5GBASE-T

Green/Amber Solid Green When there is a secure 2.5Gbps connection (or link) at any of the ports

occurring at any of the ports

Light off No link

Link/Act/Speed

(SFP+ Port)

Green/Amber Solid Green When there is a secure 10Gbps connection (or link) at any of the ports

Blinking Green When there is reception or transmission (i.e. Activity-Act) of data

occurring at any of the ports

Solid Amber When there is a secure 1000Mbps Ethernet connection (or link) at any of

the ports

Blinking Amber When there is reception or transmission (i.e. Activity-Act) of data

occurring at any of the ports

Light off No PD device insert
