Connecting to Power

Power Failure

As a precaution, the switch should be unplugged in case of power failure. When power is resumed, plug the

switch back in.

Grounding the Switch

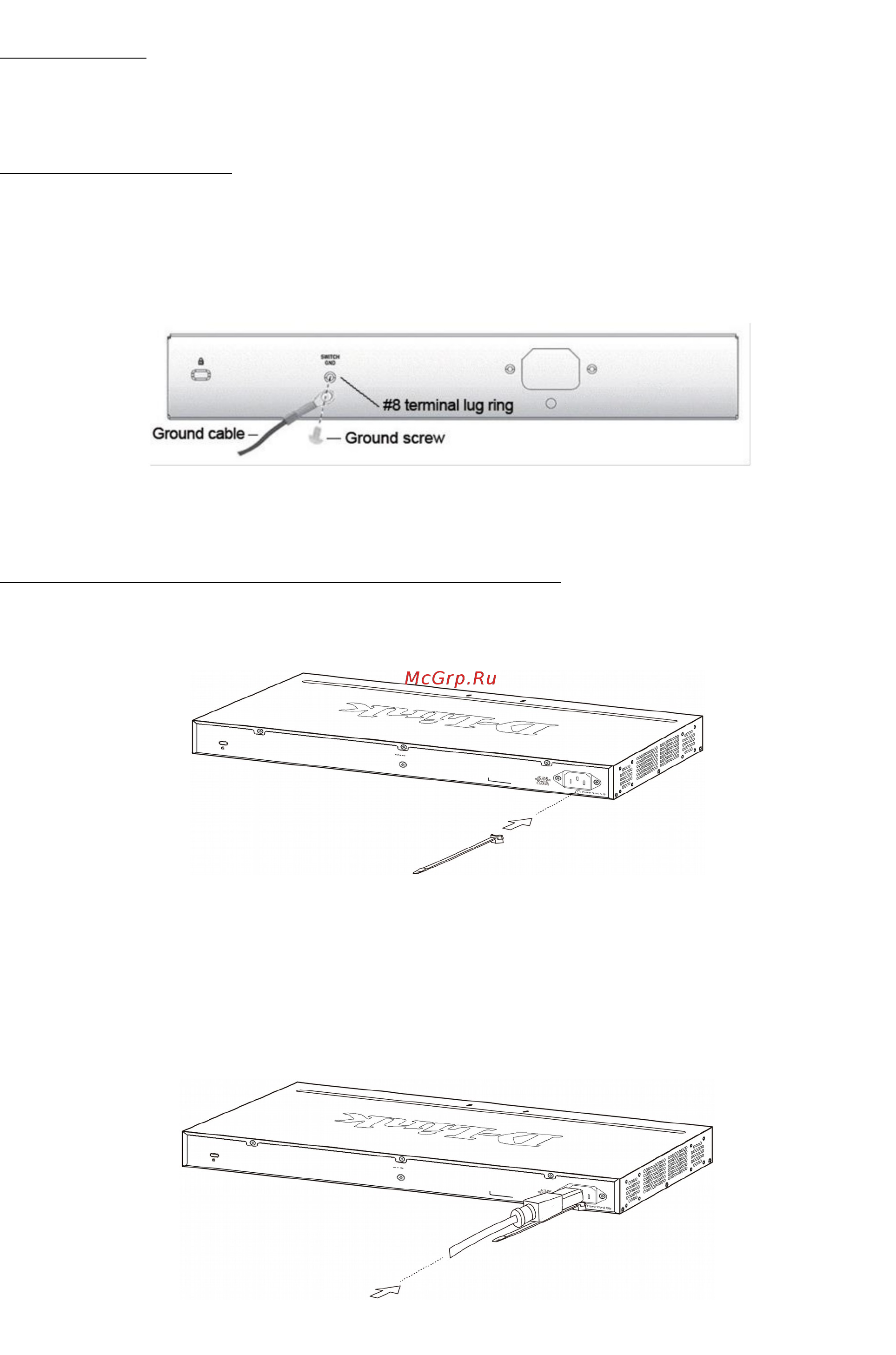

The following steps explain the procedure for connecting the switch to a protective ground:

1. Verify if the system power is off.

2. Using a screwdriver, tighten the ground screw to secure the ground cable to the switch.

3. Attach the terminal lug ring at the other end of the grounding cable to an appropriate grounding source.

4. Verify if the connections at the ground connector on the switch and the rack are securely attached.

Plugging in the AC Power Cord with Power Cord Clip

A) With the rough side facing down, insert the Tie Wrap into the hole below the power socket.

B) Plug the AC power cord into the power socket of the Switch.
