D-Link DES-1100-06MP [12/30] Fundamentals

D-Link Web Smart Switch User Manual

Fundamentals

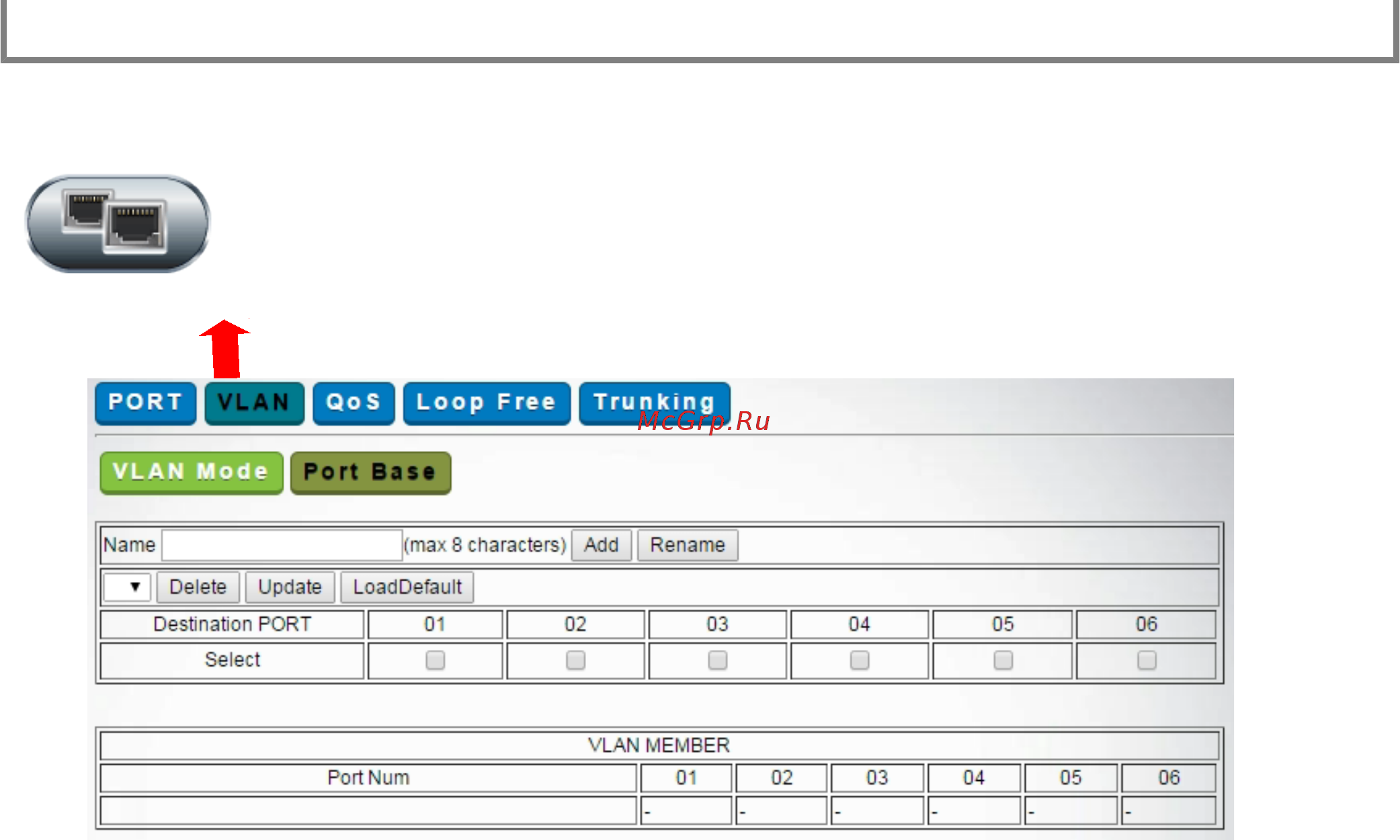

Default VLAN mode is Port Base. Click “VLAN ” ->“ Port Base ” to complete

other settings.

What is Port Base VLAN?

Ports that are assigned to a VLAN group will send and receive broadcast and

multicast traJc within

this virtual LAN only. A VLAN (user can add name to it) is an individual

broadcasting domain. Generally, one VLAN group may be created for one function

department (or sector…) which is not preferred to be inFuenced by the traJc from

the other function department (or sector…).

This Switch allows totally 8 port based VLANs to be created.
