1 Product Introduction D-Link Web Smart Switch User Manual
4
Pwr OK: The Pwr OK led solid indicates a PoE connection to a good power source.
Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous
changes will be lost.
Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.
CAUTION: The MiniGBIC ports should use UL
listed Optical
Transceiver product, Rated Laser Class I. 3.3Vdc.
CAUTION: This equipment can
be connected only to PoE
networks without routing to the outside plant.

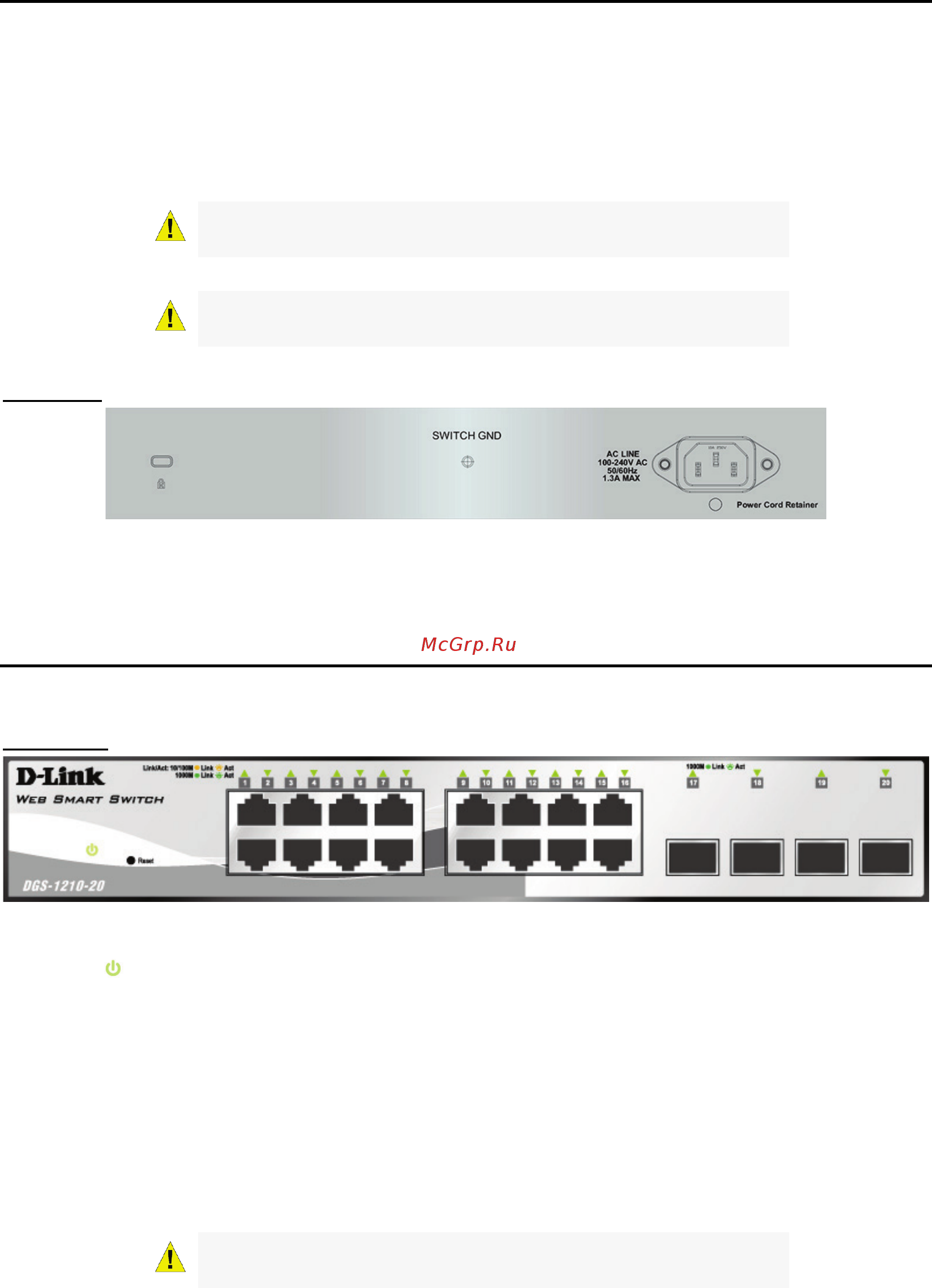

Rear Panel
Figure 1.4 – DGS-1210-10P Rear Panel
Power: Connect the supplied AC power cable to this port.
DGS-1210-20
16-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart Switch.
Front Panel
Figure 1.5 – DGS-1210-20 Front Panel
Power LED
: The Power LED lights up when the Switch is connected to a power source.
Port Link/Act/Speed LED (1-16): The Link/Act/Speed LED flashes, which indicates a network link through
the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port.
When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green
light it is running on 1000M.
Port Link/Act/Speed LED (17F, 18F, 19F, 20F): The Link/Act/Speed LED flashes, which indicates a
network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving
data to the port. When a port has a green light, this indicates that the port is running on 1000M.
Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous
changes will be lost.
CAUTION: The MiniGBIC ports should use UL
listed Optical
Transceiver product, Rated Laser Class I. 3.3Vdc.
