D-Link DGS-1210-10 rev.C [31/117] Configuration backup and restore

4 Configuration D-Link Web Smart Switch User Manual

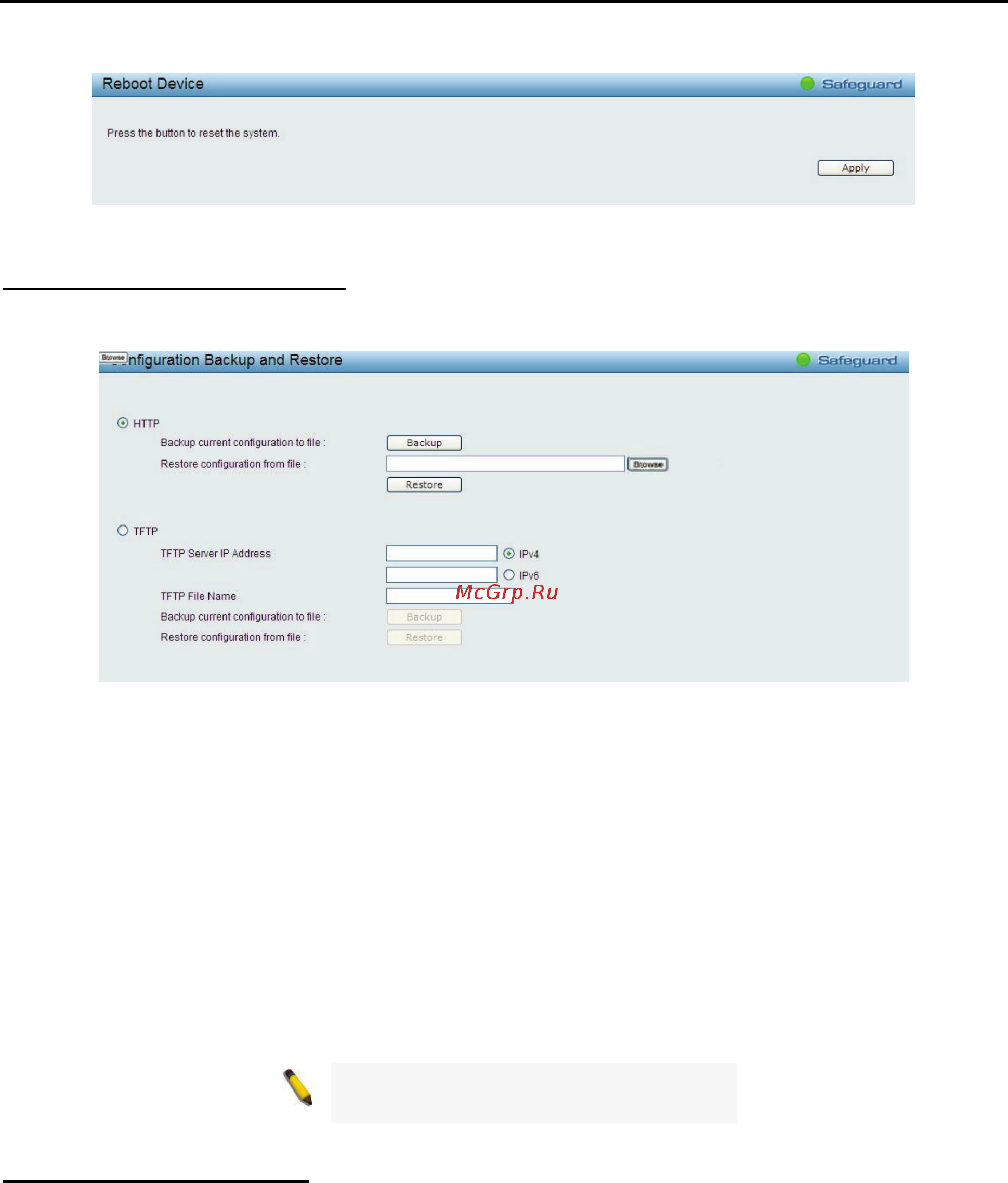

Figure 4.12 – Tool Menu > Reboot Device

Configuration Backup and Restore

Allow the current configuration settings to be saved to a file (not including the password), and if necessary,

you can restore configuration settings from this file. Two methods can be selected: HTTP or TFTP.

Figure 4.13 – Tool Menu > Configure Backup and Restore

HTTP: Backup or restore the configuration file to or from your local drive.

Click Backup to save the current settings to your disk.

Click Browse to browse your inventories for a saved backup settings file.

Click Restore after selecting the backup settings file you want to restore.

TFTP: TFTP (Trivial File Transfer Protocol) is a file transfer protocol that allows you to transfer files to a

remote TFTP server. Specify TFTP Server IP Address with IPv4 or IPv6 address and TFTP File Name for

the configuration file you want to save to / restore from.

Click Backup to save the current settings to the TFTP server.

Click Restore after selecting the backup settings file you want to restore.

Note: Switch will reboot after restore, and

all current configurations will be lost

Firmware Backup and Upgrade

Allow for the firmware to be saved, or for an existing firmware file to be uploaded to the Switch. Two methods

can be selected: HTTP or TFTP.
