1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual

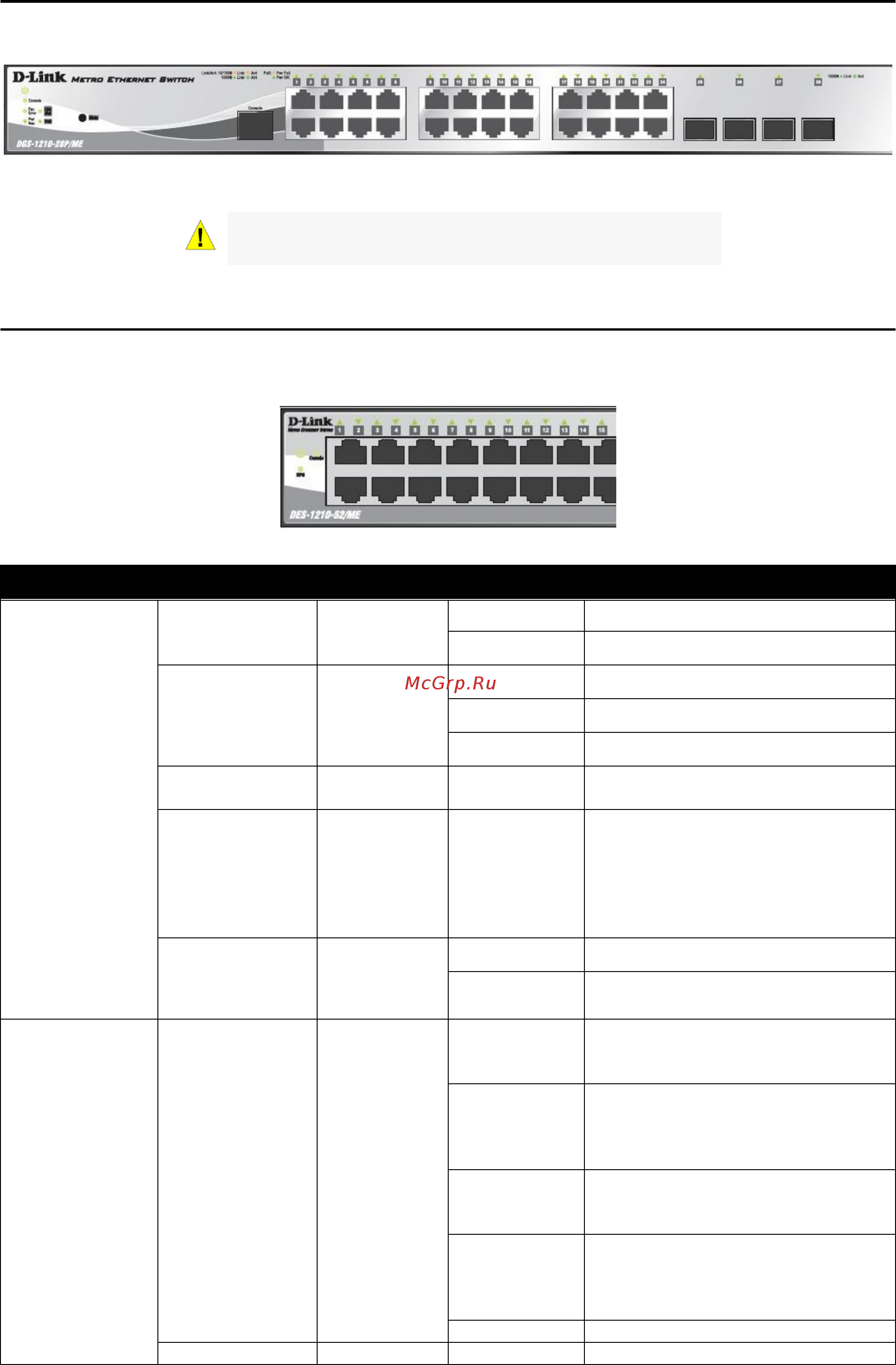

Figure 1.5 – DGS-1210-28P/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
LED Indicators
The Switch supports LED indicators for Power, Console, Fan, and Link/Act for each port. The following
shows the LED indicators for the DGS-1210/ME Metro Ethernet Switch along with an explanation of each
indicator.
Figure 1.6 –LED Indicators on DGS-1210/ME SERIES
Location
LED Indicative
Color
Status
Description
Per Device
Power
Green
Solid Light
Power on.
Light off
Power off.
Console
Green
Solid Light
Console on.
Blinking
POST is in progress.
Light off
Console off.
Fan Error
Red
Solid light
The fan has runtime failure and is
brought offline.
Pwr Max.
Red
Solid light
The Pwr Max LED lights up when the
Switch reaches the maximum power
budget defined by the administrator
via PoE System Settings page of
Web GUI or the default power budget
of 78 Watts.
RPS
(DGS-1210-10/ME
only)
Green
Solid Light
RPS power on.
Light off
RPS power off.
LED Per
10/100/1000Mbps
Copper Port
Link/Act
Green/Amber
Solid Green
When there is a secure 1000Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Green
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 1000Mbps
Ethernet connected port.
Solid Amber
When there is a secure 10/100Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Amber
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 10/100Mbps
Ethernet connected port.
Light off
No link.
PoE Mode
Green
Solid Light
Power feeding
