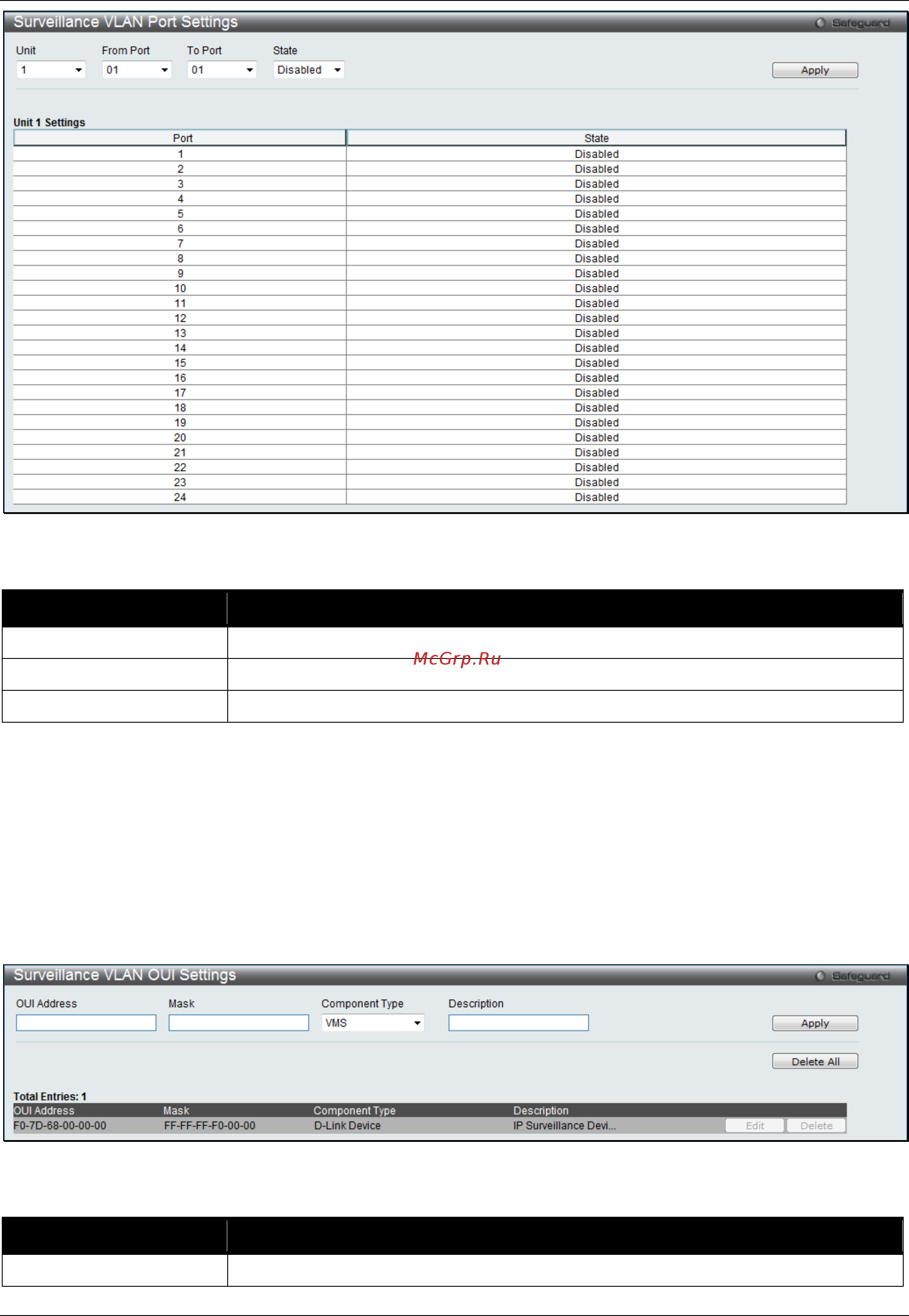

Figure 4-24 Surveillance VLAN Port Settings window

The fields that can be configured are described below:

Parameter

Description

Unit

Select the unit you want to configure. (EI and SI Mode Only)

From Port / To Port

Use the drop-down menu to select a range of port to display.

State

Use the drop-down menu to enable or disable the state of the port.

Click the Apply button to accept the changes made.

Surveillance VLAN OUI Settings

This window is used to configure the user-defined surveillance traffic’s OUI. The OUI is used to identify the

surveillance traffic. There are a number of pre-defined OUIs. The user can further define the user-defined OUIs if

needed. The user-defined OUI cannot be the same as the pre-defined OUI.

To view the following window, click L2 Features > VLAN > Surveillance VLAN > Surveillance VLAN OUI

Settings, as shown below:

Figure 4-25 Surveillance VLAN OUI Settings window

The fields that can be configured are described below:

Parameter Description

OUI Address

User defined OUI MAC address.
