D-Link DAP-3320 [10/142] Hardware overview

5D-Link DAP-3320 User Manual

Section 1 - Product Overview

Hardware Overview

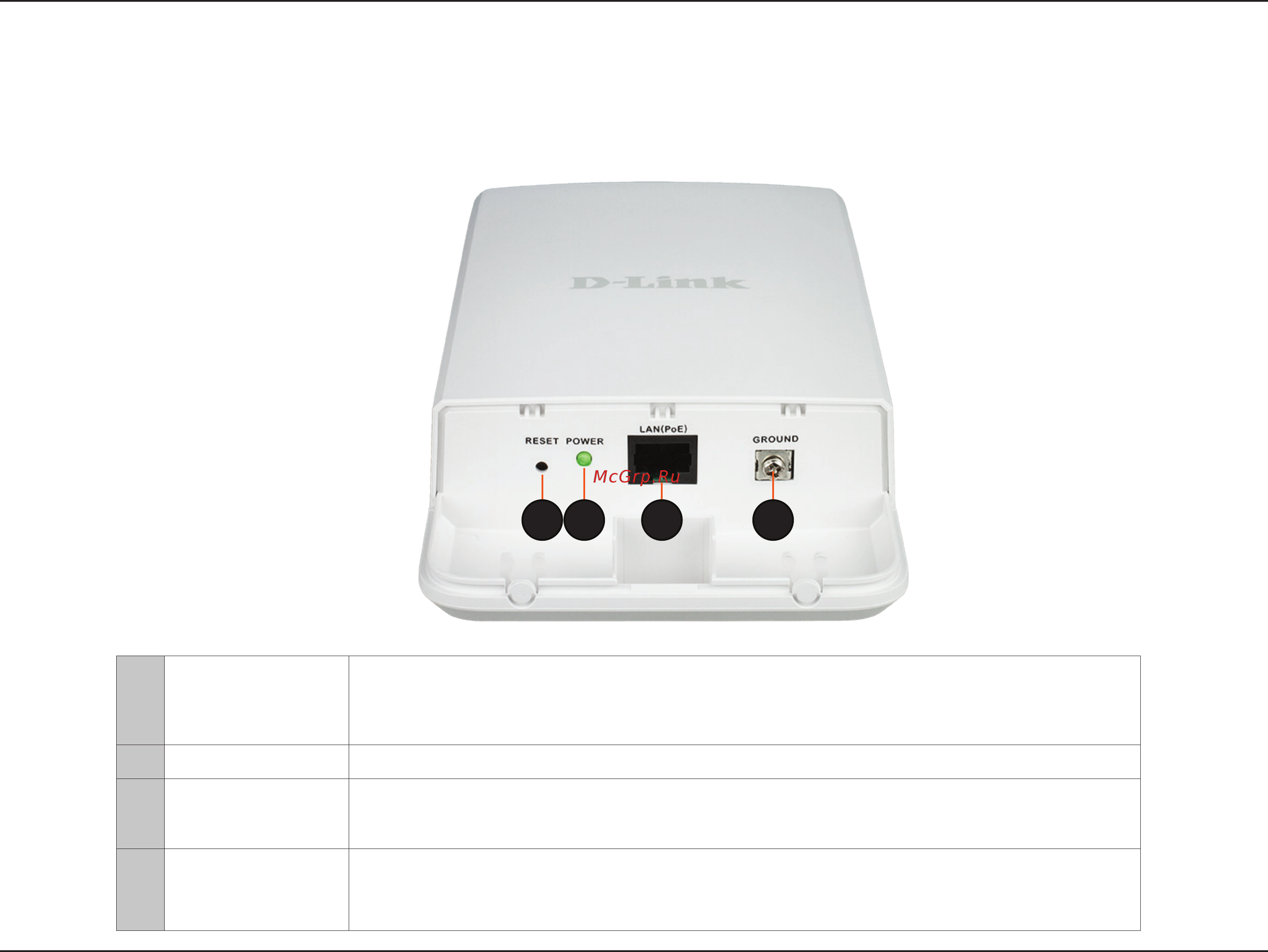

Bottom Panel

1 Reset button

Hold the reset button for at least 5 seconds to reset the device back to the

factory default settings. The LED will turn on for 2 seconds and then begin

the reboot process.

2 LED A solid green light indicates the device is powered and operational.

10/100 LAN

(PoE) port

Power is supplied to this port via a LAN cable that is connected to the PoE

injector.

Grounding

Wire Screw

Terminal

Connect a grounding wire to help prevent device damage due to shorts and

lightning strikes.

1 2 3 4
