D-Link DCS-4622 [7/18] Mounting instructions

ENGLISH

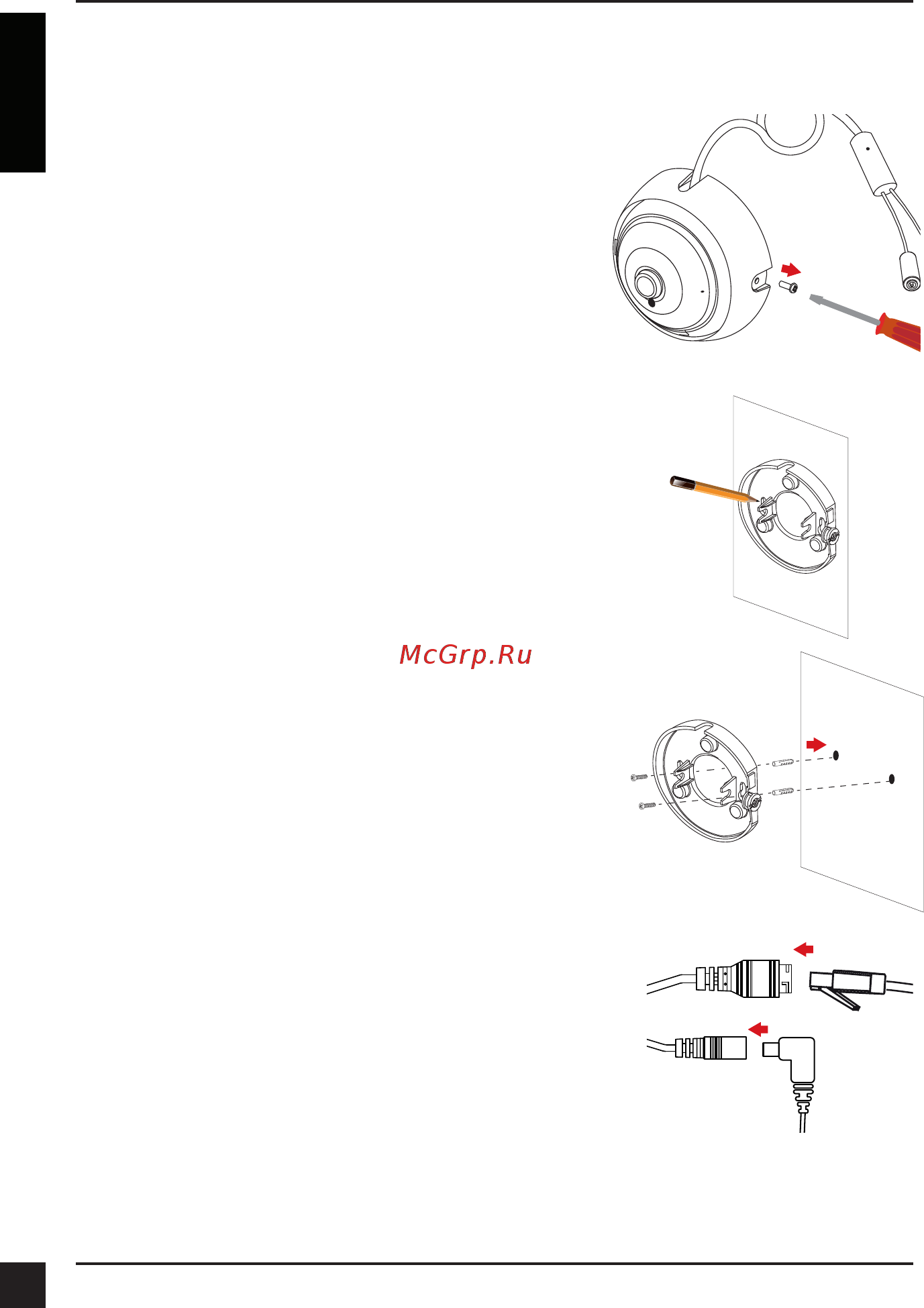

Mounting Instructions

It is highly recommended that you configure and test your camera before

mounting it.

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Place the mounting plate where you want to

position the camera and use a pencil to mark the

two mounting holes.

If you wish to run the camera cables through

the wall or ceiling, mark the center hole as well.

Use a screwdriver to unscrew the tilt adjustment

screw. Pull the mounting plate away from the

camera mount.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall

anchors into the holes. Use the screws provided to

attach the mounting bracket to the wall.

If you wish to run the camera cables through

the wall or ceiling, drill the center hole for the

camera cables to pass through.
