D-Link DCS-6517 Quick Install Guide

ENGLISH

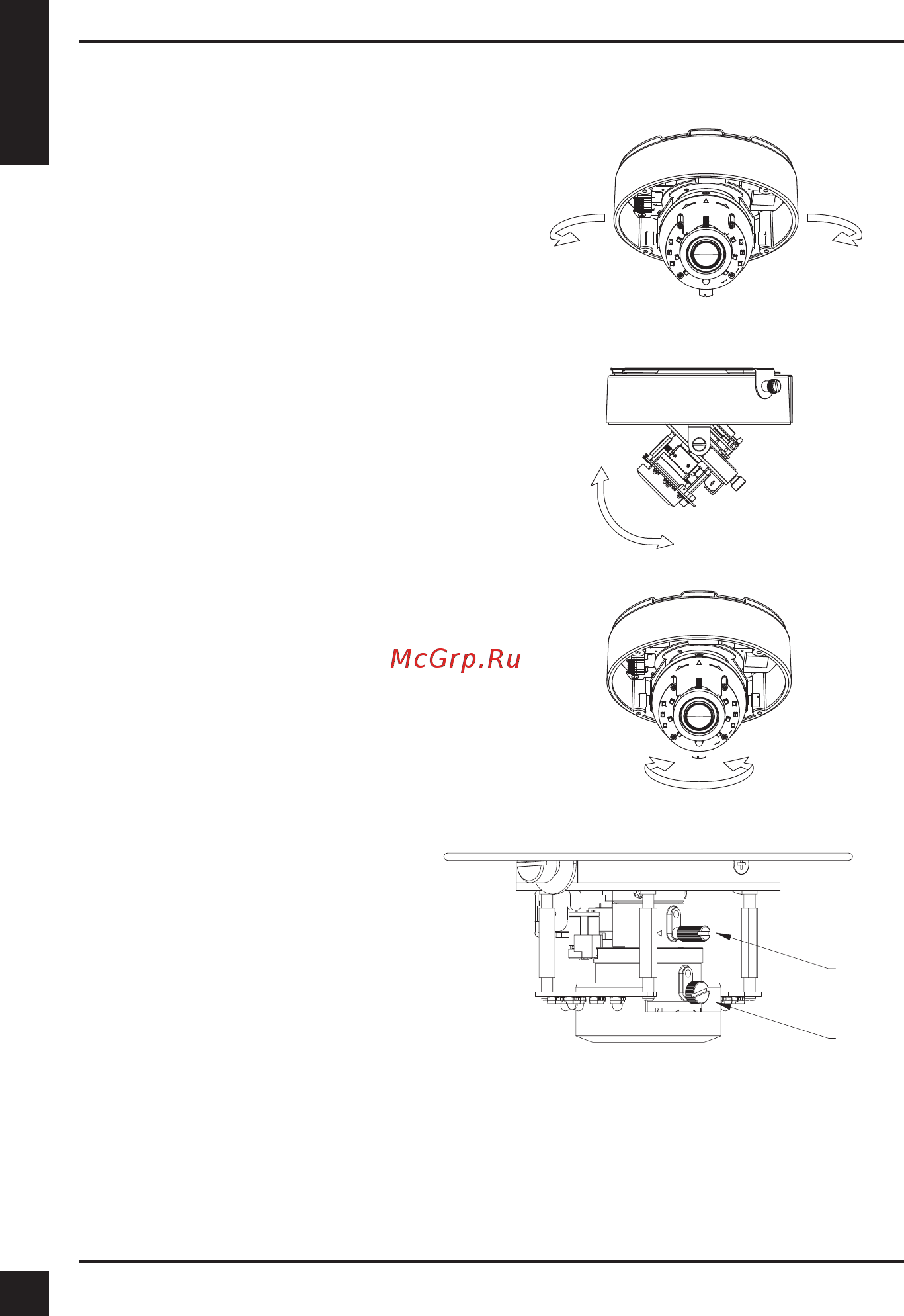

Adjust the Viewing Angle of the 3-axis

Mechanism

Turn the lens module left and right until the

desired position is achieved; tighten the pan

screw once completed.

Loosen the tilt screws on both sides of the

camera, and turn the lens module up and down

until the desired position is achieved; tighten

the tilt screws once completed.

Turn the lens to adjust the IP camera’s image

until the desired orientation is achieved, tighten

the image adjustment screw once completed.

6. Adjusting the lens 3-axis angle

Rotate 360 °

Zoom

Focus

Pan 360 °

Additional Information

Additional help is available through our offices listed at the back of the User’s Guide or online. To

know more about D-Link products or marketing information, please visit the website http://www.

dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.

Tilt 60 °
