D-Link DUB-1312 [4/24] Product setup

DUB-1312

ENGLISH

PRODUCT SETUP

Step 1:

Plug the DUB-1312’s USB cable into an available USB port on your computer. If available, you

should use a USB 3.0 port in order to achieve the fastest possible transfer speeds.

Step 2:

Attach an Ethernet cable to the Ethernet port on the DUB-1312.

Step 3:

Attach the other end of the Ethernet cable to your network switch, hub, or router.

Step 4:

Windows will detect the new hardware and prompt you for the drivers.

For Windows 7 and Vista:

The driver software installation will start automatically.

For Windows XP:

The Found New Hardware Wizard box will pop up. Select Yes, this time only and click

Next to continue.

On the next screen,

choose the option to install the software automatically and click

Next to continue. The driver software installation will then start automatically.

When the installation of the DUB-1312 is complete, the LINK LED should be solid green, indicating a

good physical connection between the DUB-1312 and the network, and will ash when data is being

sent or received. The Connection Speed LED will light solid to indicate a Gigabit connection, or remain

unlit to indicate a 10/100 Mbps connection. If both LEDs are unlit, there may be a problem with the

physical connection. Check the cables between your DUB-1312, the computer, and the network. Verify

that your network switch, hub, or router is powered on.

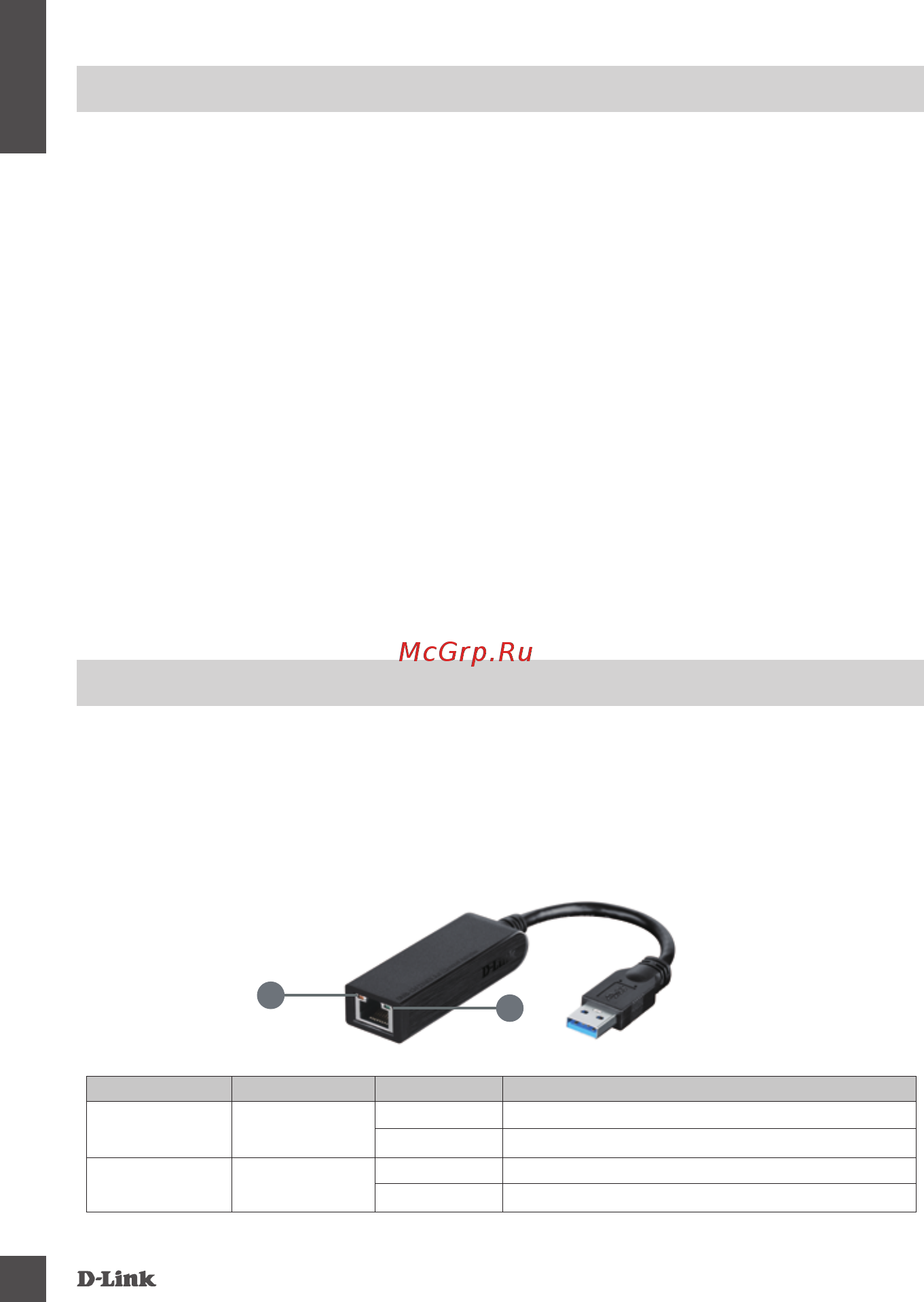

HARDWARE INSTALLATION

Number Indication Status Description

1 Connection Speed

Solid 1 Gbps connection present

O 10/100 Mbps connection present

2 Link/ACT

Solid An active connection is present

Flashing Data is being transmitted/received

INSTALLATION COMPLETE
