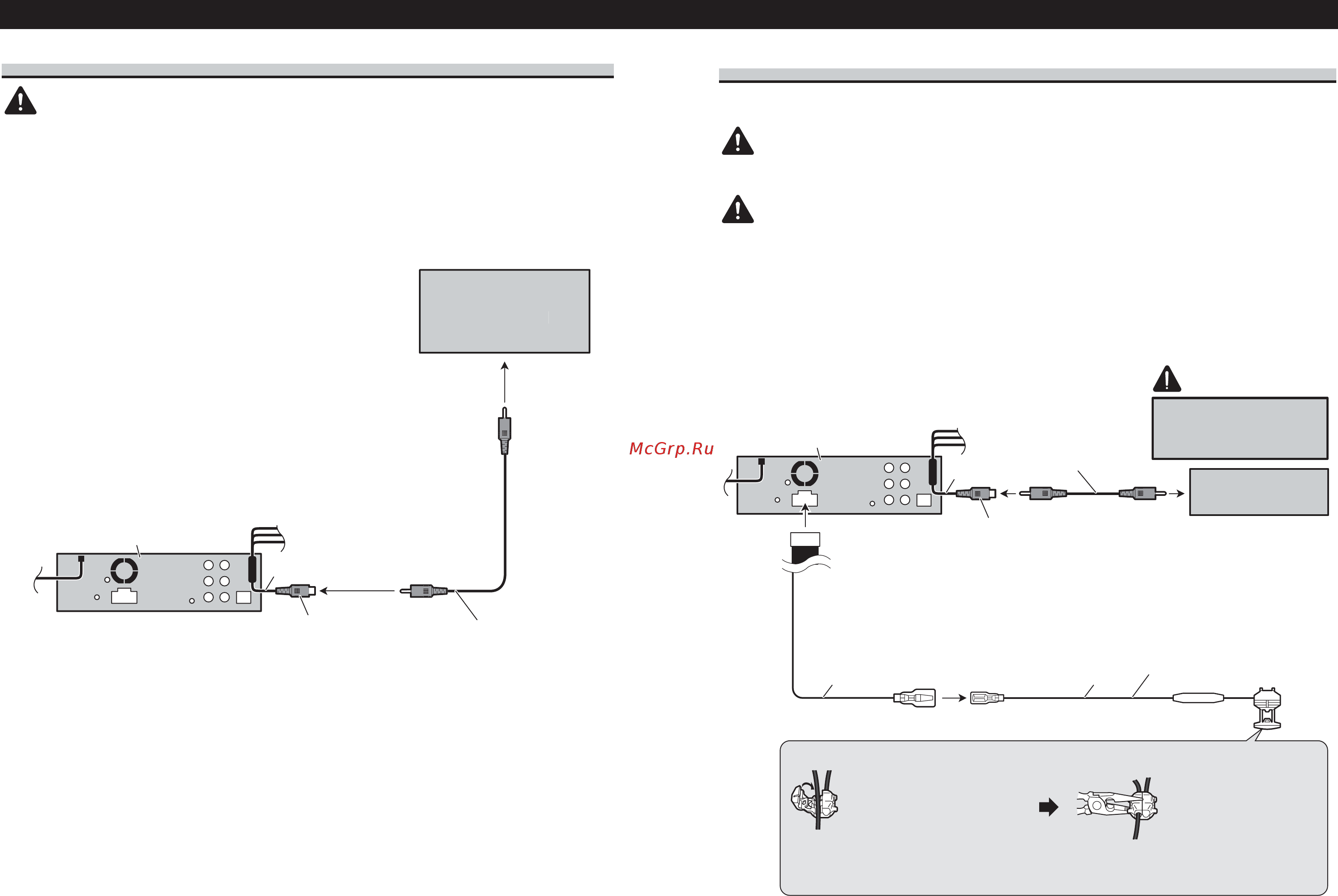

Connecting the Units <ENGLISH>
When using a display connected video outputs
WARNING
NEVER install the display in a location that enables the Driver to watch the DVD or Video CD
while Driving.
Di
s
pl
a
y
w
i
t
h
RCA
i
n
p
ut
j
ac
ks
To v
id
eo
i
n
p
u
t
R
C
A ca
bl
e
(
su
ppli
e
d
)
1.
5
m
Video output
(VIDEO OUTPUT)
This product
15 cm
When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch
from the video to rear view image when the gear shift is moved to REVERSE (R).
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to use this product as an aid to keep an eye on trailers, or backing into a
tight parking spot. Do not use this function for entertainment purposes.
• The object in rear view may appear closer or more distant than in reality.
CAUTION
You must use a camera
which outputs mirror
reversed images.
Rear view camera
RCA cable
(sold separately)
To video output
Extension lead (supplied)
Fuse resistor
Connection method
Note:
It is necessary to set VIDEO IN to CAMERA in initial settings when connecting the rear view
camera.
2. Clamp firmly with
needle-nosed
pliers.
1. Clamp the lead.
8 m
15 cm
Video input
(VIDEO INPUT or REAR
VIEW CAMERA INPUT)
Violet/white
Of the two lead wires connected to the back lamp, connect the one in
which the voltage changes when the gear shift is in the REVERSE (R)
position. This connection enables the unit to sense whether the car is
moving forwards or backwards.
This product
15 cm
