8.3 Main board Code designation
●　1 means factory test mode
●　0 means add. auto searching mode
(default setting)
●　1 means factory test mode
●　0 means AC fan Is chosen
●　00 means DC fan static pressure is 0
(reserved)
●　01 means DC fan static pressure is 1
(reserved)
●　10 means DC fan static pressure is 2
(reserved)
●　11 means DC fan static pressure is 3
(reserved)

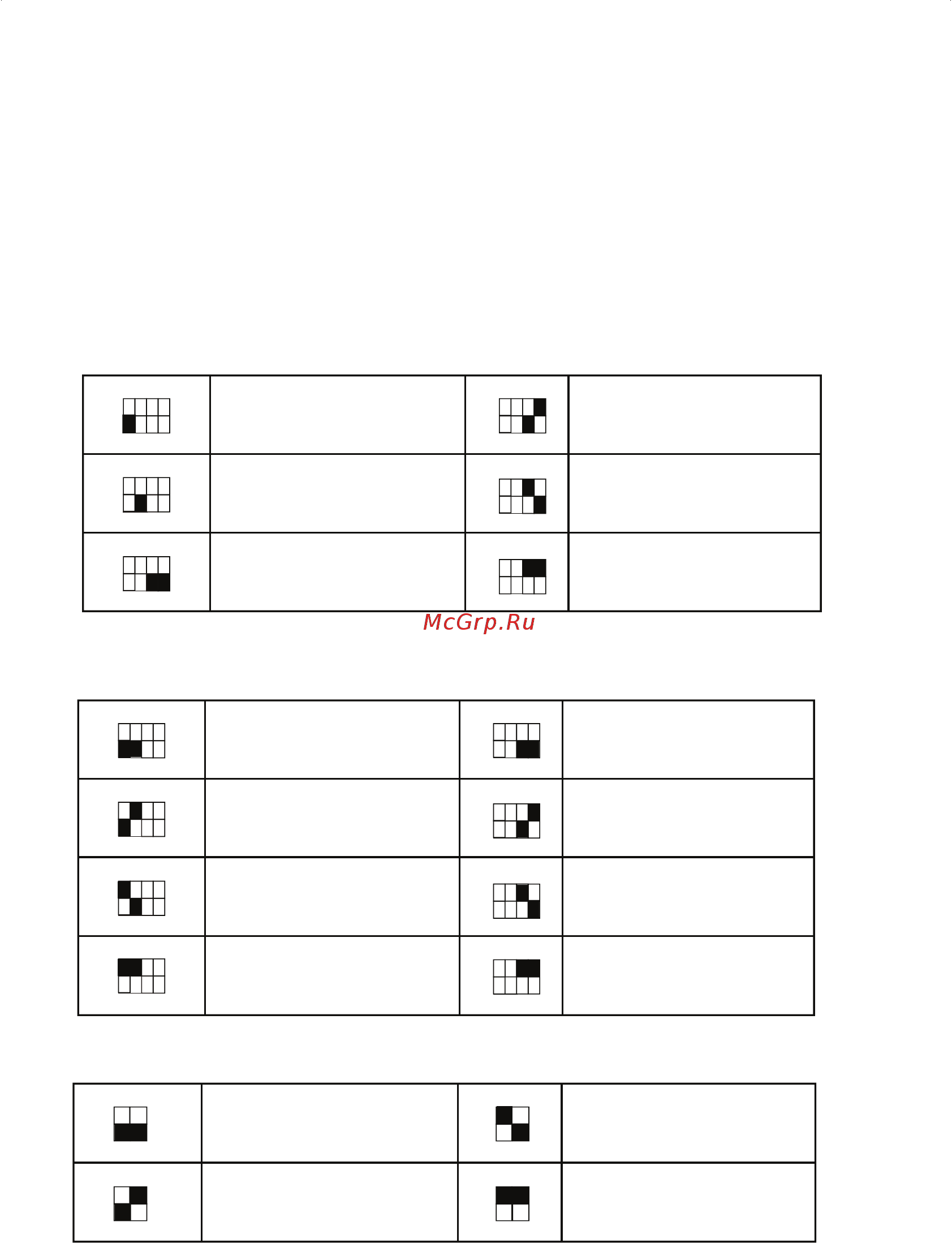

１２３４
ＳＷ１
ＯＮ
１２３４
ＳＷ１
ＯＮ
１２３４
ＳＷ１
ＯＮ
１２３４
ＳＷ１
ＯＮ
１２３４
ＳＷ１
ＯＮ
１２３４
ＳＷ１
ＯＮ
ＳＷ１　definition
●　00 means the temperature is 15
degrees when shutting down the unit
for cold wind proof.
●　01 means the temperature is 20
degrees when shutting down the
unit for cold wind proof.
●　10 means the temperature is 24
degrees when shutting down the
unit for cold wind proof.
●　11 means the temperature is 26
degrees when shutting down the
unit for cold wind proof.
●　00 means the time of stopping
TERMAL fan is 4 minutes
●　01 means the time of stopping
TERMAL fan is 8 minutes
●　10 means the time of stopping
TERMAL fan is 12 minutes
●　11 means the time of stopping
TERMAL fan is 16 minutes
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
１２３４
ＳＷ２
ＯＮ
ＳＷ２　definition
● 00 means temperature compensation is
6 degrees under heating mode
●　10 means temperature compensation
is 4 degrees under heating mode
●　11 means temperature compensation
is 8 degrees under heating mode
●　01 means temperature compensation is
2 degrees under heating mode
１　２
ＳＷ５
ＯＮ
１　２
ＳＷ５
ＯＮ
１　２
ＳＷ５
ＯＮ
１　２
ＳＷ５
ＯＮ
ＳＷ５　definition
●　1 means old display panel
●　0 means new display panel
●
　
1 means auto wind under auto mode
●
　
0 means auto wind under non auto mode
reserved
１　２　３
ＳＷ６
ＯＮ
１　２　３
ＳＷ６
ＯＮ
１　２　３
ＳＷ６
ＯＮ
ＳＷ６　definition
J1 no Jumpers means power
off memory function
J1 Jumpers means no power
off memory function
reserved
Ｊ１，Ｊ２　definition
Ｊ１
Ｊ１
Ｊ２










































