Carrier 42VH009H [13/14] J1 j2 definition
![Carrier 42VH009H [13/14] J1 j2 definition](/views2/1465290/page13/bgd.png)
13
17
installation manual
1 2
SW7
ON
1 2
SW7
ON
Standard configure
Last one in the network
SW7 definition
ON
ON
Means 0
Means 1
0/1 definition
9. TEST OPERATION
The test operation must be carried out after the entire
installation has been completed.
Please confirm the following points before the test operation:
2
1
According to the user's requirement, install the remote
controller frame where the remote controller's signal can
reach the indoor unit smoothly.
Test operation
4
3
The indoor unit and outdoor unit are installed properly.
Tubing and wiring are correctly completed.
The refrigerant pipe system is leakage-checked.
The drainage is unimpeded.
The heating insulation works well.
The ground wiring is connected correctly.
The length of the tubing and the added stow capacity of
the refrigerant have been recorded.
The power voltage fits the rated voltage of the air
conditioner.
There is no obstacle at the outlet and inlet of the outdoor
and indoor units.
The gas-side and liquid-side stop valves are both opened.
The air conditioner is pre-heated by turning on the power.
Set the air conditioner under the mode of "COOLING" with the
remote controller, and check the following points. If there is
any malfunction, please resolve it according to the chapter
"Troubleshooting" in the "Owner's Manual".
1) The indoor unit
a. Whether the switch on the remote controller works well.
b. Whether the buttons on the remote controller works
well.
c. Whether the air flow louver moves normally.
d. Whether the room temperature is adjusted well.
e. Whether the indicator lights normally.
f. Whether the temporary buttons works well.
g. Whether the drainage is normal.
2) The outdoor unit
a. Whether there is vibration or abnormal noise during
operation.
b. Whether the generated wind, noise, or condensed of by
the air conditioner have influenced your neighborhood.
c. Whether any of the refrigerant is leaked.
CAUTION
A protection feature prevents the air conditioner from being
activated for approximately 3 minutes when it is restarted
immediately after shut off.
h. Whether there is vibration or abnormal noise during
operation.
I. Whether the air conditioner heats well in the case of
the HEATING/COOLING type.
17
installation manual
1 2
SW7
ON
1 2
SW7
ON
Standard configure
Last one in the network
SW7 definition
ON
ON
Means 0
Means 1
0/1 definition
9. TEST OPERATION
The test operation must be carried out after the entire
installation has been completed.
Please confirm the following points before the test operation:
2
1
According to the user's requirement, install the remote
controller frame where the remote controller's signal can
reach the indoor unit smoothly.
Test operation
4
3
The indoor unit and outdoor unit are installed properly.
Tubing and wiring are correctly completed.
The refrigerant pipe system is leakage-checked.
The drainage is unimpeded.
The heating insulation works well.
The ground wiring is connected correctly.
The length of the tubing and the added stow capacity of
the refrigerant have been recorded.
The power voltage fits the rated voltage of the air
conditioner.
There is no obstacle at the outlet and inlet of the outdoor
and indoor units.
The gas-side and liquid-side stop valves are both opened.
The air conditioner is pre-heated by turning on the power.
Set the air conditioner under the mode of "COOLING" with the
remote controller, and check the following points. If there is
any malfunction, please resolve it according to the chapter
"Troubleshooting" in the "Owner's Manual".
1) The indoor unit
a. Whether the switch on the remote controller works well.
b. Whether the buttons on the remote controller works
well.
c. Whether the air flow louver moves normally.
d. Whether the room temperature is adjusted well.
e. Whether the indicator lights normally.
f. Whether the temporary buttons works well.
g. Whether the drainage is normal.
2) The outdoor unit
a. Whether there is vibration or abnormal noise during
operation.
b. Whether the generated wind, noise, or condensed of by
the air conditioner have influenced your neighborhood.
c. Whether any of the refrigerant is leaked.
CAUTION
A protection feature prevents the air conditioner from being
activated for approximately 3 minutes when it is restarted
immediately after shut off.
h. Whether there is vibration or abnormal noise during
operation.
I. Whether the air conditioner heats well in the case of
the HEATING/COOLING type.
16
installation manual
8.3 Main board Code designation
● 1 means factory test mode
● 0 means add. auto searching mode
(default setting)
● 1 means factory test mode
● 0 means AC fan Is chosen
● 00 means DC fan static pressure is 0
(reserved)
● 01 means DC fan static pressure is 1
(reserved)
● 10 means DC fan static pressure is 2
(reserved)
● 11 means DC fan static pressure is 3
(reserved)
1234
SW1
ON
1234
SW1
ON
1234
SW1
ON
1234
SW1
ON
1234
SW1
ON
1234
SW1
ON
SW1 definition
● 00 means the temperature is 15
degrees when shutting down the unit
for cold wind proof.
● 01 means the temperature is 20
degrees when shutting down the
unit for cold wind proof.
● 10 means the temperature is 24
degrees when shutting down the
unit for cold wind proof.
● 11 means the temperature is 26
degrees when shutting down the
unit for cold wind proof.
● 00 means the time of stopping
TERMAL fan is 4 minutes
● 01 means the time of stopping
TERMAL fan is 8 minutes
● 10 means the time of stopping
TERMAL fan is 12 minutes
● 11 means the time of stopping
TERMAL fan is 16 minutes
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
1234
SW2
ON
SW2 definition
● 00 means temperature compensation is
6 degrees under heating mode
● 10 means temperature compensation
is 4 degrees under heating mode
● 11 means temperature compensation
is 8 degrees under heating mode
● 01 means temperature compensation is
2 degrees under heating mode
1 2
SW5
ON
1 2
SW5
ON
1 2
SW5
ON
1 2
SW5
ON
SW5 definition
● 1 means old display panel
● 0 means new display panel
●
1 means auto wind under auto mode
●
0 means auto wind under non auto mode
reserved
1 2 3
SW6
ON
1 2 3
SW6
ON
1 2 3
SW6
ON
SW6 definition

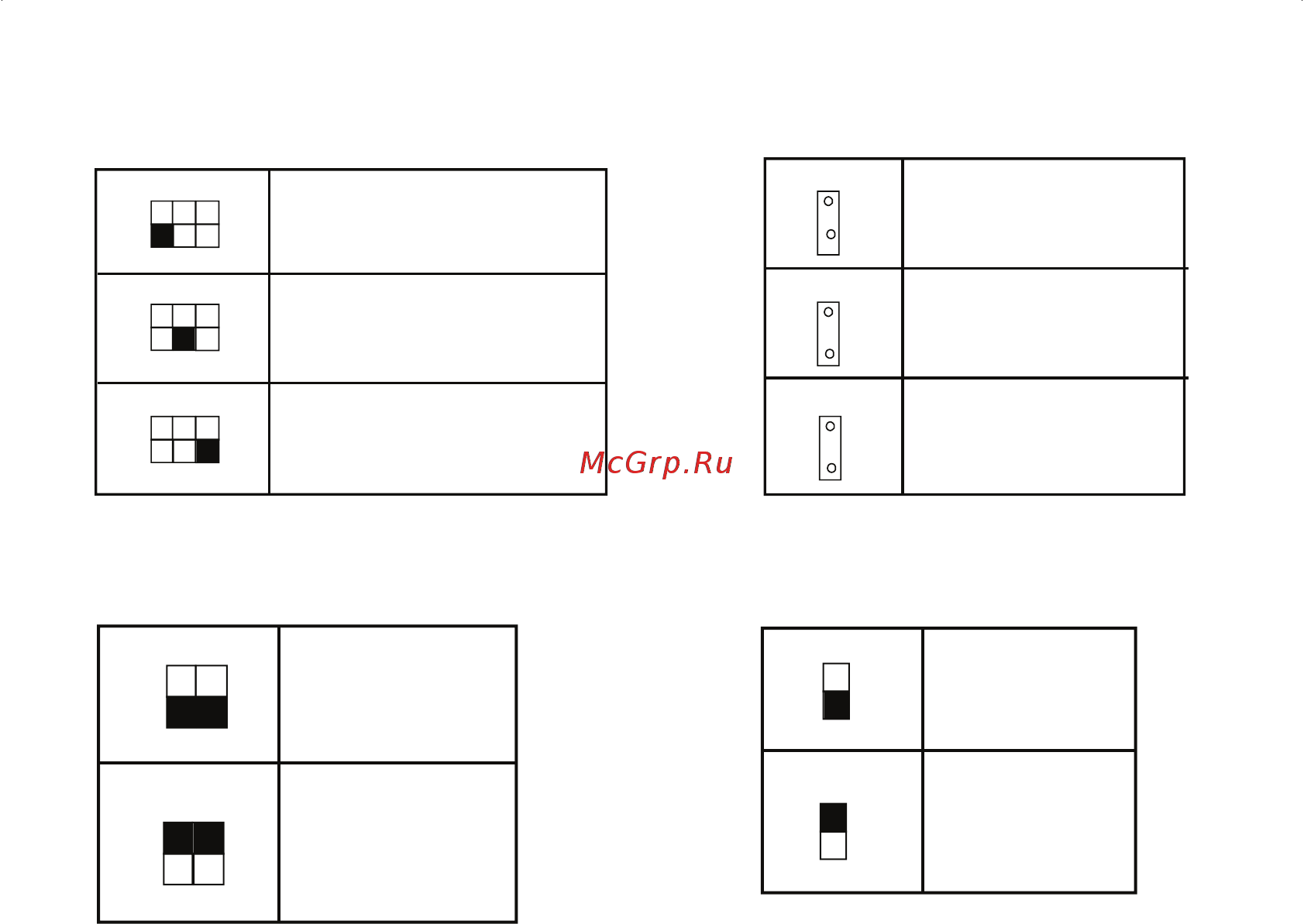

J1 no Jumpers means power
off memory function
J1 Jumpers means no power
off memory function
reserved
J1,J2 definition
J1
J1
J2
DIP-ключи SW6
DIP-ключи SW7 Обозначение положения ключей 0/1
Переключатели J1, J2
Содержание
- Инструкция по установке 1
- Меры предосторожности 2
- Содержание 2
- Выберите подходящее место 3
- Выполните электрические соединения 3
- Для правильного монтажа системы обязательно ознакомь тесь с инструкцией по монтажу установка кондиционера должна выполняться квали фицированным персоналом при монтаже внутреннего блока и соединительных труб необходимо строго следовать указаниям инструкции если кондиционер устанавливается на металлическую поверхность необходимо обеспечить его изоляцию по стандартам электрического оборудования по завершении монтажных работ тщательно проверь те все электрические соединения и только после этого включайте кондиционер 3
- Подсоедините дренажную трубу 3
- Порядок монтажа 3
- Предупреждение 3
- Проверьте работу системы 3
- Рекомендации по монтажу 3
- Смонтируйте трубопровод хладагента 3
- Установите внутренний блок 3
- Установите наружный блок 3
- Комплект поставки 4
- Для блоков 22 28 36 для блоков 22 28 36 для 45 56 71 5
- Монтаж внутреннего блока 5
- Монтажная пластина 5
- Установите монтажную пластину учитывая размещение внутреннего блока в случае если стены из кир пича бетона или других аналогичных материалов просверлите в стене отверстия 5мм вставьте в отвер стия дупеля и закрепите монтажную пластину прилагаемыми винтами 5
- Внимание 8
- Монтаж трубопроводов хладагента 8
- Предупреждения 8
- Электрические подключения 9
- В зависимости от особенностей применения системы кондиционирования необходимо выставить в нужное положение переключатели имеющиеся на печатной плате в блоке управления внутреннего блока настройки производятся при отключенном электропитании с помощью сетевого размыкателя 10
- После того как настройки завершены снова включите электропитание если отключение питания не произошло настройки не вступят в силу 10
- Снимите лицевую панель внутреннего блока затем дисплей с платы управления внутреннего блока 10
- Схема расположения контактов подключение соединительных кабелей выполняется в соответствии с электрическими схемами прилага емыми к внутреннему блоку электропитание блока осуществляется от однофазной сети 10
- Схема соединения 10
- Dip ключи sw1 12
- Dip ключи sw2 12
- Dip ключи sw5 12
- Main board code designation 12
- Sw2 on 12
- Sw6 on 12
- Для предварительного управления внутренними блоками сеть может быть создана через контакты x y e в этом случае нет необходимости устанавливать сетевые адреса сеть также может быть орга низована посредством внешнего сетевого модуля и главной платы cn20 12
- Коды главной платы 12
- Сетевой адрес устанавливает связь внутреннего блока с наружным адрес такой же как и адрес вну треннего блока нет необходимости устанавливать его отдельно 12
- Установка сетевого адресного кода 12
- Центральное управление внутренними блоками может быть сделано на наружном блоке не нужно управлять внутренним блоком отдельно 12
- Caution 13
- J1 j2 definition 13
- Sw1 definition 13
- Sw1 on 13
- Sw2 definition 13
- Sw2 on 13
- Sw5 definition 13
- Sw5 on 13
- Sw6 definition 13
- Sw6 on 13
- Sw7 on 13
- Test operation 13
- Пробный запуск 14
