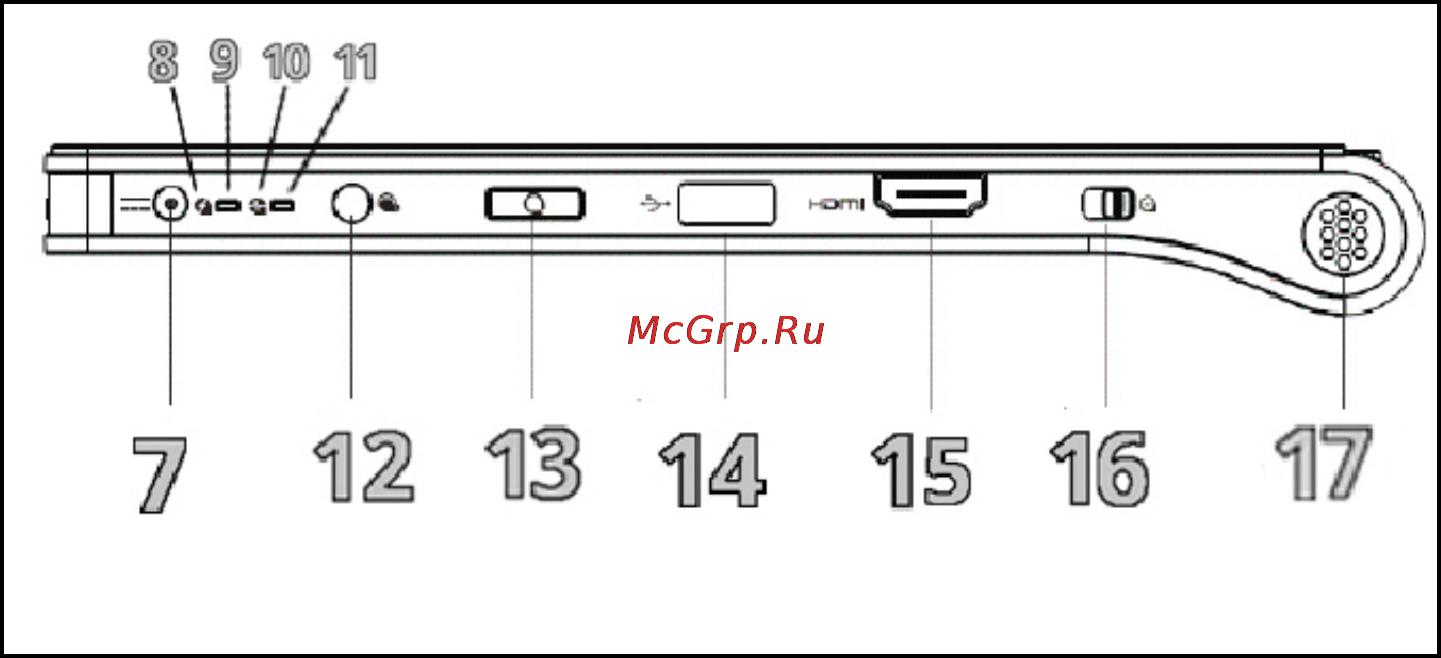

Notion Ink ADAM User Manual: Device

7. Power Port:

This port is for the Adapter to be plugged in to charge the device.

8. CPU Indicator Icon:

This icon represents the power port.

9. CPU Indicator LED:

The CPU indicator LED blinks in Orange while processing. When

the CPU indicator and the Power indicator are in solid orange and red the Adam is in Recovery

Mode.

10. Battery Indicatior Icon:

This icon represents the power indicator.

11. Battery Indicator LED:

This power indicator LED indicates the 4 states of the battery.

Purple when fully charged, blinkinh blue while charging, blinking red when low on power (less

than 15%).

12. Headphone Jack:

The head phone jack can be used to plug-in any 3.5mm or 2.55 m au-

dio jack to be used. Plugging in a audio jack will disable audio output from the built in speakers.

13. Back Button:

The ‘Back‘ button is similar to the Touch snesitive Back Button on the face

of the display. This is a tactile button with the same functionality as the touch back button.

14. USB Port:

This is a USB 2.0 port. Devices like USB Drives, Speakers, Keyboard or mouse

can be connected.

15. HDMI Port:

This is a HDMI out port. Through a HDMI cable Adam can be connected to

a HD TV or Monitor or any display with a HDMI in port.

16. Power ON/OFF:

Sliding the Power button will lock the screen and switch of the display.

Sliding and holding it will swithch OFF the device if the device is ON and will switch it ON if the

device is OFF.

17. Right Speaker:

This is the right side speaker. The audio from the device is outputed

through speakers while there is no audio jack plugged in.
