Pg:3

Notion Ink ADAM User Manual: Device

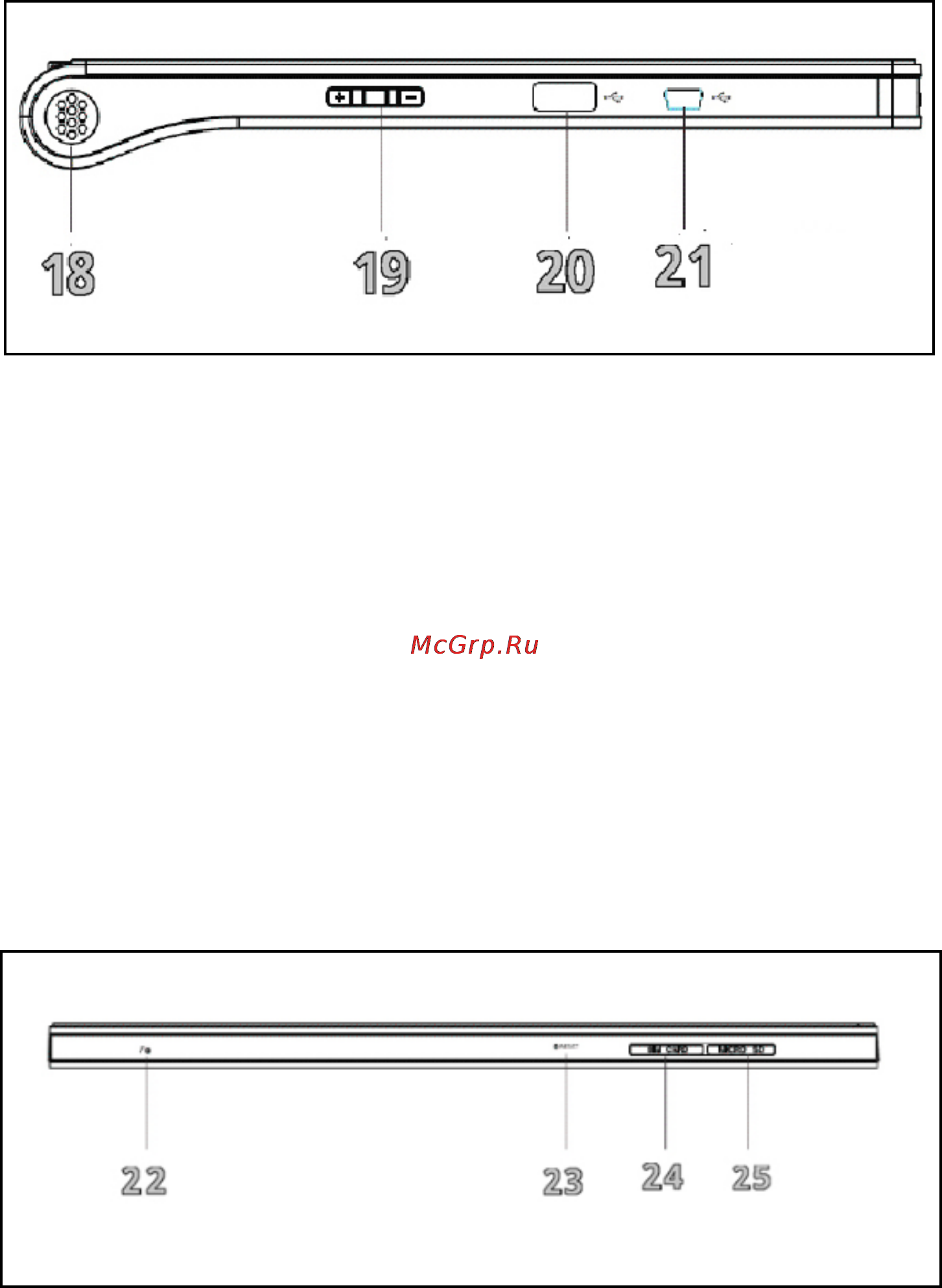

18. Left Speaker:

This is the left side speaker. The audio from the device is outputed

through speakers while there is no audio jack plugged in.

19. Volume Up/Down:

The volume up/down buttons can be used to adjest the volume of

the audio output. Long pressing the ‘+‘ will adjust volume to its maximum level, while long press-

ing ‘-‘ will mute the device audio output.

20. USB Port:

This is a USB 2.0 port. Devices like USB Drives, Speakers, Keyboard or mouse

can be connected.

21. Mini USB Port:

This is the Mini-USB port used to connect the device to a computer.

22. Microphone:

This is the microphone, which can be used for audio input while using

apps like Viceo Recorder and other voice chat features.

23. Reset Button:

This is the reset button, this can be pressed with a tiny pin. Pressing this

button will reset the device to factory settings. Caution: This might erase all data in Adam Memo-

ry.

24. SIM Card Slot:

This is the SIM card slot, and is present only on 3G capable devices. This

will allow a SIM Card provided by a mobile carier can be used to access internet after enabling

the Mobile Data under Wireless Settings.

25. microSD Slot:

This is the microSD slot, where microSD cards upto 64GB can be placed

to store and access data.
