9

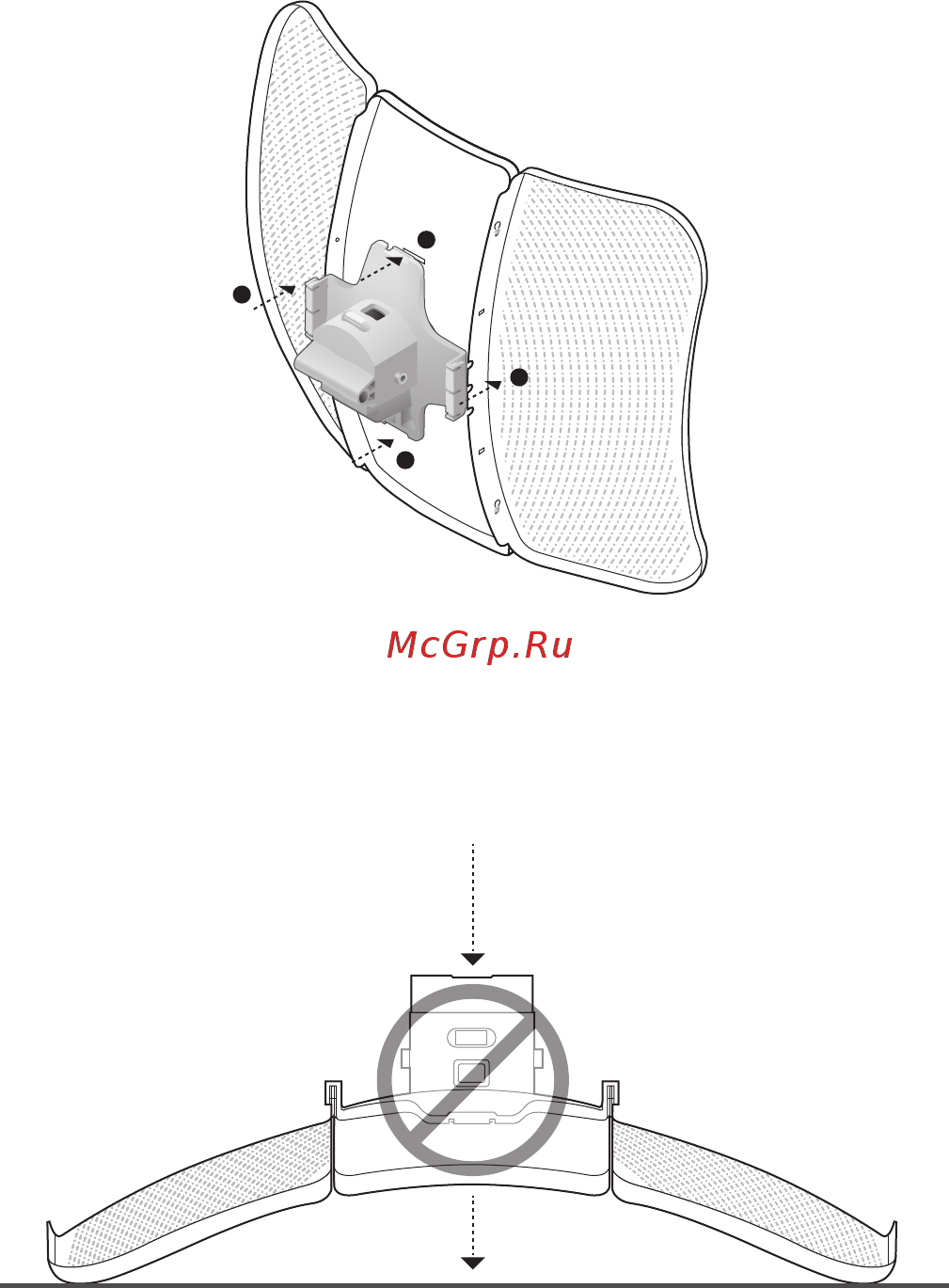

b. Attach the Rear Cover to the reflector assembly. Press upon
the Rear Cover at the four positions marked in the diagram
below in sequence until it locks into place.
WARNING: To avoid damage, do not place the panels on a flat
surface or push down on it.
1
2
4
3
