Tp-Link CPE610 V1 [5/32] Panel layout
![Tp-Link CPE610 V1 [5/32] Panel layout](/views2/1467706/page5/bg5.png)
3
On: A device is connected to the ETHERNET port,
but there is no activity.
Flashing: A device is connected to the
ETHERNET port and is active.
On: The CPE is powered on.

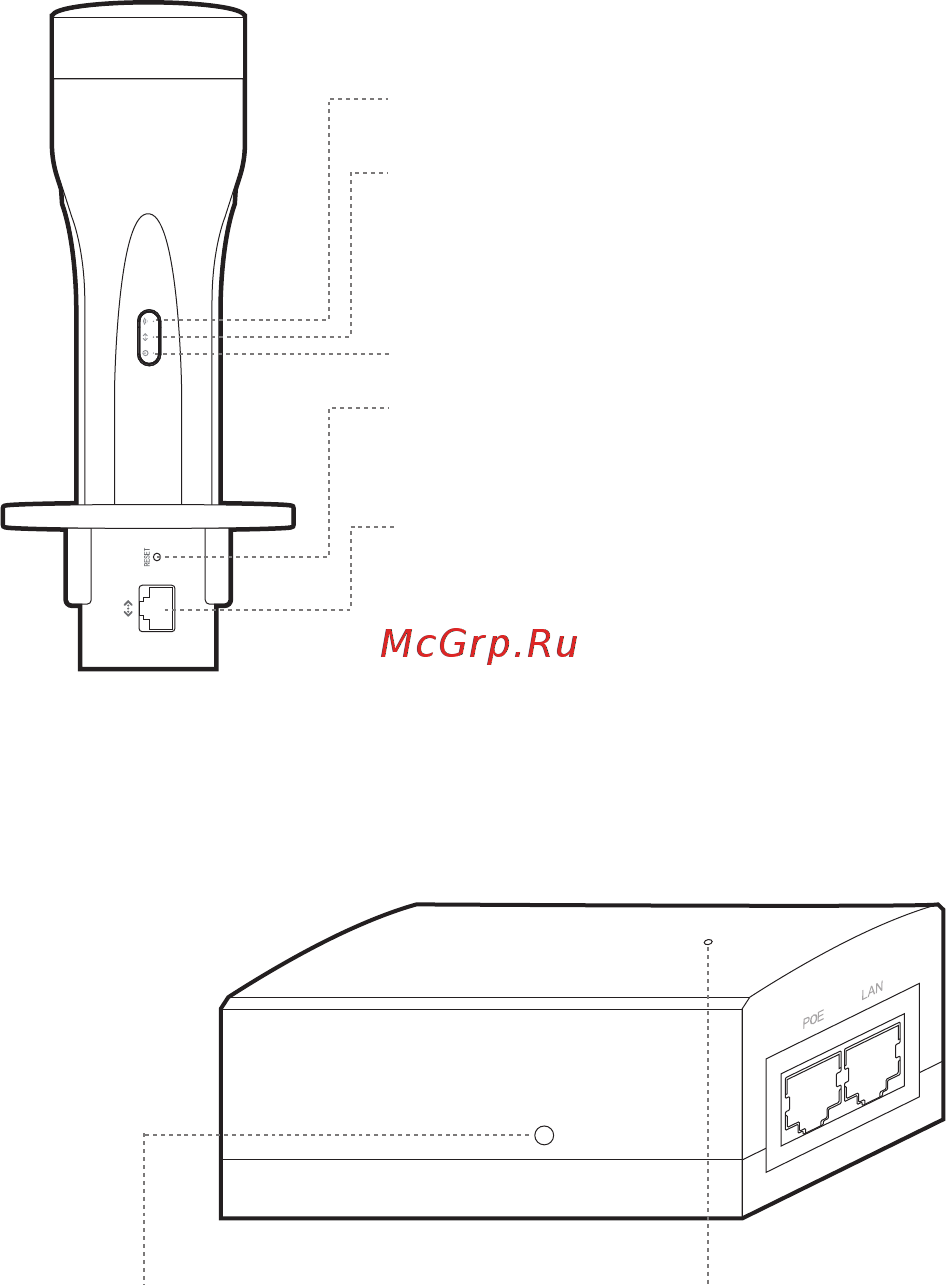

Panel Layout
On: The wireless function is enabled.
Passive PoE Adapter
Power LED
On: Power on.
Off: Power off.
Remote Reset
Press and hold for 5 seconds to reset the CPE
to its factory defaults.
RESET
Press and hold for 5 seconds to reset the CPE to
its factory defaults.
ETHERNET
The port is used to connect to the POE port of
the provided PoE adapter for both data
transmission and power supply through Ethernet
cabling.
