Dahua DHI-ARD1231-W [3/7] Product installation

Product Installation

Warning:

 Installation and debugging must be executed by professional staff. If you encounter device

failure, please do not open and repair the device, you shall contact its after -sales

department.

 Avoid installation under direct sunlight.

 Avoid installation in environment of rapid change in wind speed.

 Avoid installation in places where the temperature is too high.

 Avoid installation in places with obstruction in the detection range of the device.

 Avoid installation in places with a large amount of metal objects.

Steps of installation:

Step 1. Take down installation bracket at the bottom of detector, see Figure 3- 1.

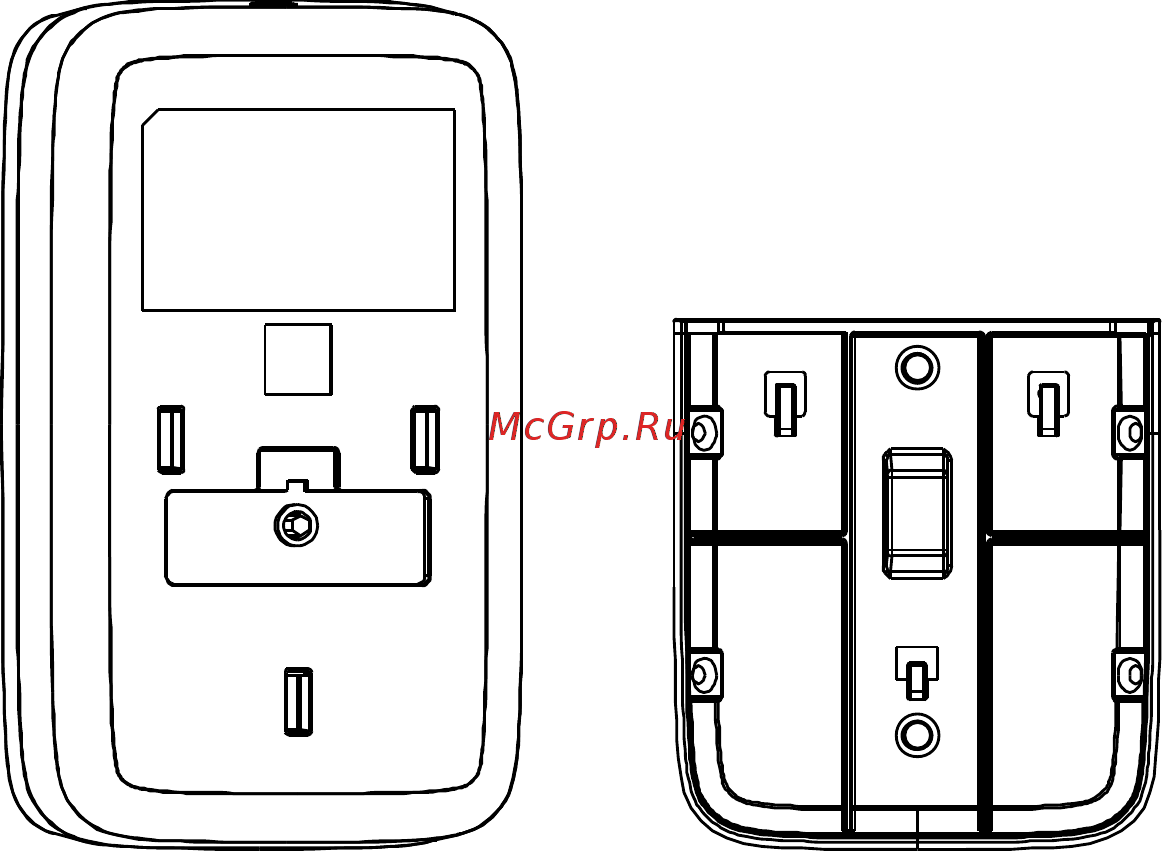

Figure 3- 1

Step 2. Dig through the wiring hole and fixing hole on installation bracket (for wall mount or

corner mount).

Step 3. For wall mount, installation bracket bottom is parallel to the wall. Fix it on wall with screw

via the hole on installation bracket, and hang device on hanger on installation bracket.

See Figure 3- 2.
