Chapter 2

Connect the Hardware

2. 2. 4. Multi-SSID Mode

In Multi-SSID mode, the access point creates multiple wireless networks to provide

different security and VLAN groups. This mode is suitable when you want your devices

connected to different wireless networks and become isolated by VLANs.

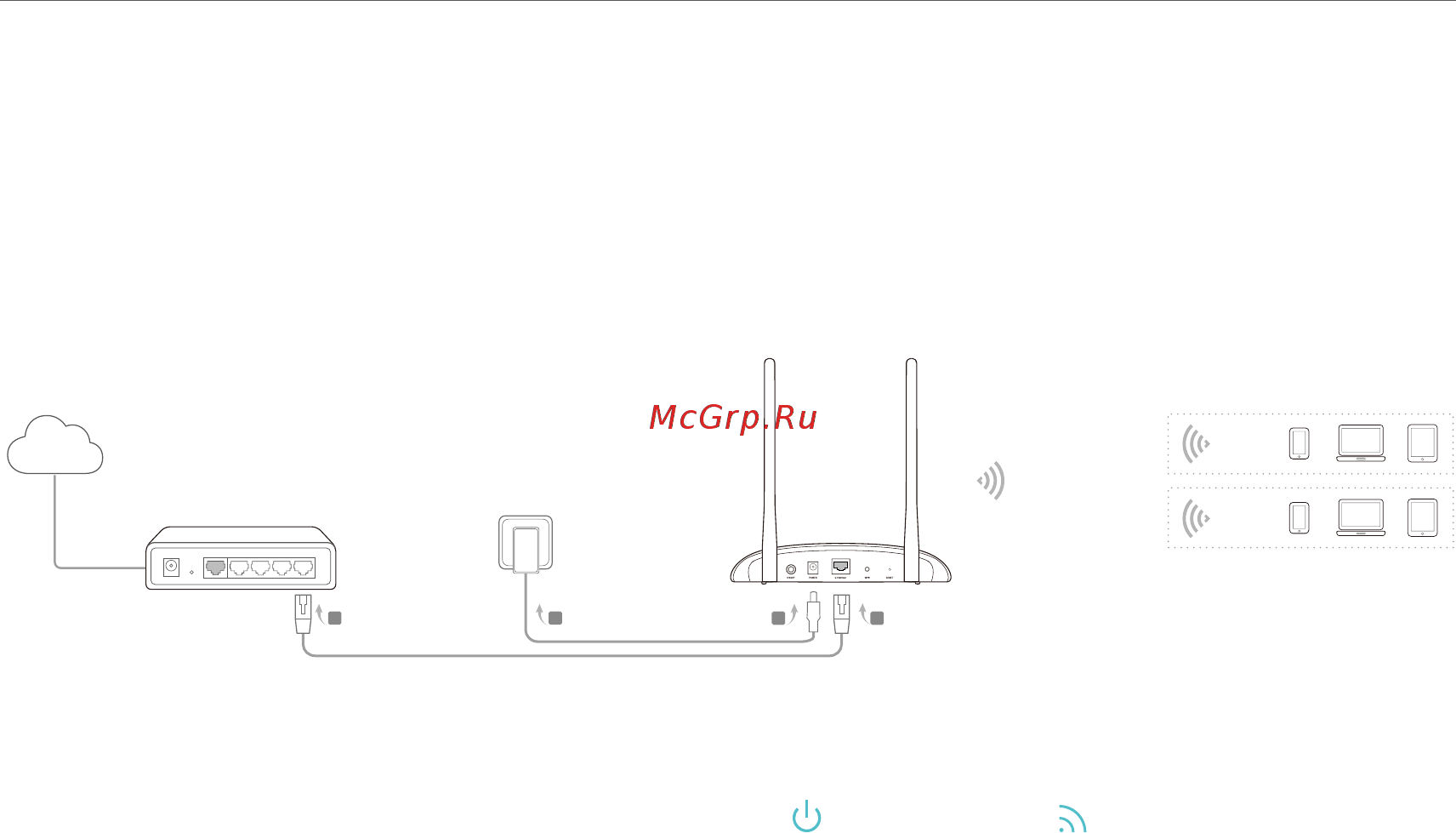

TL-WA801ND’s SSID

VLAN 2

VLAN 1

Wired Router

Internet

B D

1. Connect the access point according to Step A to D in the diagram.

2. Power on the access point, wait until the Power (

) and Wireless ( ) LEDs are lit and stable,

and use the default SSID and Password printed on the label of the access point to join its

Wi-Fi network.
