LAUNCH CRP229

User's Manual

: To save the current data in text format.

: To save the current data in screenshot form.

Tap

to return to the function selection screen.

5.5.2 Clear trouble code

Tap “Clear trouble code” function menu, the system will automatically

delete the currently existing trouble code.

Note: The trouble code will not disappear until the trouble was

completely cleared.

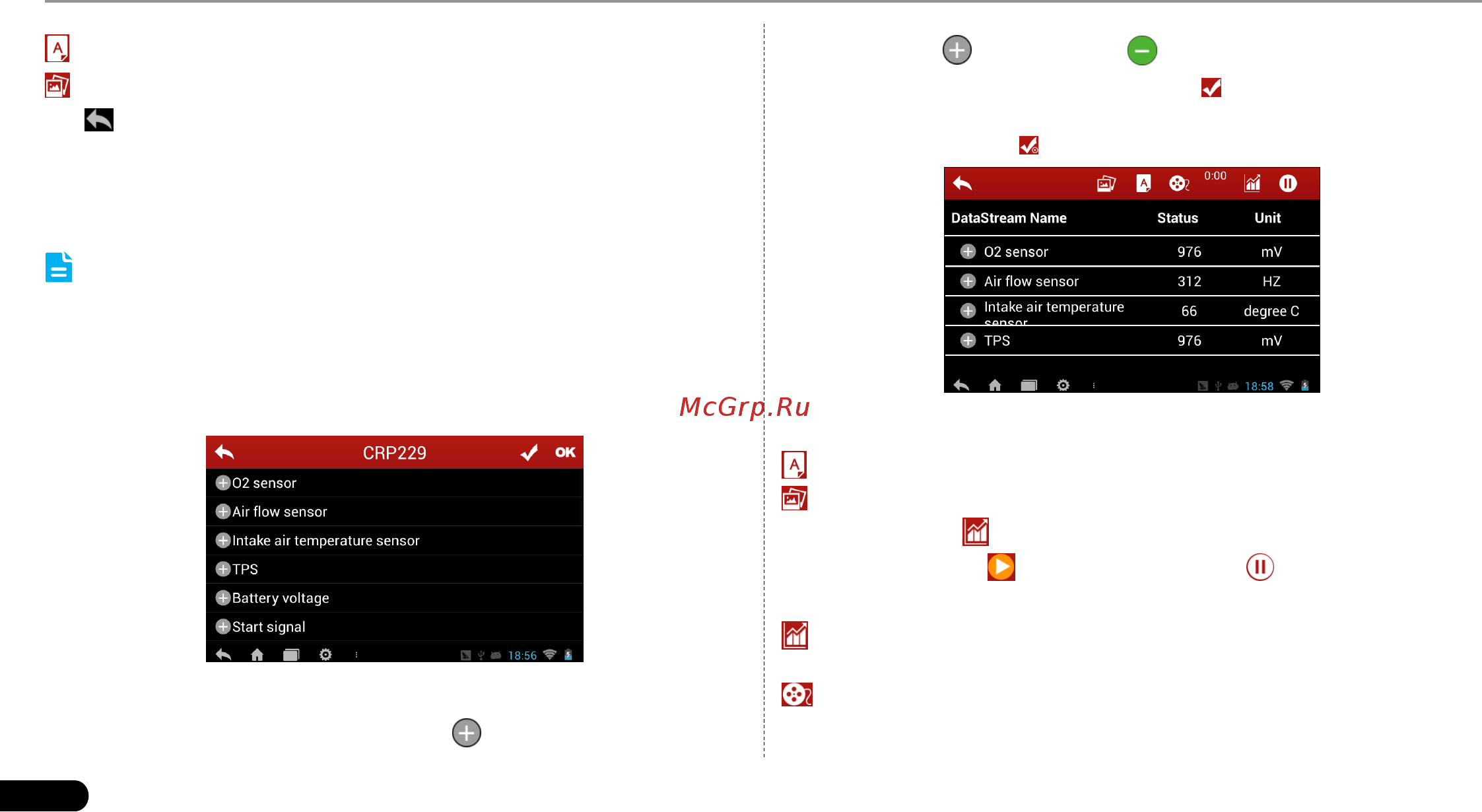

5.5.3 Read data stream

Tap “Read data stream” in function menu, the system will display data

stream items.

Fig. 5-16

To select certain data stream item, just tap

, then the selected item will

be activated and

will change into .

To select all items of the current screen, tap

, and then tap “OK” to enter

data stream reading interface. See Fig. 5-17.

To deselect all items, tap

Fig. 5-17

: To save the current data in text format.

: To save the current data in screenshot form.

After selecting, tap

, the system will display data changes in waveform.

To start to record, tap

; To stop recording, click .

On data stream reading page, the following operations can be done:

: Tap to select the desired datastream to be browsed, and then tap it to

view the waveform.

: Tap to start recording diagnostic data for future playback and view.

The saved le follows the naming rule: It begins with vehicle type, and then

the record starting time and ends with .x431 (To differentiate between les,
