Gigabyte GA-880GM-USB3 (rev. 3.1) [23/100] 8 internal connectors

- 23 - Hardware Installation

1-8 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the

power cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

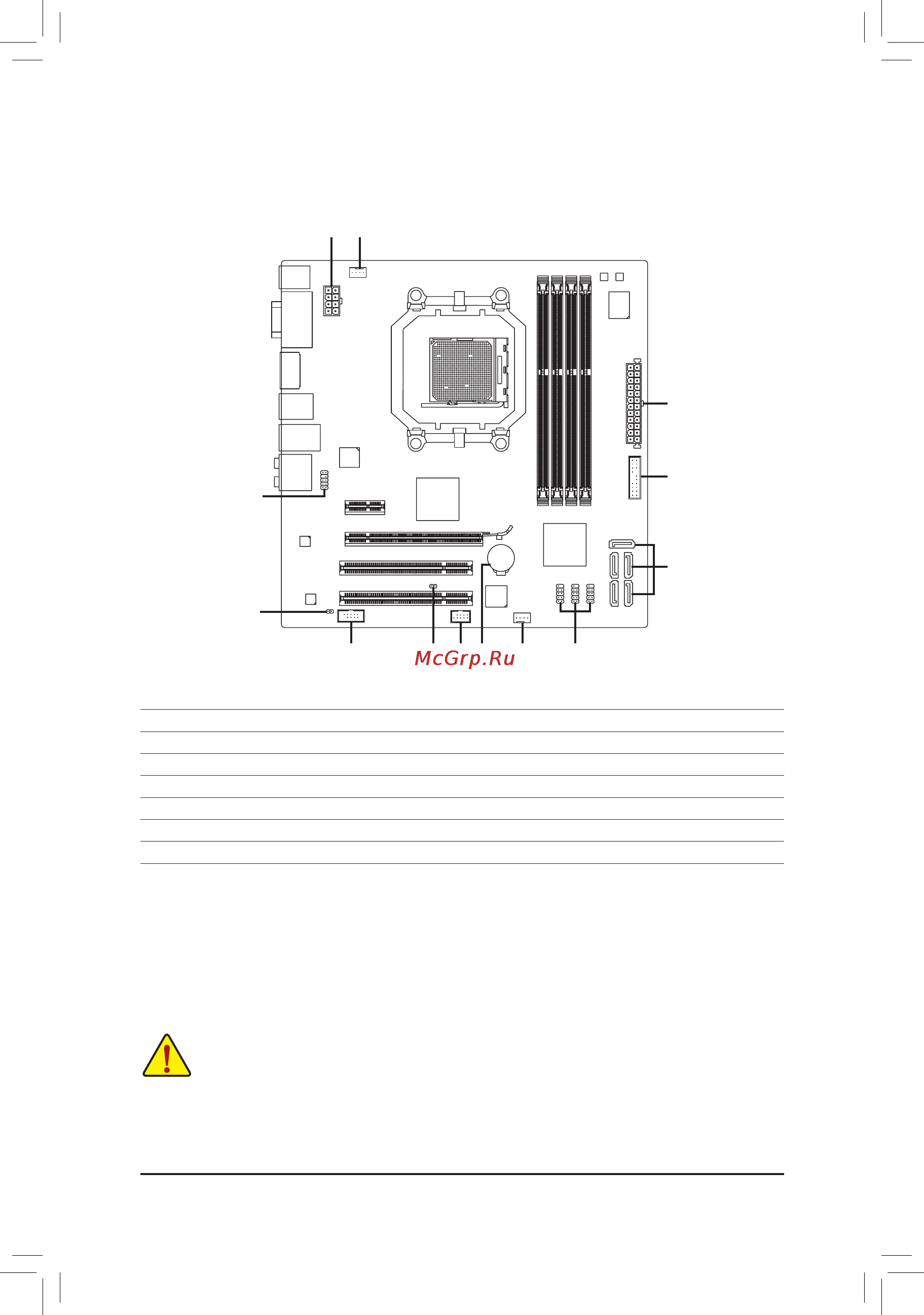

1 3

13 5 12 7 4 11

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN

5) CLR_CMOS

6) SATA2_0/1/2/3/4

7) BAT

8) F_PANEL

9) F_AUDIO

10) SPDIF_O

11) F_USB1/F_USB2/F_USB3

12) F_1394_1

13) COM
