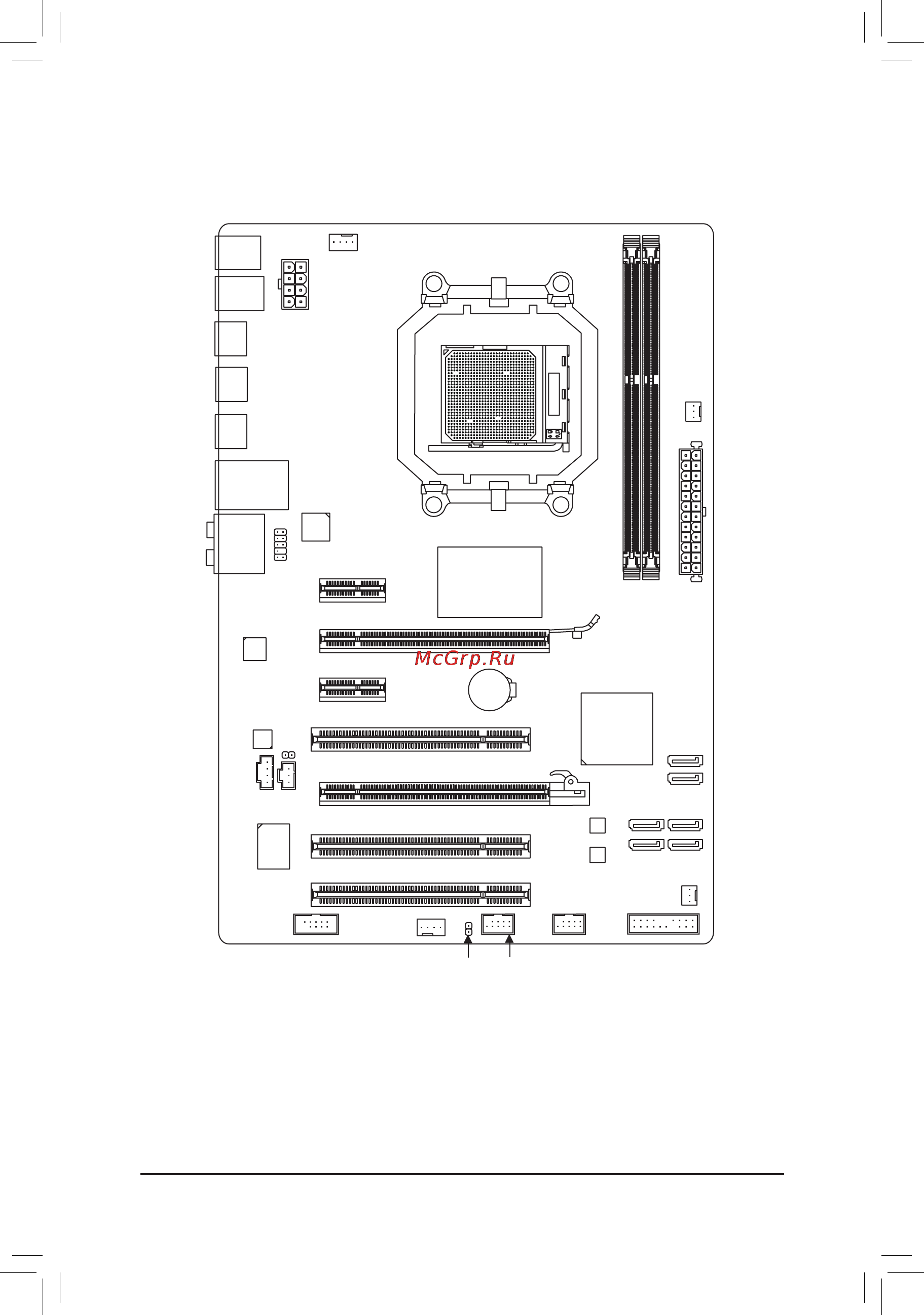

GA-870A-USB3L Motherboard Layout

KB_USB

CPU_FAN

ATX

GA-870A-USB3L

CD_IN

F_AUDIO

AUDIO

SPDIF_IN

PCIEX1_1

DDR3_1

ATX_12V

AMD 870

AMD SB850

SATA3_3

SATA3_0

SATA3_4

SATA3_2SATA3_1

PCI1

CODEC

PCI2

CLR_CMOS

BAT

M_BIOS

F_PANEL

COMA

B_BIOS

SYS_FAN1

PCIEX16

F_USB1

F_USB2

DDR3_2

RCA_SPDIF

USB_LAN

R_USB2

R_USB1

R_USB3

PCIEX1_2

PCI3

SPDIF_OUT

SATA3_5

SYS_FAN2

PWR_FAN

PCIEX4

Realtek

RTL8111E

iTE

IT8720

Etron

EJ168

Socket AM3+/AM3
